SAFARI

ELECTRICALS

Fig. 18

Fig. 17

Fig. 19

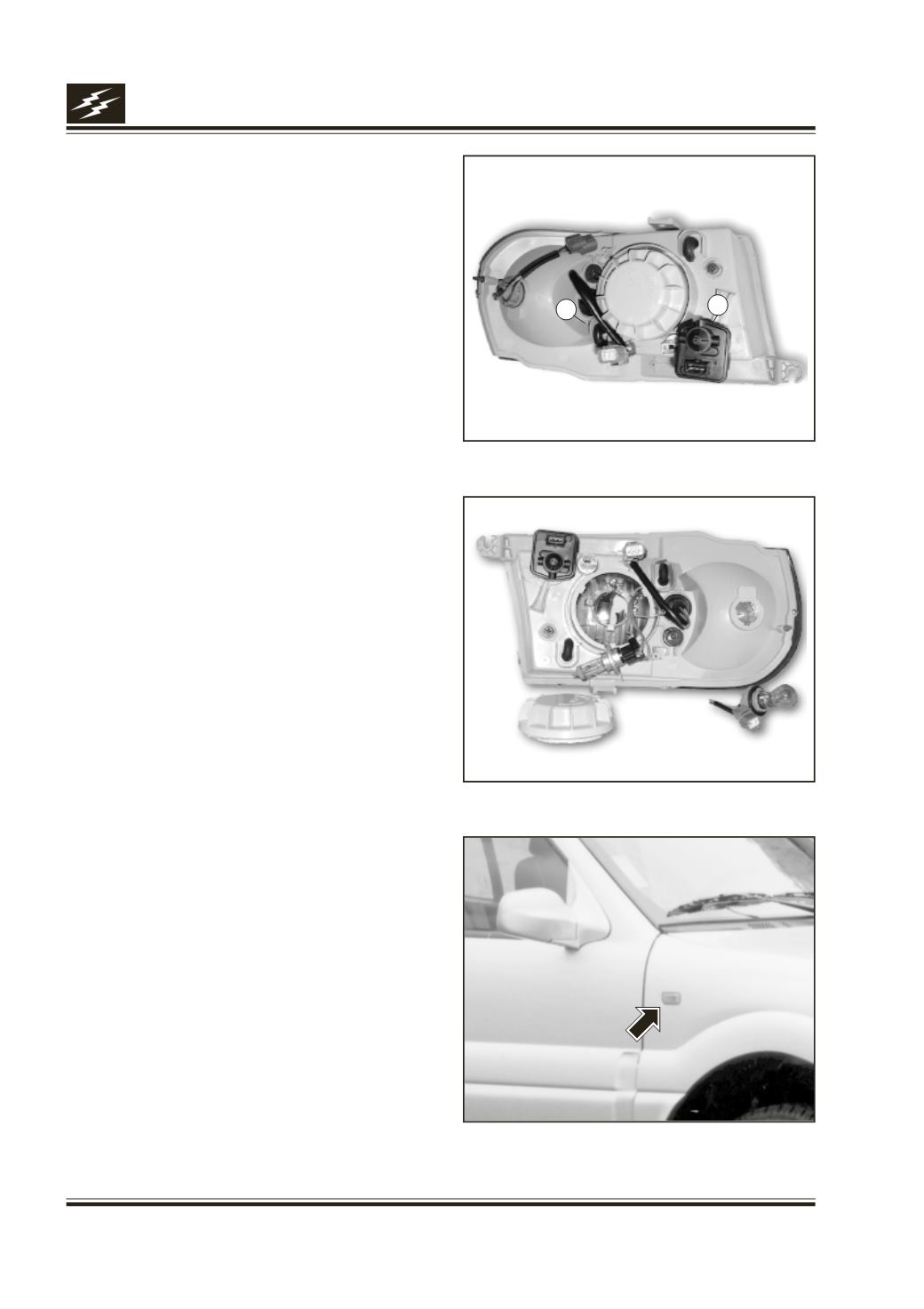

Head Lamp Bulb Replacement Fig. 17 & 18

Raise the bonnet of the vehicle. Unscrew & pull out the

rear protective cover. Pull out the cable socket from the

bulb. Remove locking lever holding the bulb and remove

the bulb.

Install new bulb, properly locating it in the housing. Fit

back the locking lever cable socket and cap.

Realign Head Lamp after Replacing Bulb

Do not clean or touch the reflector as it will damage the

mirror finish of the surface.

Your vehiclehashalogenhead lampbulbandpencil beam

bulb one each on each side. When replacing, handle it by

steel base. Protect the glass from contact with your skin

or hard object. If you touch glass, clean it with denatured

alcohol and clean cloth.

Note :

Halogen head lamp bulbs get very hot when lit. Oil,

preparation or a scratch on the glass can cause the

bulb to overheat and shatter.

Side Repeater Lamps :

Removal :

Use a small screw driver to push in and release the catch

and take out the lamp. Fig. 19

Pull out the 2 pole connector and take out the lamp

Fitment :

Connect the twopole connector and insert the lamp into

the cutout and press till the catches hold.
