4 DLT ENGINE
L

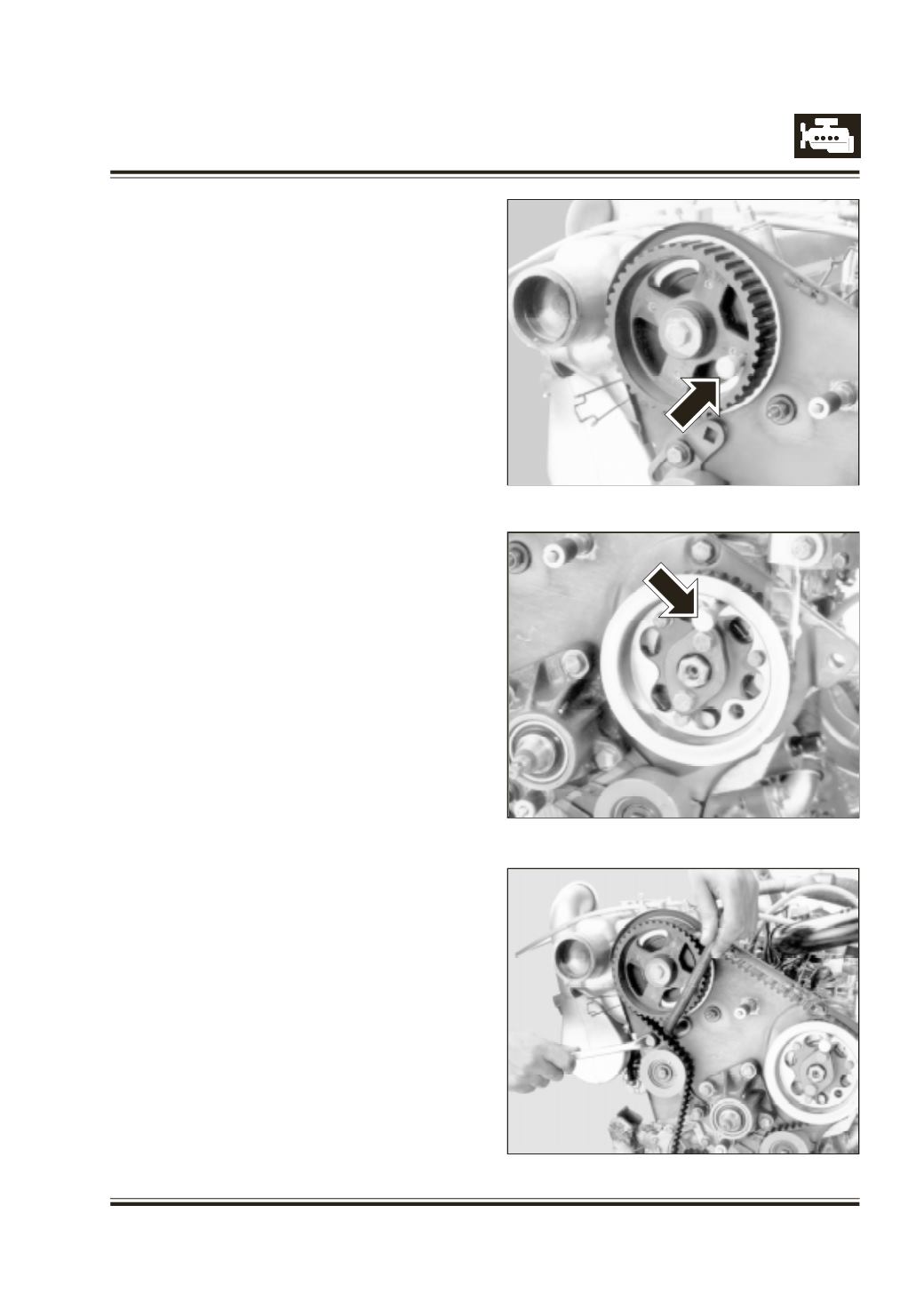

ock camshaft gear with timing bolt 2654 5890 05 02
Refer Figure 143
T
his will ensure compression T.D.C. position of 1
st
piston.
L
ock FIP gear with timing bolt, 2654 5890 05 02 Refer
Figure 144
U
sing drive square pt no. 2654 5890 0510 move
tensioner roller and tighten bolt.
I
nstall timing belt over crank shaft gear. Keep it
stretched and slip over idler roller, fuel injection pump
gear, camshaft gear tensioner roller and water pump
gear.
L
oosen locking bolt slightly and after roller exerts
tension on timing belt, tighten bolt fully. Refer
Figure 145
Fig. 143
Fig. 144
Fig. 145
