GEAR BOX G-76
Loosen nyloc nuts and washer of extension arm
support bracket and take it out.
Remove the clutch slave cylinder from the clutch
housing by removing the nuts form the slave cylinder.
Take care that the pipes of the slave cylinder do not
twist or get damaged. The procedure for removal of
clutch slave cylinder is given in the clutch section.
Remove the center link by removing the castle nuts of
the idler arm between the center link and the tie rods
on both the sides. Slide the tie rods properly so that
they do not get damaged. Proper collect the washers,
bush in a clean place.

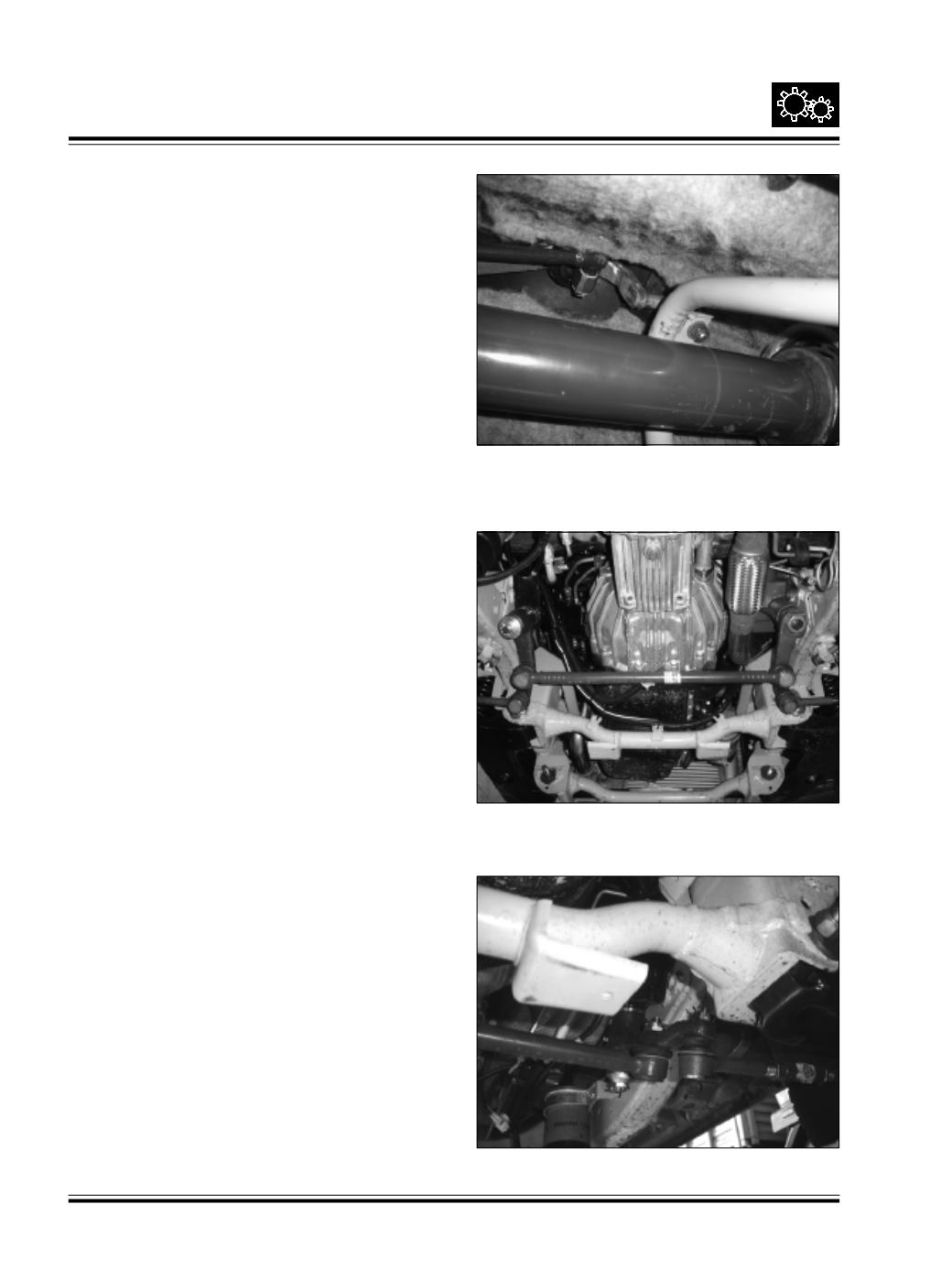

Fig. 07
Fig. 08
Fig. 09
