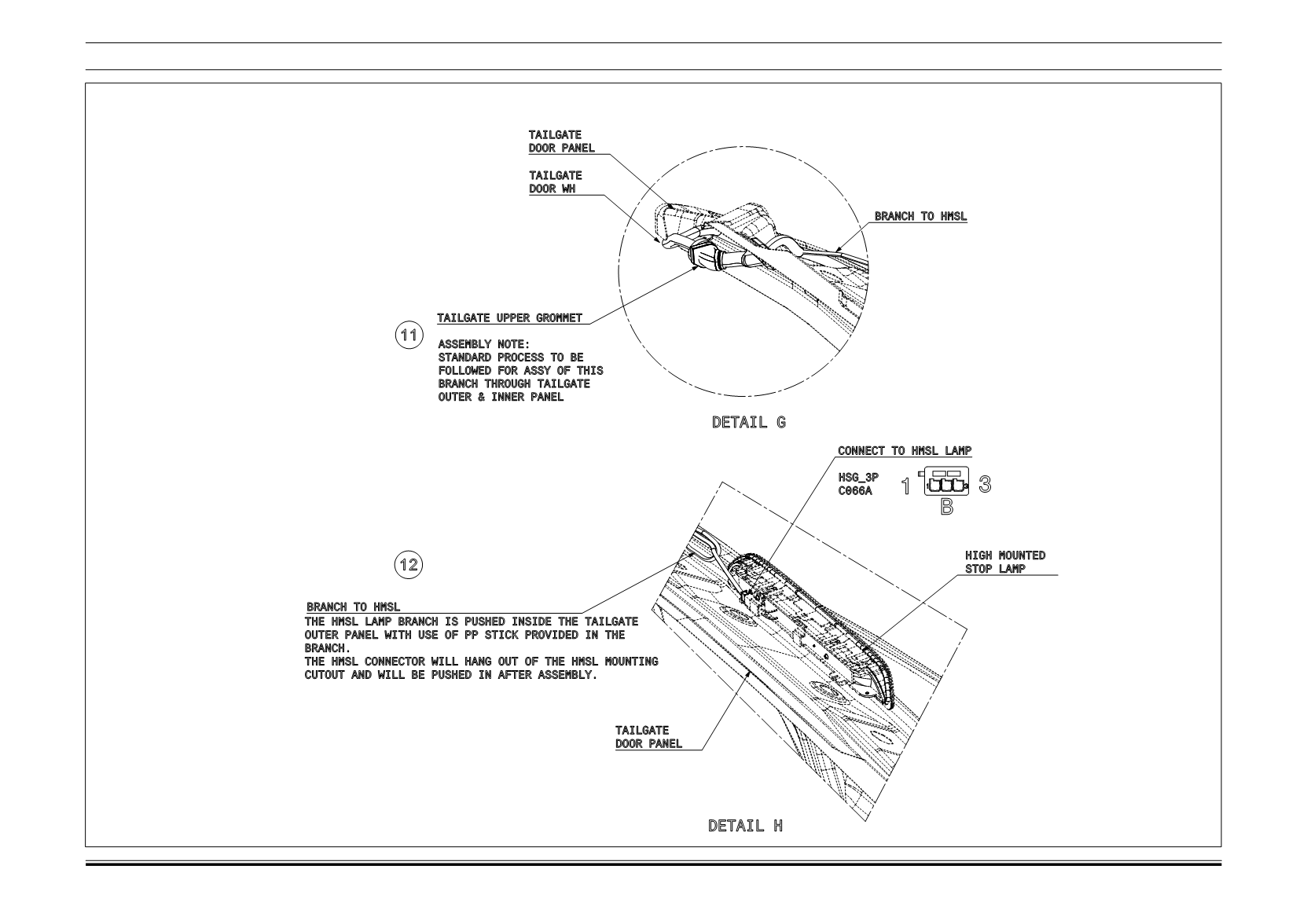

DETAIL G
TAILGATE UPPER GROMMET
TAILGATE
DOOR PANEL
TAILGATE
DOOR WH
BRANCH TO HMSL
ASSEMBLY NOTE:
STANDARD PROCESS TO BE
FOLLOWED FOR ASSY OF THIS
BRANCH THROUGH TAILGATE
OUTER & INNER PANEL
11
DETAIL H
HIGH MOUNTED
STOP LAMP
CONNECT TO HMSL LAMP
HSG_3P
C066A
BRANCH TO HMSL
TAILGATE
DOOR PANEL
THE HMSL LAMP BRANCH IS PUSHED INSIDE THE TAILGATE
OUTER PANEL WITH USE OF PP STICK PROVIDED IN THE
BRANCH.
THE HMSL CONNECTOR WILL HANG OUT OF THE HMSL MOUNTING
CUTOUT AND WILL BE PUSHED IN AFTER ASSEMBLY.
12
INFO FITMENT DRAWING FOR TAIL GATE
Electrical
BOLT / ZEST
