DETAIL B
EARTH ON BIW
TER_6 6_SRS_LA_U_2 00-3 00_SN
EA1A
NOTE: REFER SHEET NO.
07 FOR ANTIROTATION
TERMINAL FITMENT.
HEX FL SCR M6X16
TORQUE: 0.95kgfm
7MM FURR CLIP
5
7
DETAIL A
EARTH ON BIW
TER_LA_SRS_2.00-4.00_SN
EA2B
WITH XT VARIENT ONLY
NOTE:-REFER SHEET NO.
07 FOR ANTIROTATION
TERMINAL FITMENT.
EARTH ON BIW
TER_LA_SRS_0.50-2.00_SN
EA2A (FOR XT ONLY)
FOR REMAINING VARIANTS
USE TERMINAL 63701200040
TER_DIA6 6_SRS_LA_U_0 50-1 25_SN
NOTE:-REFER SHEET NO.
07 FOR ANTIROTATION
TERMINAL FITMENT
HEX FL SCR M6X16
TORQUE: 0.95kgfm
7MM FURR CLIP
5
7
7
DETAIL K
CONNECT TO
GARNISH PIGTAIL
HSG_2P
C001AGF
GARNISH PIGTAIL
EDGE CLIP
1.00-3.00THK
OVAL CLIP
0.6-6.0THK
13
14

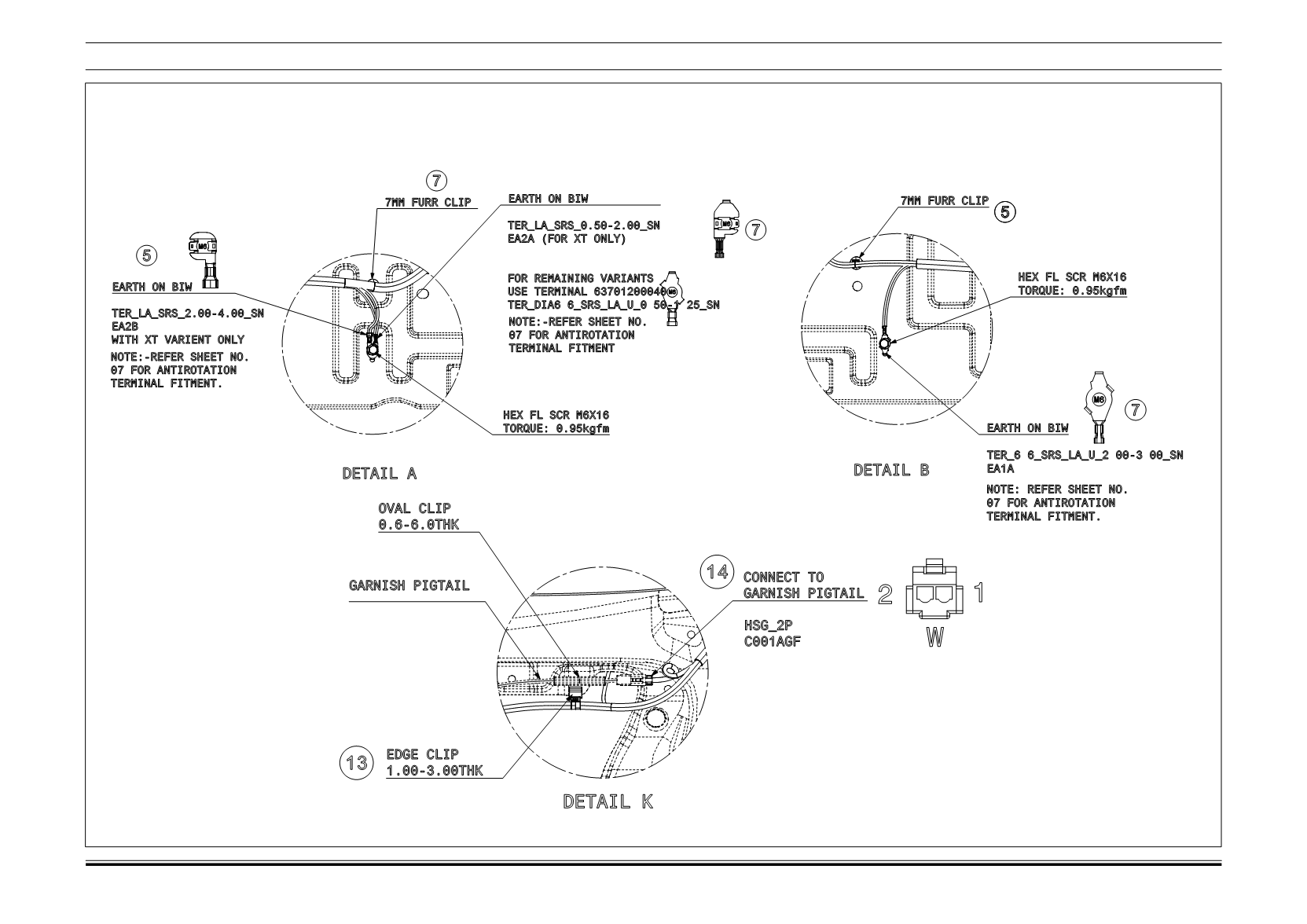

INFO FITMENT DRAWING FOR TAIL GATE
Electrical
BOLT / ZEST
