ELECTRICAL
90

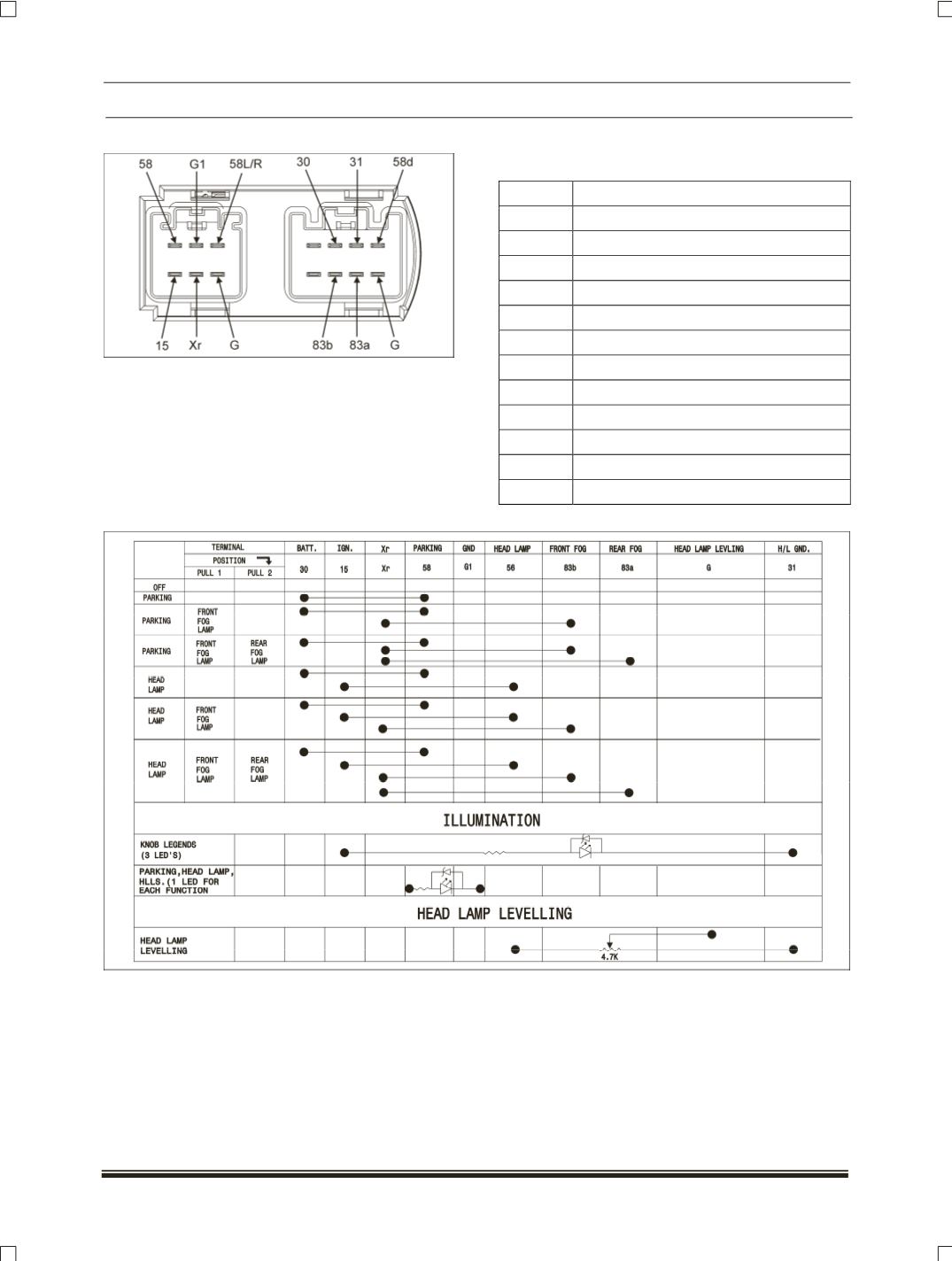

CONNECTOR DETAILS:
PINOUT DETAILS:
KNOB CONNECTOR:
PIN NO DESCRIPTION
G1
Instrument Cluster
58L/R
58
Parking Lamp (
PL
)
58d
31
H/L Leveling ground
G
H/L Leveling
56
Head Lamp
83a
Rear Fog Lamp
83b
Front Fog Lamp Relay
Xr
Fog Lamp Ground
15
Ignition Switch
30
Battery
CONNECTION DETAILS:
