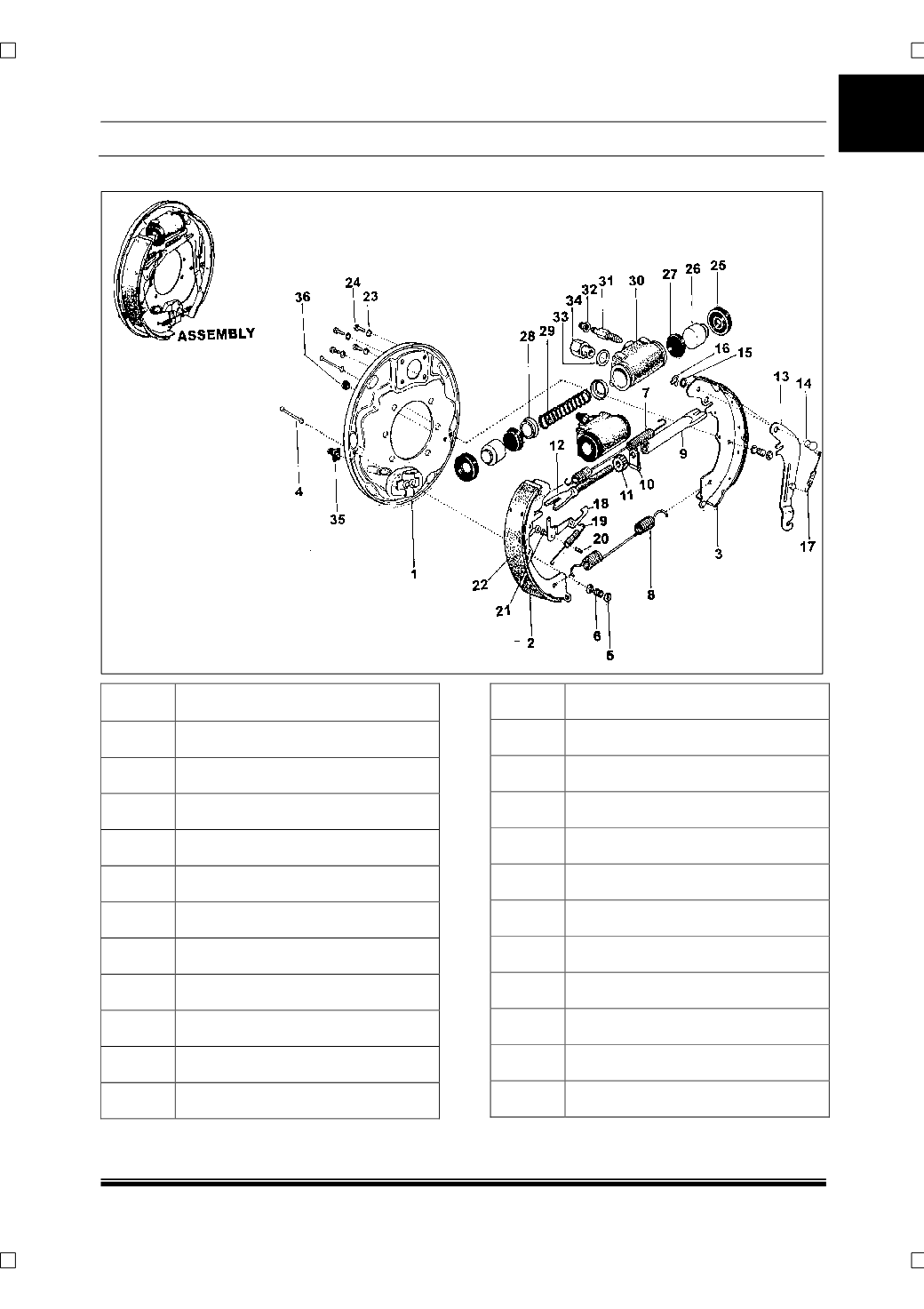

REAR DRUM BRAKES :
SR. NO
DESCRIPTION
1
Back Plate
2
Lined Shoe Leading
3
Lined Shoe Trailing
4
Shoe Hold Down Pin
5
CupWasher
6
Spring
7
Shoe Return Spring - W/Cyl End
8
Shoe Return Spring - Abutment End
9
Push Rod - Female
10
Thermoclip
11
Adjuster Nut
12
Push Rod - Male
13
Hand Brake Lever
14
Hand Brake Lever Pin
15
Washer
16
Clip
17
Spring-Hand Brake Lever
18
Pawl Lever
19
Pawl Lever Spring
20
Dowel Pin
21
WaveWasher
22
Plain Washer
23
Spring Washer
