D. MAIN FUEL FILTER REPLACEMENT

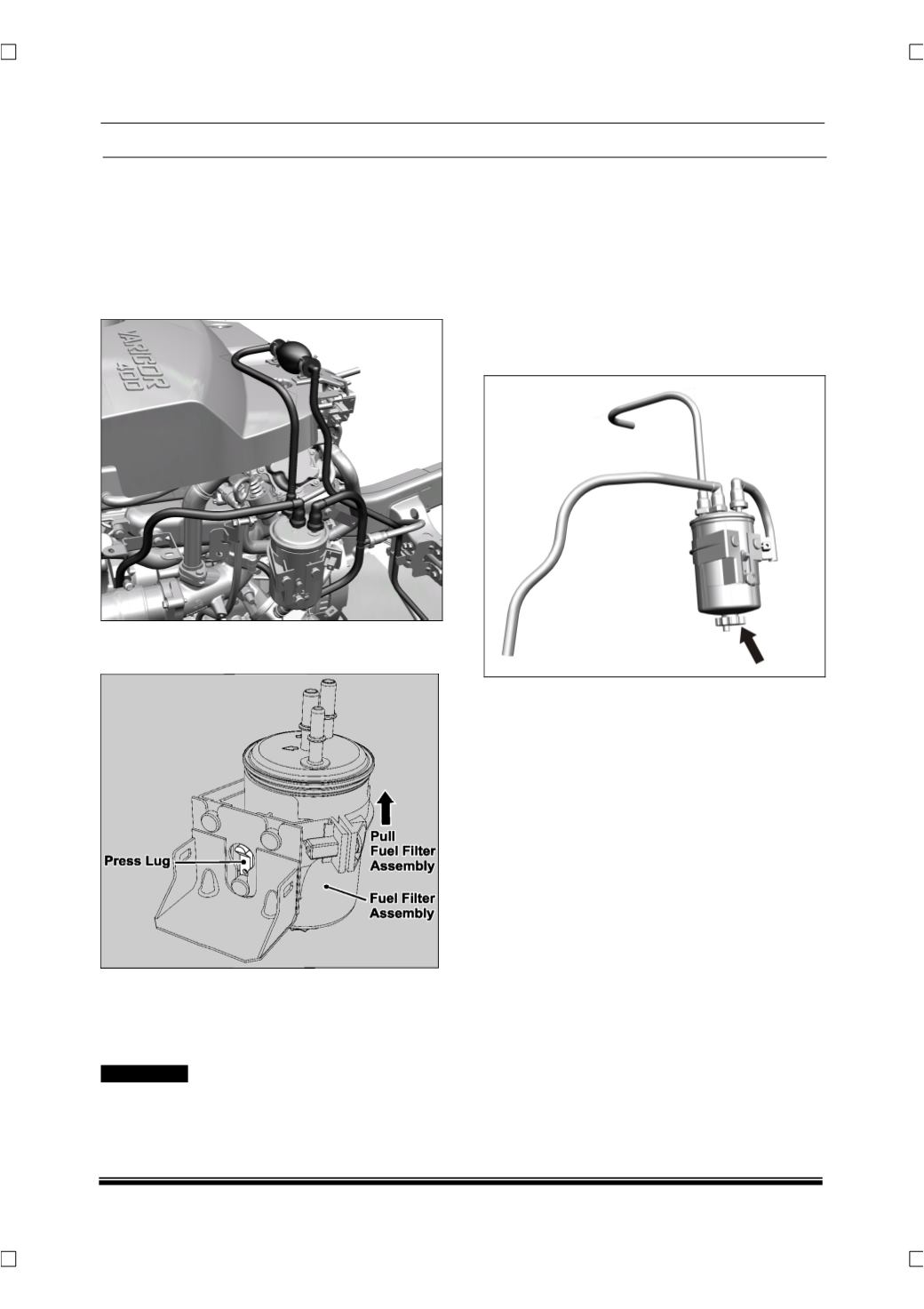

1. Disconnect the
(3)
fuels lines
(Quick fit connector)
as indicated in the figure below.
1. Return line to in tank pump
2. To HP pump
3. From sedimentor
2. Fuel filter plastic bracket has vertical snap fit lug,
press it and pull the assembly fuel filter.
NOTE
Fuel filter bottle & bracket can be separately re-
placed or the whole assembly fuel filter with bracket
can be replaced.
!!
WARNING
The fuel filter will contain diesel in it, which may get
accidentally spilled onto the operator if it is not han-
dled properly.
FITMENT
•
For fitment follow the reverse order of removal.
•
Using hand priming pump refill the fuel lines.
DRAINING WATER FROM FUEL FILTER
The procedure to drain water from fuel filter is same
as that of sedimentor. Instead of sensor
(as in
sedimentor)
the drain plug has to be loosened by 2
turns and approximately 120cc of diesel has to be
drained.
