FRONT AXLE (4X2)
10

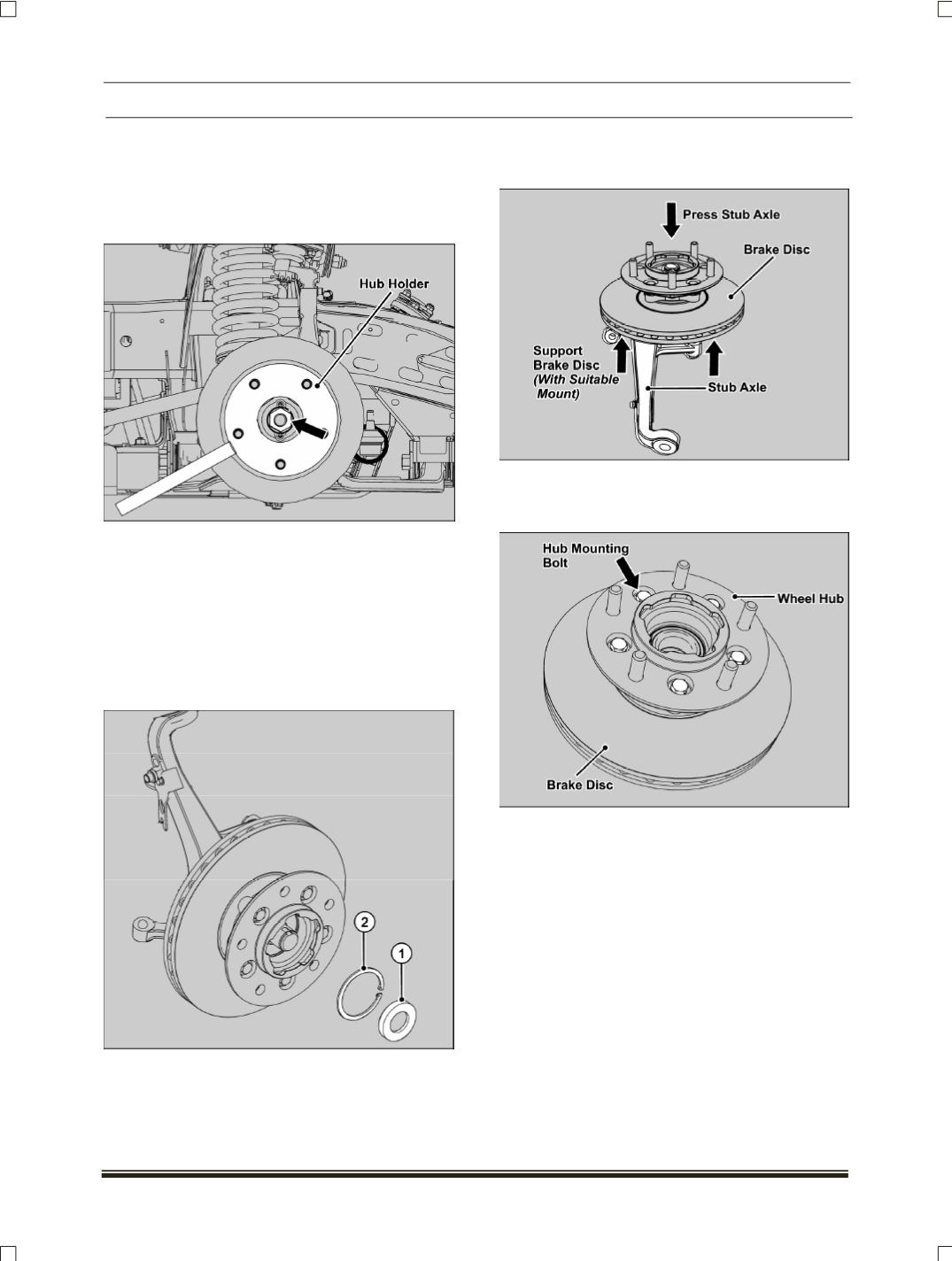

4.5.1.3.2 HUB REPLACEMENT
REMOVAL
1. Hold the hub assembly using holder
(Part No.
287058903316)
and remove hex nut. This action
should be performed on vehicle.
NOTE
Discard the hex nut once removed and use new one
at the time of assembly.
2.
Remove the stub axle assembly from the vehicle.
(For removal refer on vehicle removal in this
section.)
3. Remove spacer
(1)
and internal circlip
(2)
using
circlip plier.
4. Support the brake disc and press the stub axle
shaft to separate it from brake disc and hub
assembly.
5. Hold wheel hub and brake disc assembly on
suitable fixture. Loosen brake disc mounting bolts
and take out the brake disc.
