FRONT AXLE (4X2)
9
FRONT AXLE
(4X2)
4.5.1.3 OVERHAULING

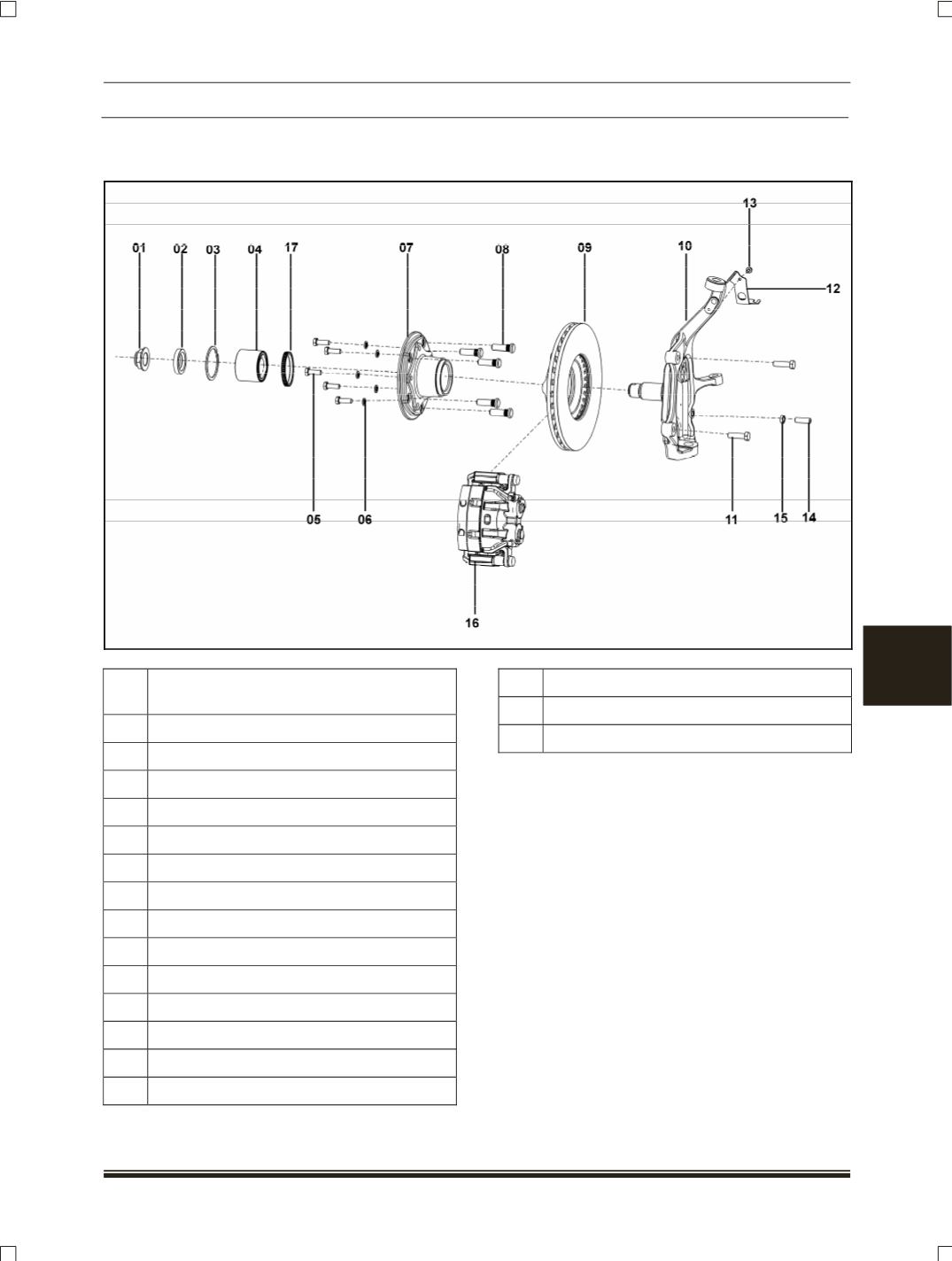

4.5.1.3.1 FRONT AXLE EXPLODED VIEW
SR.
NO.
DESCRIPTION
01
Hex nut
02
Spacer
03
Internal cir clip 75X2.5N
04
Tapered roller bearing
(Hub unit)
05
Hex screw M10X1X30
06
Spring washer B0
07
Wheel hub
(Front)
08
Wheel bolt
09
Brake disc-ventilated
10
Stub axle
11
Flange screw M12X1.25X42
12
Bracket for hose mounting on stub axle
13
Hexagonal flange screw M6X12
14
Wheel stopper bolt
(Lower wishbone)
15
Hexagonal thin nut M12X1.5
16
C48X48 front caliper
17
Toner ring
