FRONT AXLE (4X4)
5
FRONT AXLE
(4X4)

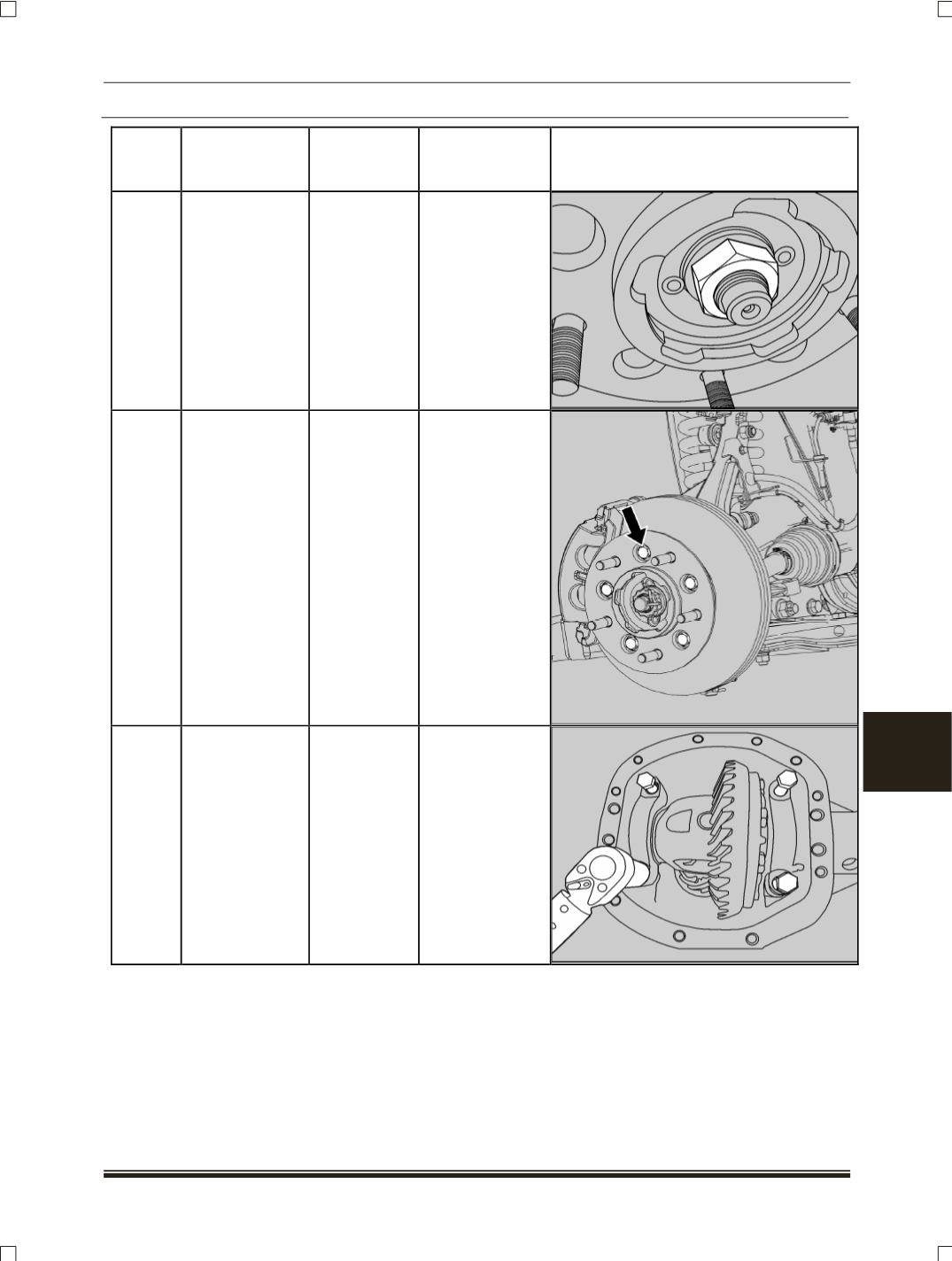

SR. NO. DESCRIPTION FASTENER
TIGHTENING
TORQUE
(Kg-m)
LOCATION
8
CV joint and
wheel end as-
sembly nut
(Spindle nut)
A/F 36 mm,
M24X1.5 6H
30 ~ 32
9
Hub and brake
disc assembly
bolt torque.
A/F 17.0,
M10X1.0,
30mm Long
4.6 ~5.2
10
Bearing
cap bolt
A/F 16, 57mm
Long, 33mm
Thread Length,
0.437-14UNC-
2A
4.7 ~ 6.8
