503 / 1235

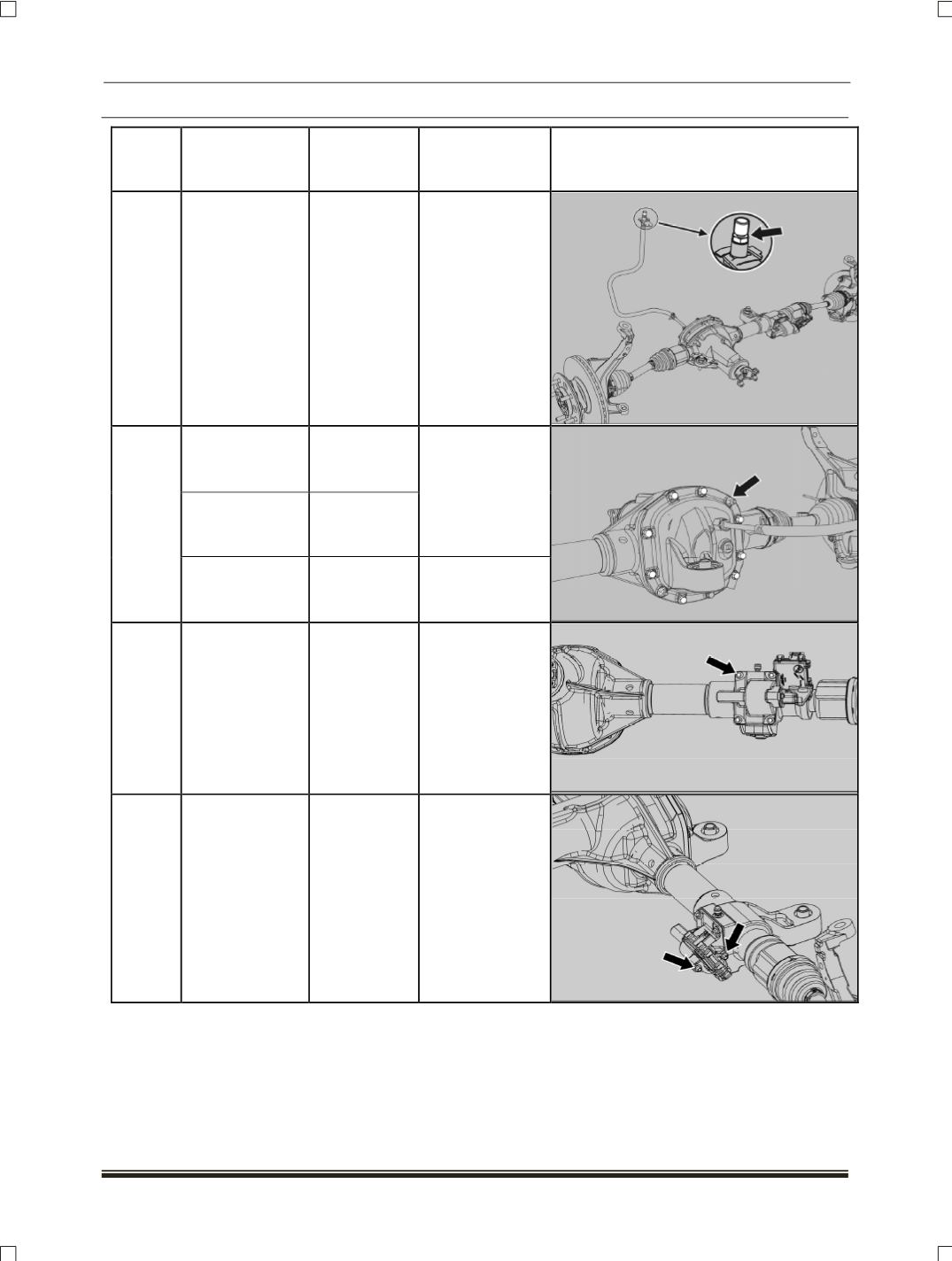

FRONT AXLE (4X4)
4
SR. NO. DESCRIPTION FASTENER
TIGHTENING
TORQUE
(Kg-m)
LOCATION
4
Vent
( breather)
–
0.76 ~1.04
*Cover plate
mounting lock nut
A/F 13.0 mm
M8X1.25 6H
Cover plate
mounting lock
stud
M-8 x1.25,
25mm Long
1.7 ~2.1
5
Cover plate
mounting lock
bolts
A/F 12.5-13.0
mm
2.3 ~ 2.9
6
Disconnect hous-
ing cover screw
–
0.95 ~ 1.22
7
Disconnect hous-
ing motor
mounting screw
torque.
A/F 8.0 mm,
24mm Long,
21mm Thread
0.9 ~ 0.16
