REAR SUSPENSION
32
5.2.2 MAINTENANCE
5.2.2.1 ON VEHICLE REPAIRS

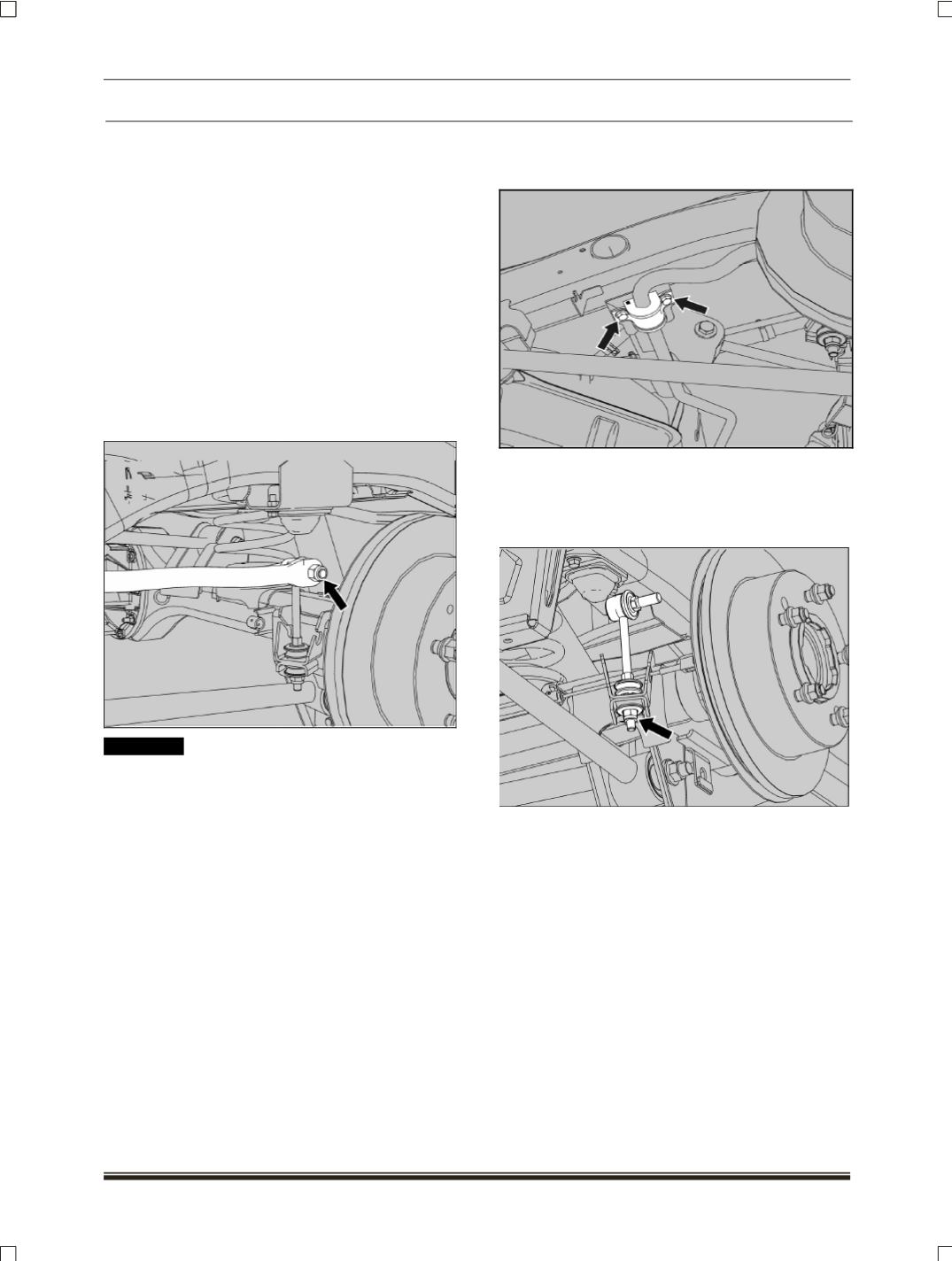

A. ANTIROLL BAR
REMOVAL
1. Hoist the vehicle on two post lift & remove the
wheels.
2. Remove the wheel speed sensor wiring by
removing the separator clamp from Anti roll bar
from both ends.
3. Lock the ball joint from being rotated using an
Allen key
(5mm)
and disconnect the antiroll bar
from the ball joint assembly by loosening the
nyloc nut. Follow the same procedure at the other
end also
.
! CAUTION
Make sure that before loosening the nyloc nut one
should use Allen key (5mm) to hold the ARB link ball
stud otherwise it may damage the ball joint.
4. Loosen and remove two mounting screws of
bearing block bracket. Follow the same
procedure at other end also.
5. Remove the anti-roll bar assembly.
6. Remove the ball joint assembly from the bracket
on the rear axle by removing the bottom nyloc
nut. Follow the same for other end also.
