ENGINE
121

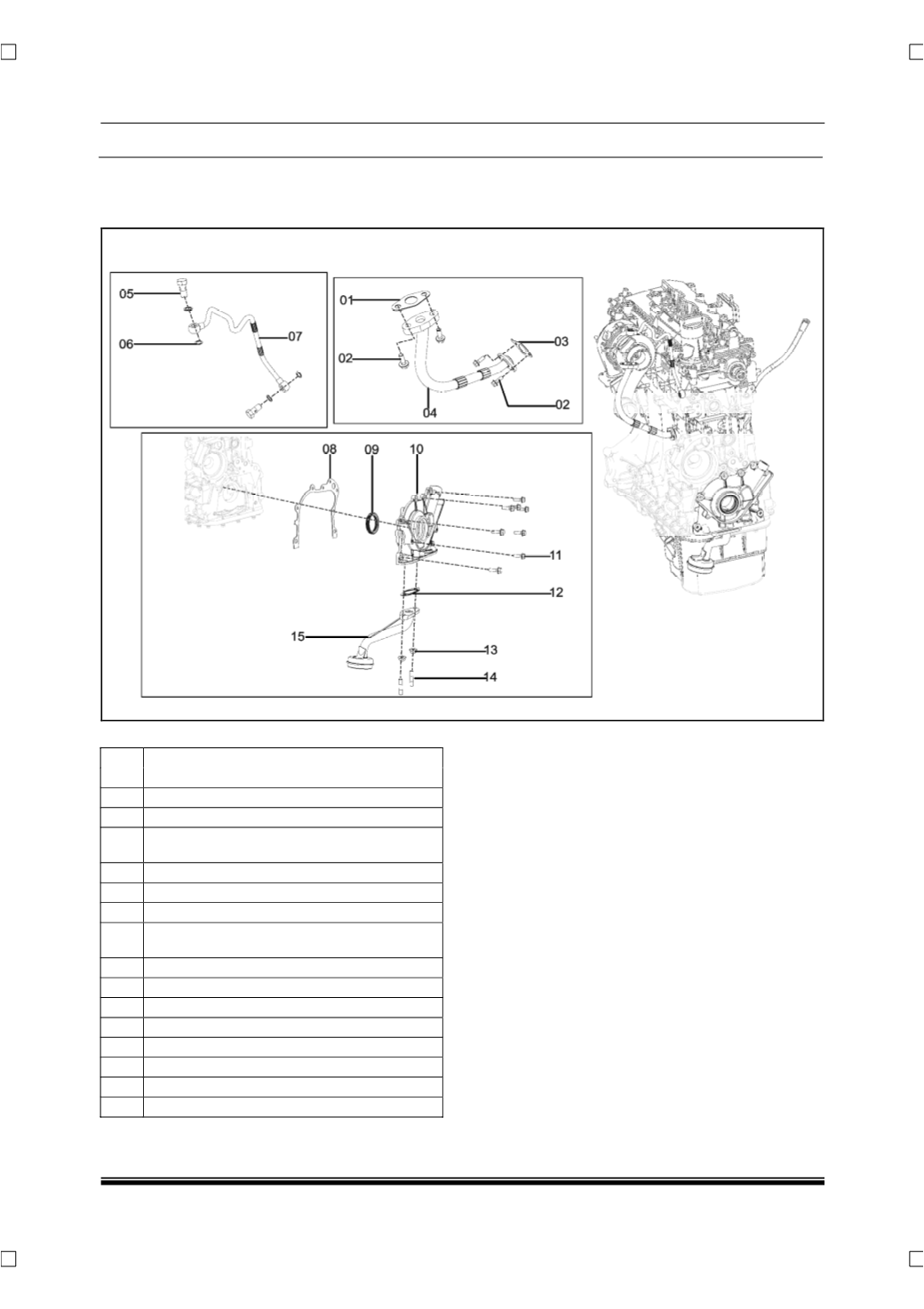

2.1.6.3 EXPLODED VIEW
A. OIL PUMP AND LINES
SR.
NO.
DESCRIPTION
01 Gasket
(Assembly Tube to Turbocharger)
02 Hex Flange Screw M6X18
03
Gasket
(Assembly Turbocharger Tube to
Cylinder Block)
04 Assembly Tube Turbo Oil Return
05 Pipe Union Bolt
(Oil Feeder & Boost Line)
06 Sealing Washer
07
Assembly Oil Feeder Line
(Cylinder Head
to Turbocharger)
08 Gasket-Oil Pump
09 Oil Seal-Crankshaft Front
10 Assembly Oil Pump
11 Hex Flange Screw M6X20
12 Gasket
(Oil Pump to Strainer)
13 Hex Flange Nut BM8
14 Stud
15 Assembly Strainer
