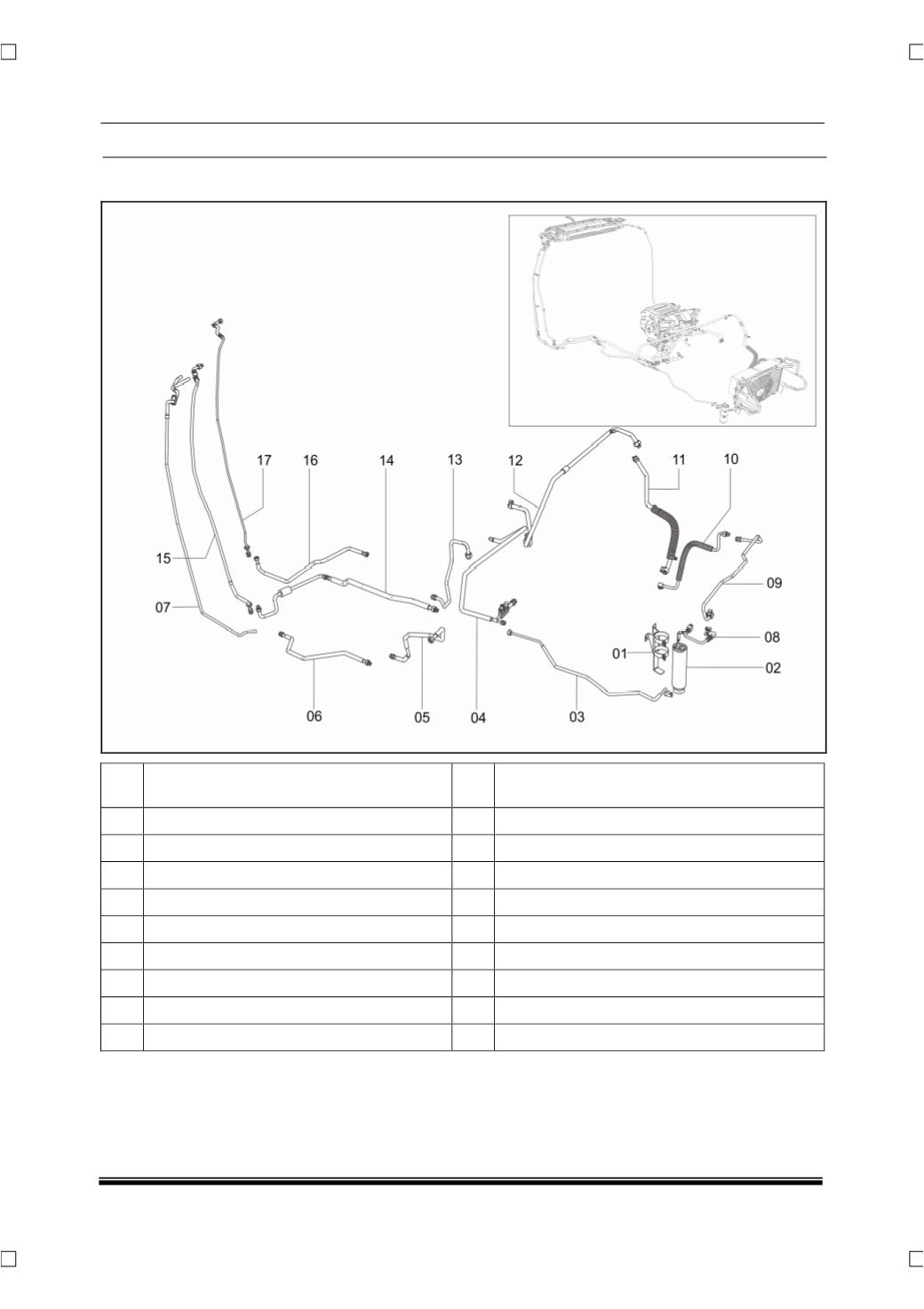

10.3.10 REFRIGERANT HOSES/PIPES
Sr
No
DESCRIPTION
Sr
No
DESCRIPTION
1
RD_HOLDING_BRACKET_SAFARI AARIA 10
DISCHARGE HOSE COMP OUT
2
ASSY. RECEIVER DRIER - SUBROS
11
SUCTION HOSE COMP IN
3
TUBE_LIQUID_RD_OUT_SAFARI ARIA
12
SUCTION PIPE ASSY
4
TUBE LIQUID HVAC INLET
13
ASSY ROOF SUCTION PIPE
5
TUBE LIQUID NEAR WHEELARCH
14
TUBE SUCTION UNDERBODY SAFARI ON
6
TUBE LIQUID UNDERBODY PIPE
15
DRAIN TUBE RH LONG SUBROS ROOF AC
7
TUBE LIQUID UNDERBODY
16
TUBE LIQUID UNDERBODY PIPE
8
ASSY TUBE LIQUID B PILLER
17
ASSY TUBE SUCTION B PILLER SUBROS
9
DISCHARGE PIPE CONDENSOR END
