HVAC
55

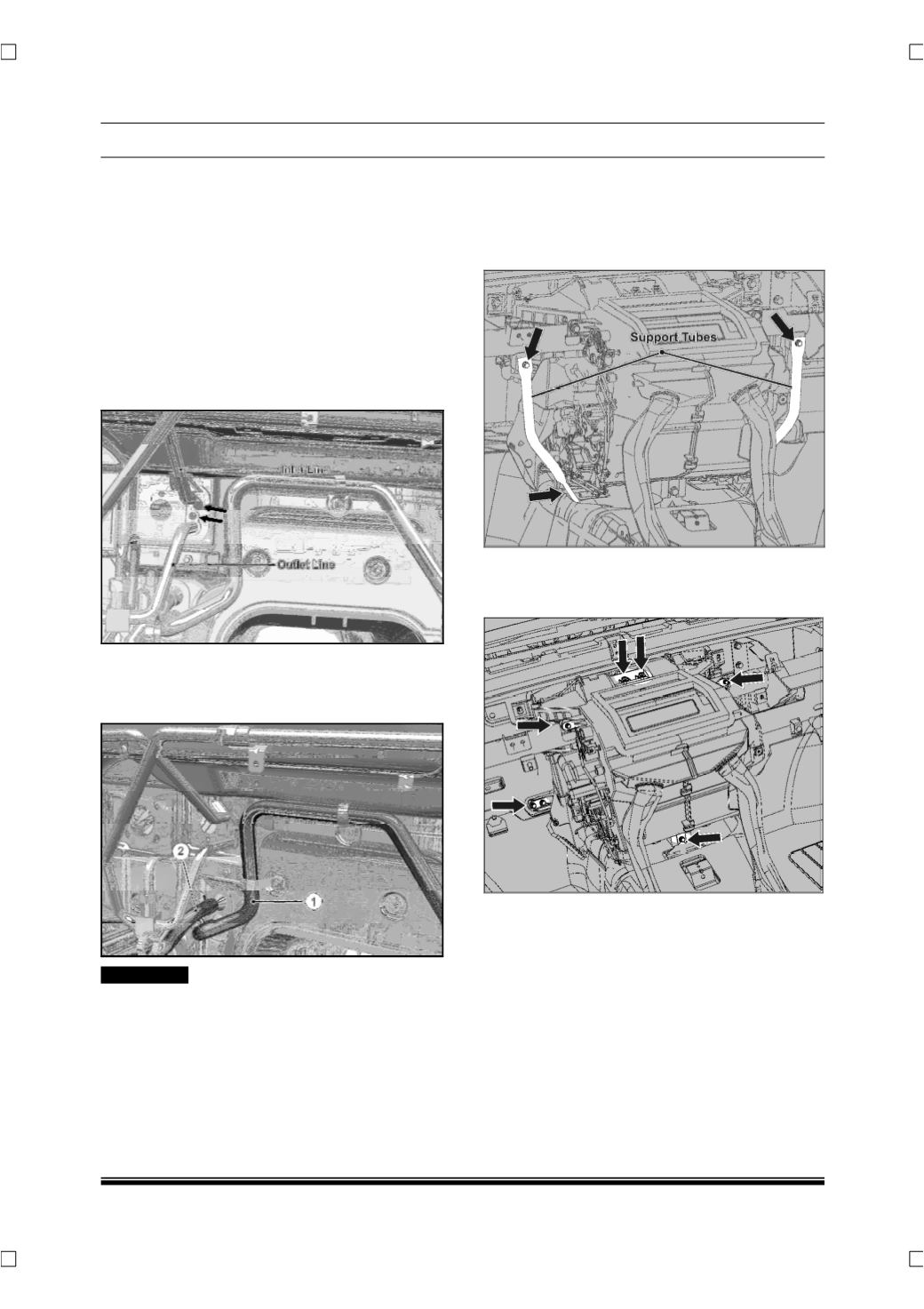

10.3.3 FRONT HVAC UNIT
REMOVAL
1. Discharge the refrigerant using standard recover-
ing equipment.
2. Remove dashboard assembly.
(For procedure
refer dashboard removal procedure in Body sec-
tion.)
3. Disconnect all electrical connections.
4. Loosen and remove bolts and disconnect the inlet
and outlet lines i.e. high pressure line and low
pressure line and plug the ports.
5. Drain the coolant.
6. Disconnect the Heater inlet (1) and heater coil
outlet (2) pipes.
!! WARNING
•
The heater pipes contain hot coolant which may
spill out when disconnected, even if the coolant is
drained, so be careful while disconnecting them.
•
Keep a suitable container below to collect the
coolant that will flow out.
7. Loosen and remove the mounting bolts of support
tube on both side of HVAC unit and take out the
tubes.
8. Loosen and remove mounting bolts (7 Nos) as
shown in figure below and take out the HVAC
unit.
FITMENT
For fitment follow the reverse procedure of removal.
