HVAC

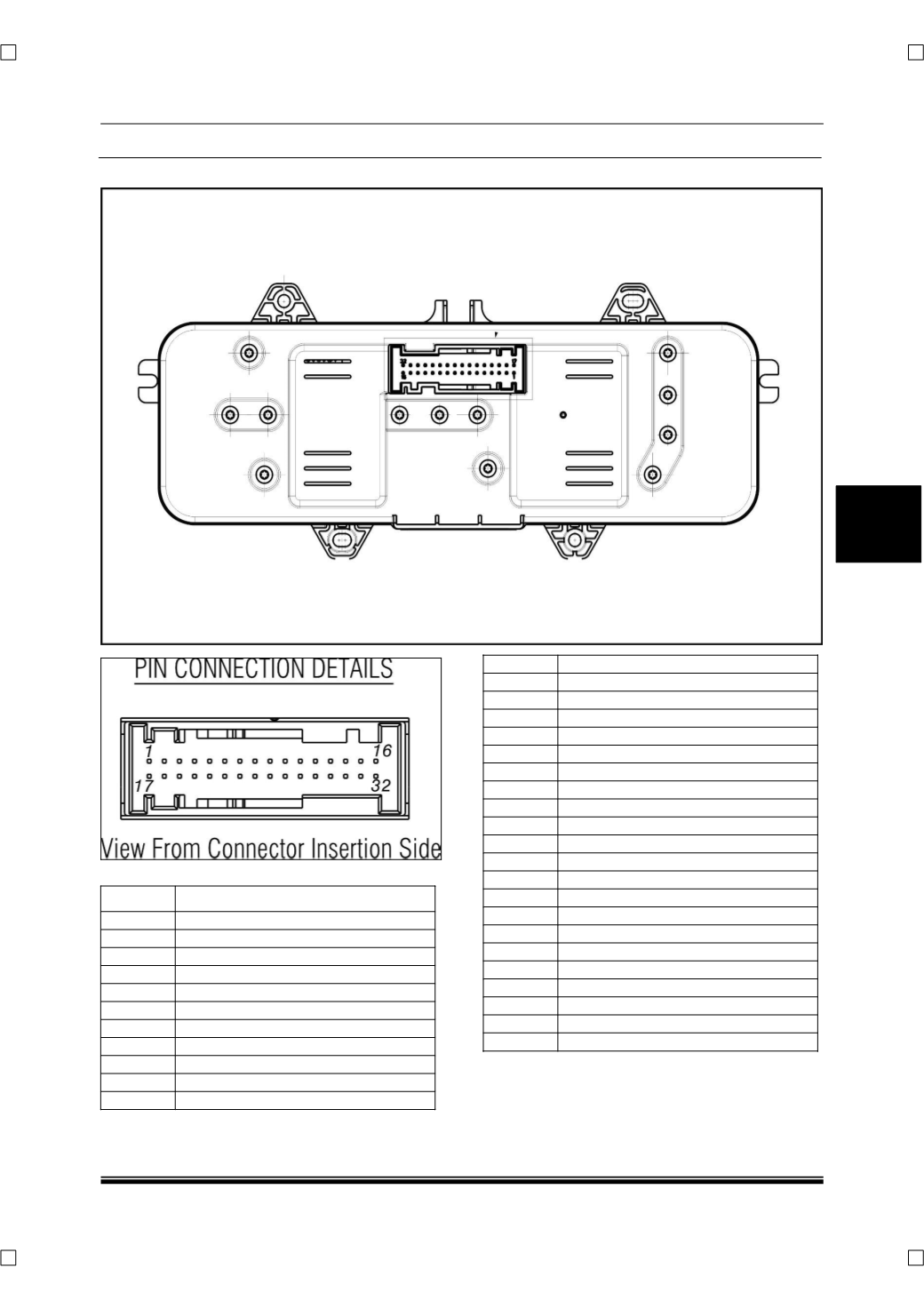

CONNECTOR DETAILS
PINOUT DETAILS
Pin No.
Description
1
Mode Motor Sensor Ground
2
Temp Motor Sensor Ground
3
Battery Ground
4
Evaporator temp sensor -ve
5
Battery Positive
6
NC
7
NC
8
NC
9
NC
10
NC
11
NC
12
Ignition
13
Mode Motor Sensor Feedback
14
Temp Motor Sensor Feedback
15
Evaporator temp sensor + ve
16
Refer Defog LED
17
Battery Ground
18
NC
19
RC Motor Recirculation Ground
20
Mode Motor - ve
21
Mode Motor + ve
22
Temp Motor - ve
23
Temp Motor + ve
24
RC Motor fresh Ground
25
Blower PMW
26
PTC Heater
27
Front A / C Relay
28
Mode Motor Sensor + ve
29
Temp Motor Sensor + ve
30
Rear A / C Relay
31
DIM + ve
32
DIM - ve
33
Rear Defogger
