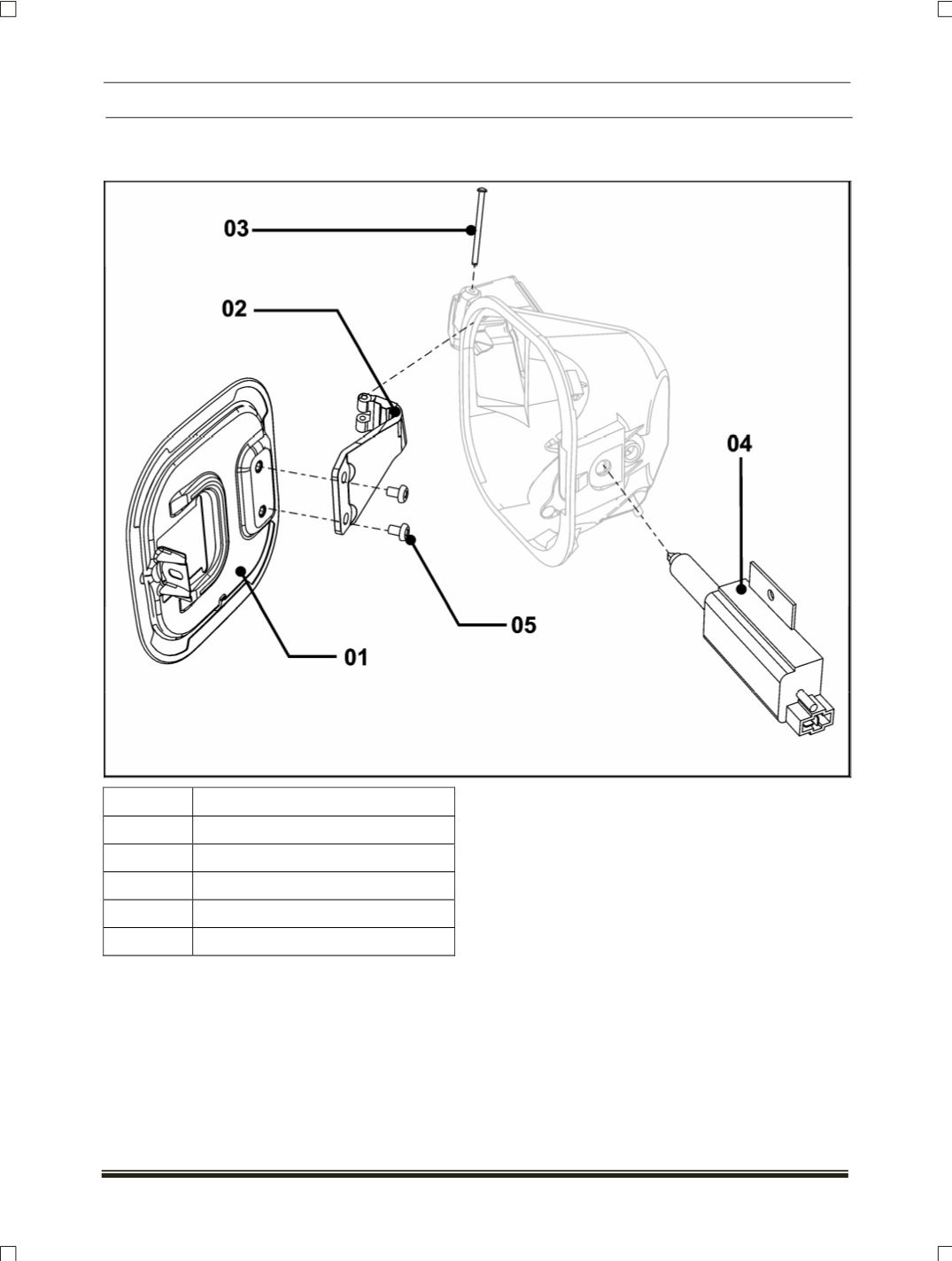

9.2.40 FUEL FILLER ASSEMBLY

CONSTRUCTIONAL DETAILS

SR. NO

DESCRIPTION

01

Fuel filler flap

02

Hinge arm

03

Pivot pin

04

Actuator

05

Screw
