BODY

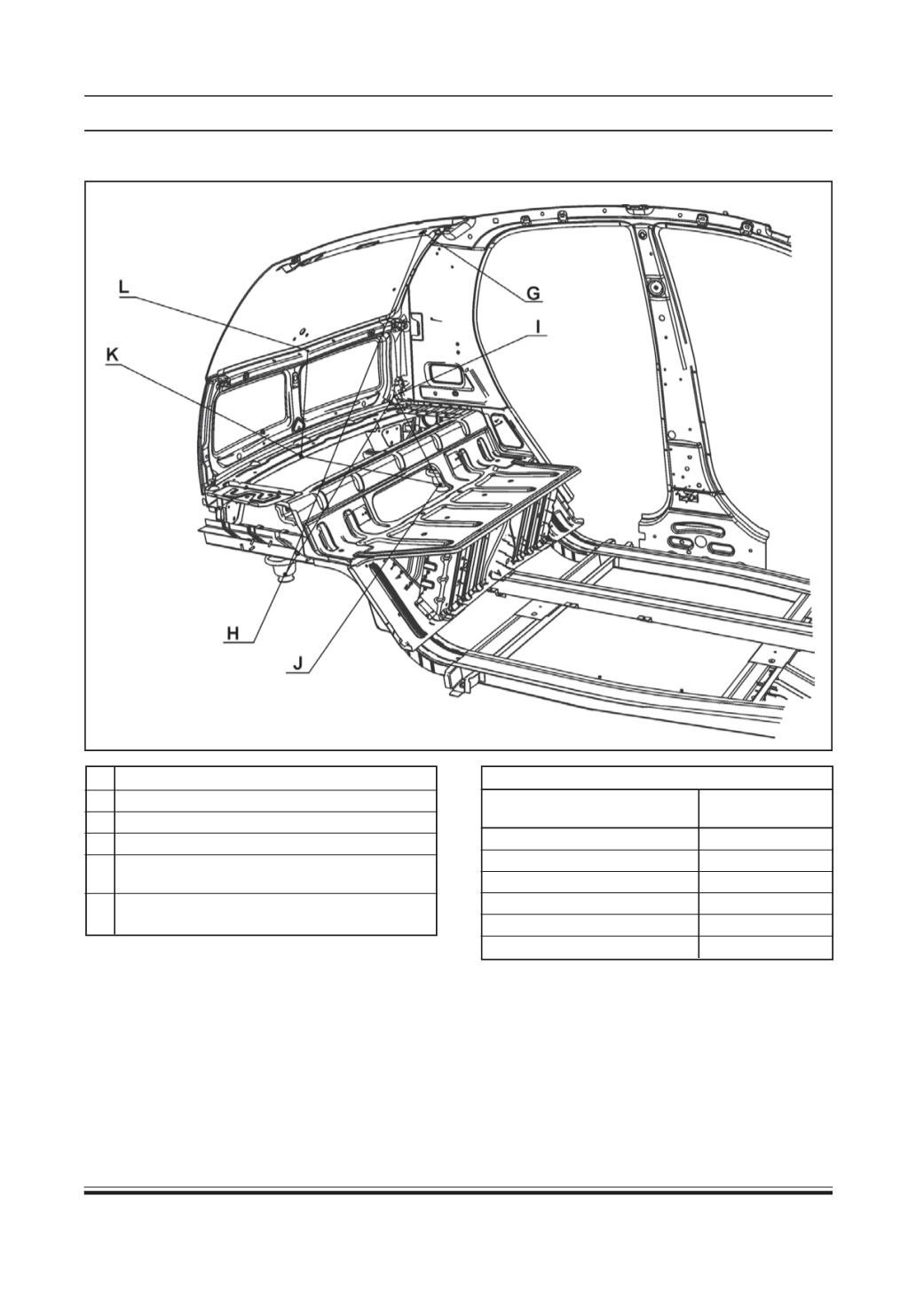

REAR VIEW :
G Head liner fixing hole centre
H Rear suspension tower RH hole centre
I Tail gate mtg. stud LH centre
J Rear suspension tower LH hole centre
K Drain hole centre cross member rear bumper
mounting
L Striker mounting hole centre cross member
rear bumper mounting
TABLE FOR SILE VIEW
MEASUREMENT
LENGTH
POSITION
(IN MM)
G - H
1337
H - I
1125
I - J
412
J - K
623
D - E
293
K - L
405
