NOTE :
Refer removal procedure of front latch assembly as
disengaging the links from rear latch assembly is
similar to that of front latch assembly.
For vehicles with central locking unit :

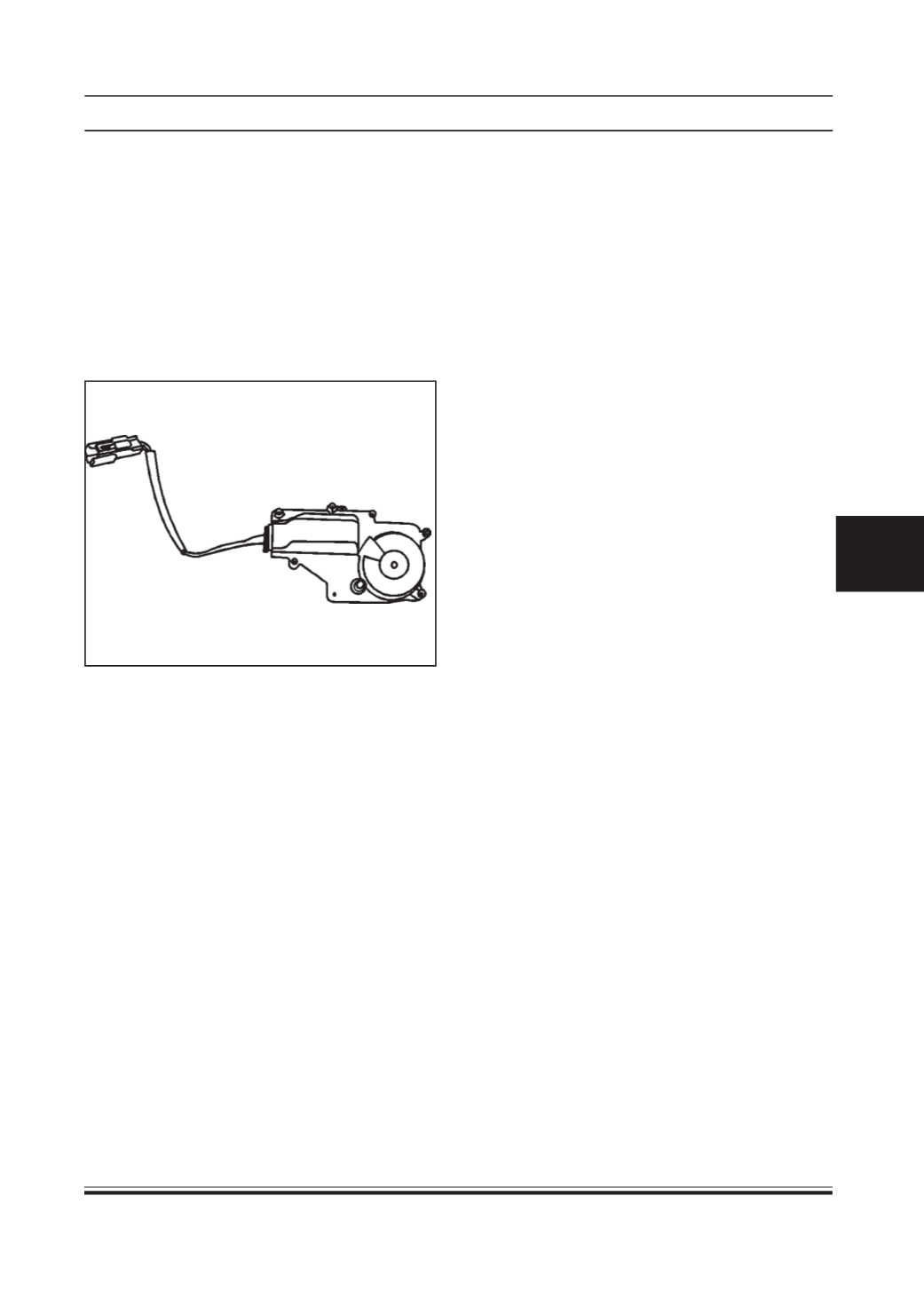

6. Disconnect the electrical connector of central
locking follower unit and take out latch assembly
along with central follower unit.
7. Disassemble central locking follower unit and latch
assembly by removing mounting screws.
Inspection
1. Inspect central locking follower unit (Refer Body
Electrical Group)
2. Inspect latch assembly for any damage or any
bent linkages.
Installation
1. For vehicle with central locking unit.
(a) Assemble central locking follower unit with latch
assembly by tightening mounting screws.
(b) Connect the electrical connector of central
locking follower unit.
2. Tighten three screws of latch assembly.
3. Engage following links :
(a) Door inner handle link – from door inner handle
to latch assembly.
(b) Outer handle link – from outer handle to latch
assembly.
4. Fit door window glass. (Refer Rear door window
glass installation procedure)
5. Fit door pad. (Refer front door pad installation
procedure)
NOTE :
Removal and Installation procedure of OUTERDOOR
LOCK REAR, DOOR INNER HANDLE REAR and
REAR DOOR STRIKER is similar to that of front side.
