BODY

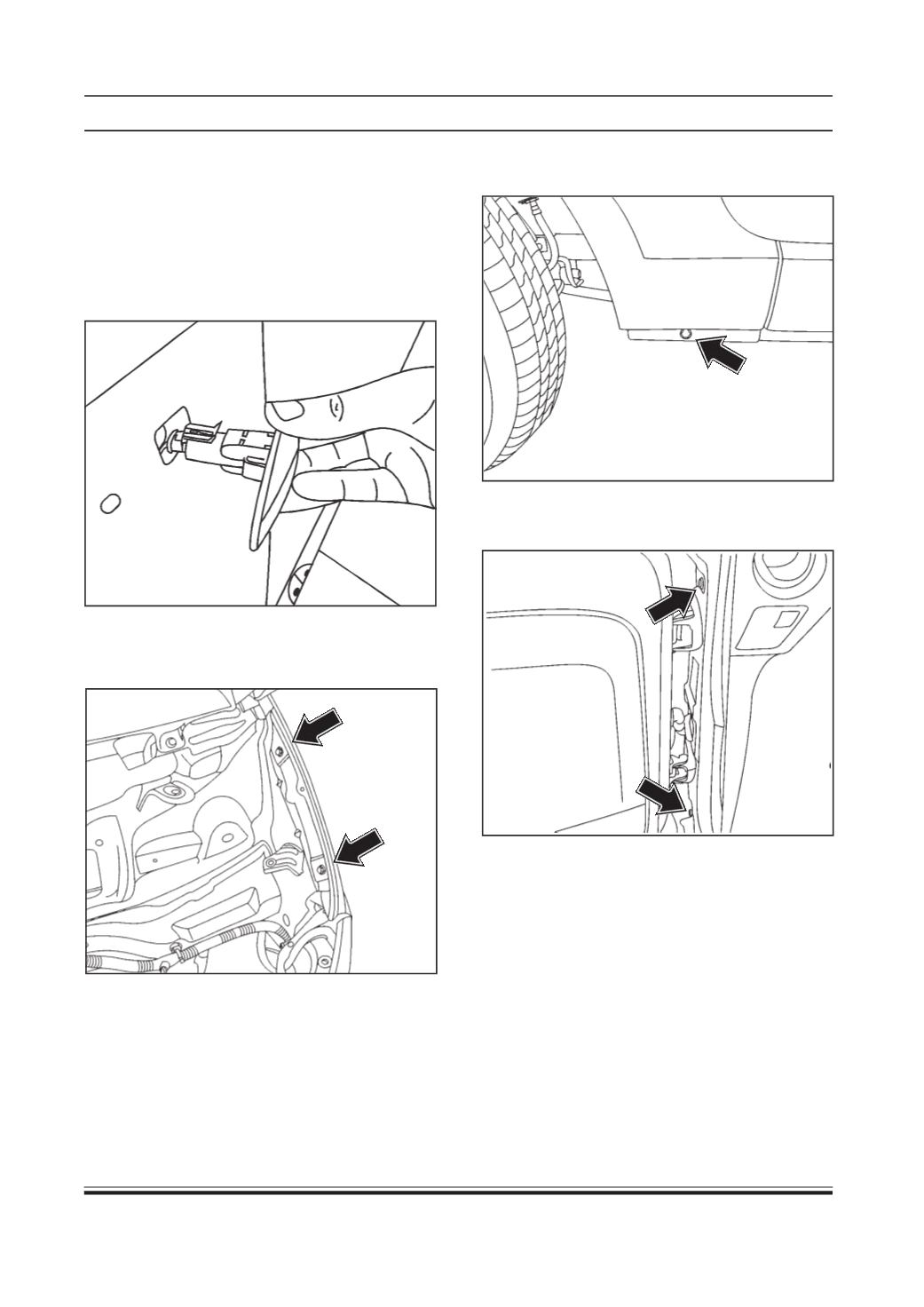

2. Remove front bumper (Refer front bumper removal
procedure)
3. Remove two bolts securing fender to the body.
4. Remove the bolt (located below door shown by
arrow) securing fender to the body.
5. Remove two bolts (located near door hinges shown
by arrow) securing fender to the body and take
out fender.
Installation
1. Position the fender on body and tighten all
mounting bolts to specified torque.
TIGHTENING TORQUE FOR FENDER BOLTS = 1 Kg-m
2. Fit front bumper. (Refer front bumper installation
procedure)
3. Connect the electrical connector of side repeater
lamp and fit the same. (Press fit type)
FENDER (SIDE BONNET)
Removal
NOTE :
The removal procedure of fender is identical for other
side.
1. Pry out the side repeater lamp and disconnect
the electrical connector.
