ELECTRICAL
683
ELECTRICAL

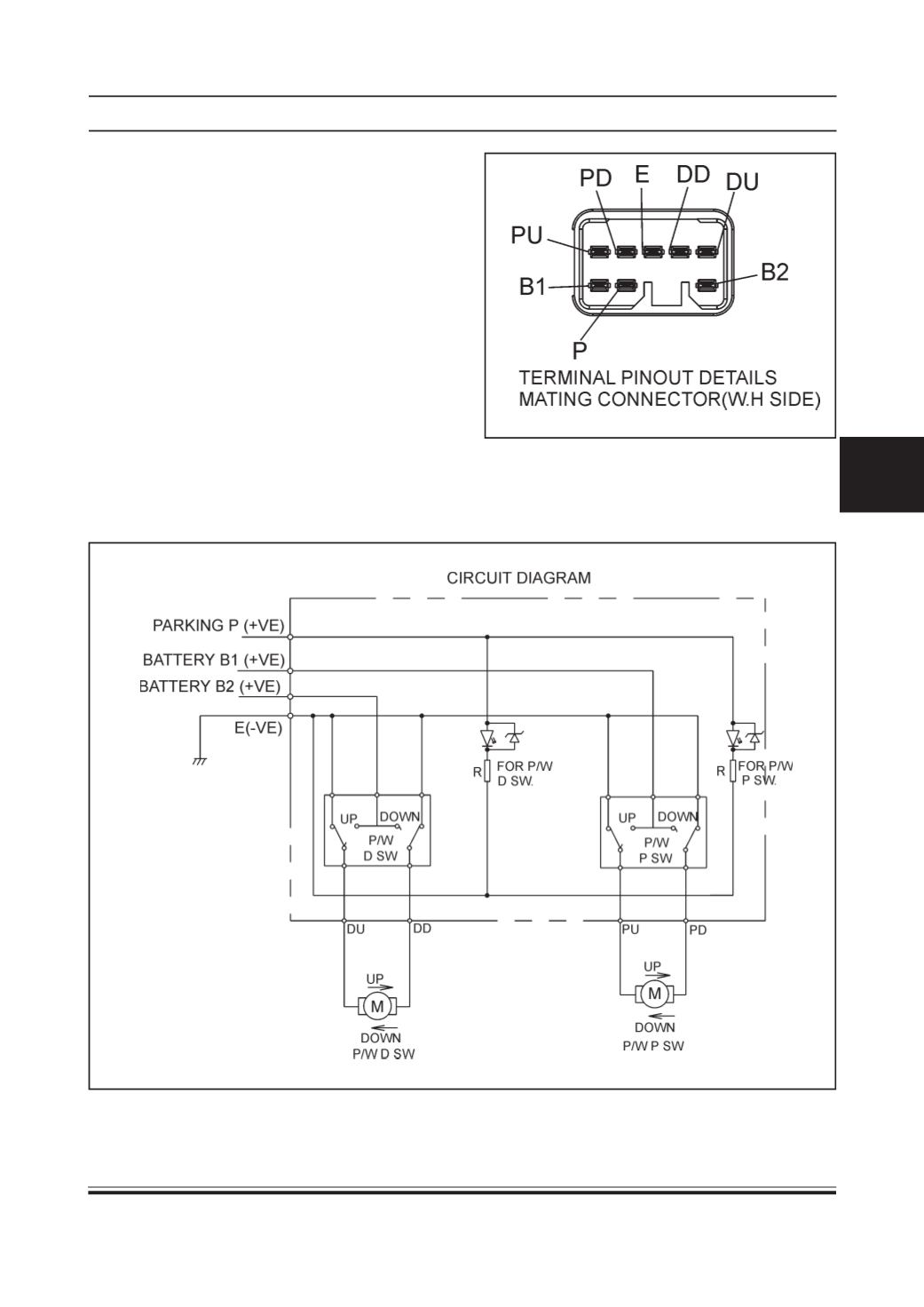

CONNECTIONDETAILS:
4. Switch ON the ignition key and check for
electrical supply at different stages like different
connectors, and operating switches with the help
of test lamp.
5. Check Window winding motor for free rotation by
connecting electrical supply. If found defective then
replace the motor.
6. Check drive square of the drive unit, if found worn
out then replace drive unit.
7. Check for the free movement of theWindow wind-
ing mechanism. If found hard and defective, then
replace the assembly.
REFITMENT :
1. Fit the power window switch on the floor console
2. Connect the electrical connector.
3. Fit the floor console.
