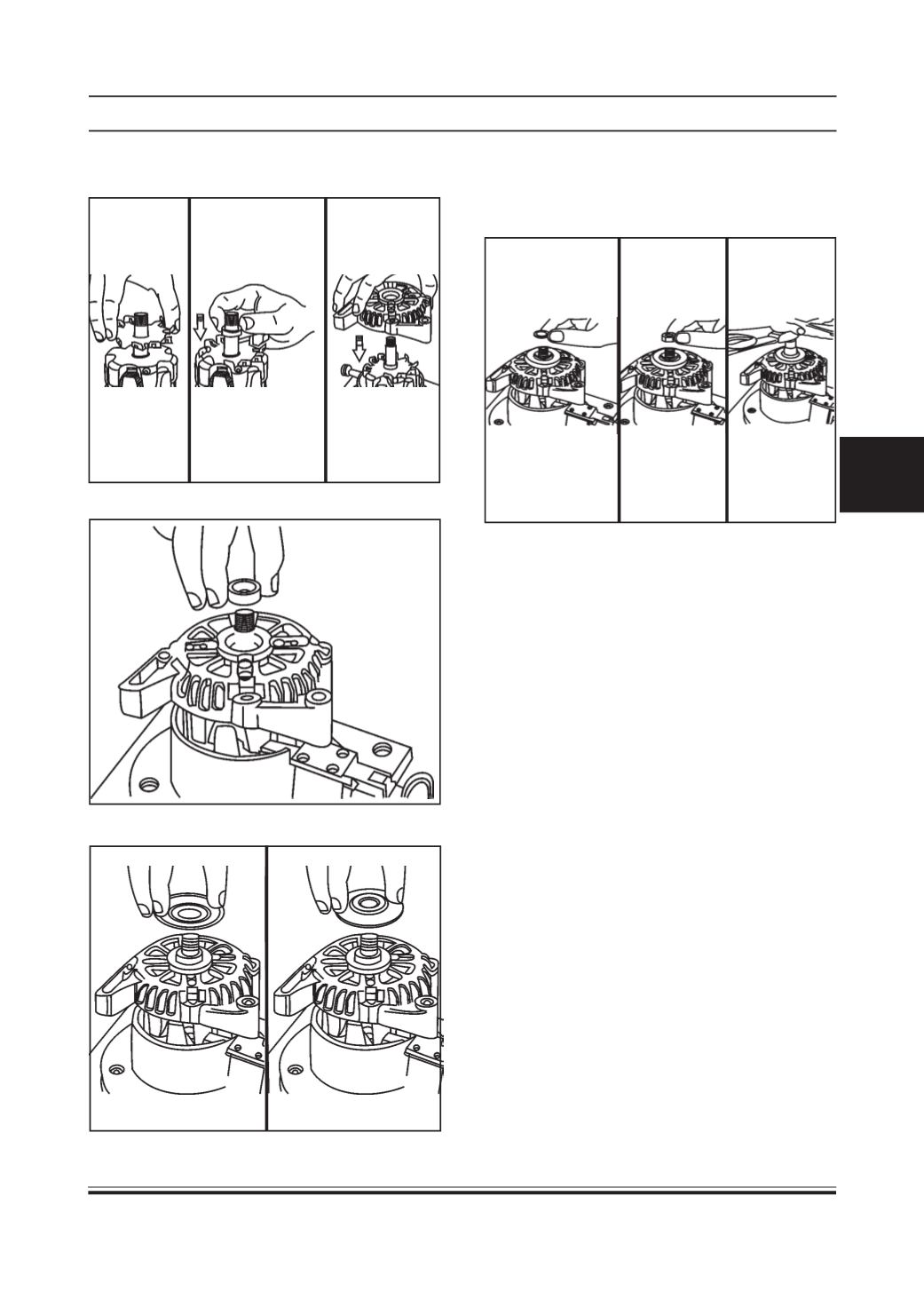

7) Insert the DE Fan, DE Spacer & DE Bracket

assembly.

8) Insert the Bearing Collar.

8) Insert the Pulley halves.

9) Insert the Plain washer and Nut on the Pulley

then Clamp the Rotor assembly in a fixture and

tighten the pulley nut carefully. (Take care that

rotor claws are not damaged).
