BRAKES

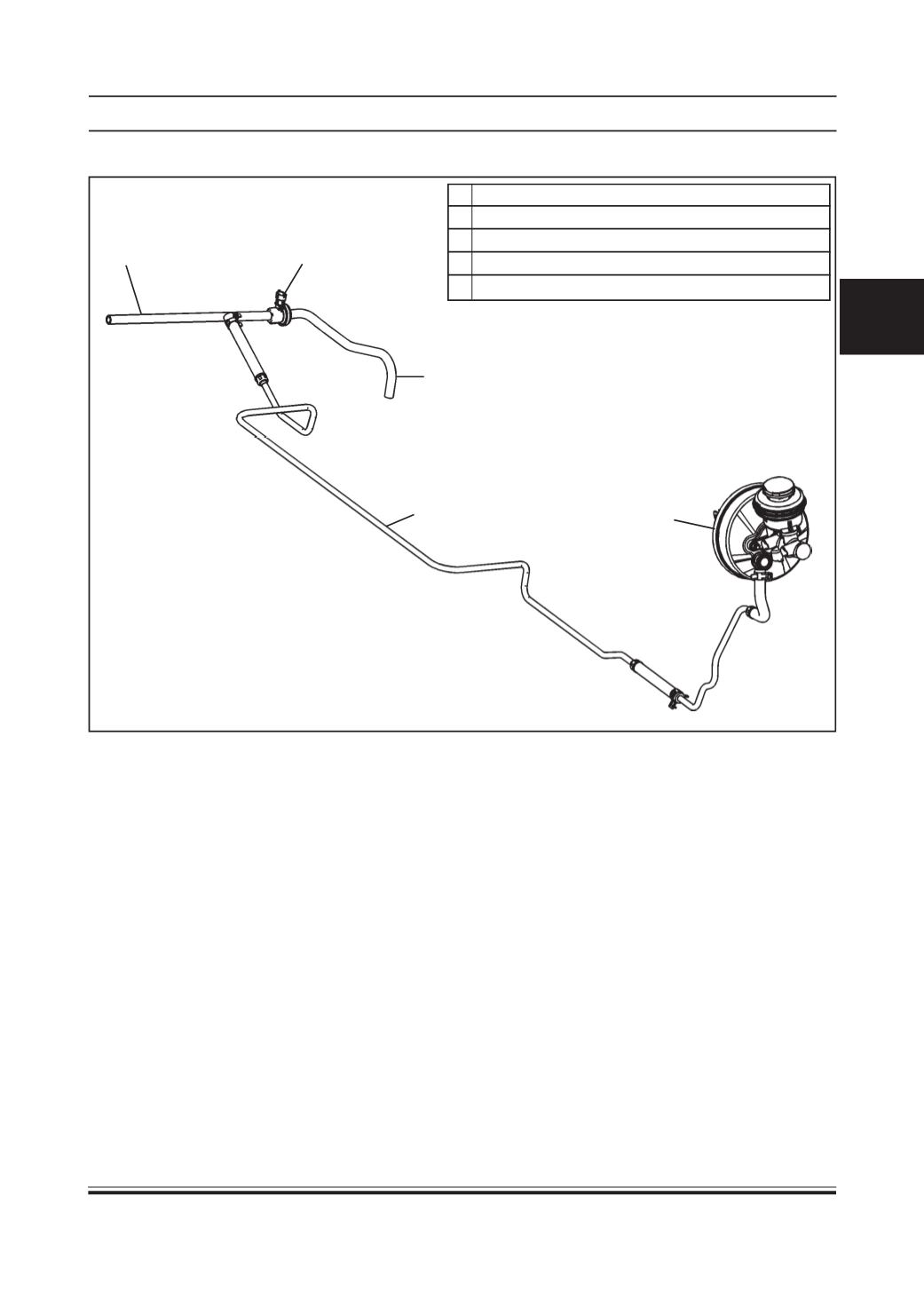

VACUUM LINES
1 Vacuum booster assembly
2 Vacuum lines
3 Hose from canister purge valve to carbon canister
4 Purge valve
5 Hose from purge valve to engine intake manifold
Removal
1. Remove vacuum hose from vacuum booster.
2. Remove the other end of vacuum hose attached to
the hose frompurge valve to engine intake manifold.
(5)
Inspection
1. Inspect vacuum hose for any cut or damage.
Replace if found any.
Installation
1. Connect vacuum hose to brake booster and to the
intake manifold hose. (5)
