BRAKE SYSTEM
499
BRAKES

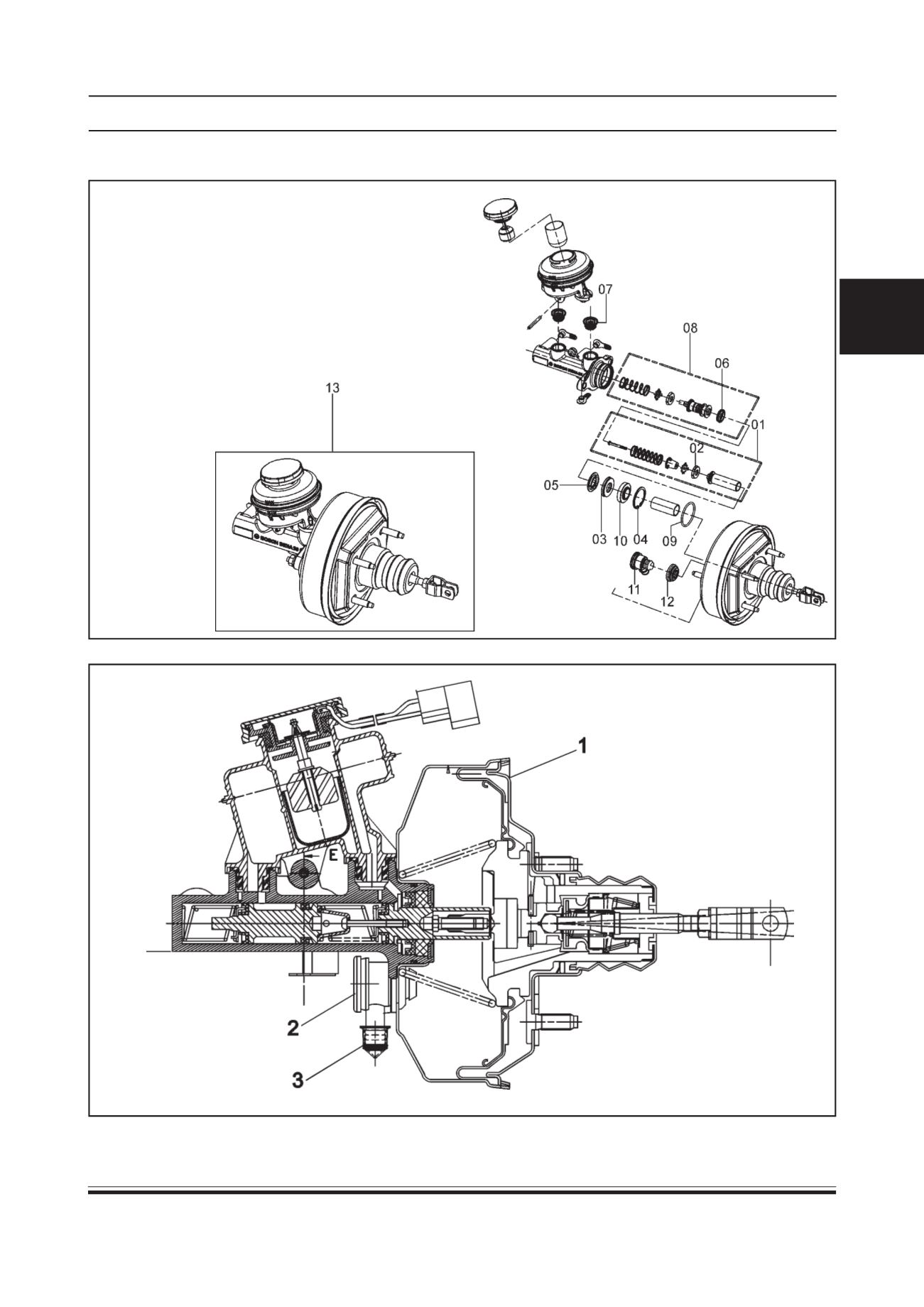

TMC WITH VACUUM BOOSTER ASSEMBLY
Cross Section of TMC with booster
Assembly
1. Vacuum booster assembly
2. Check valve assembly
3. Check valve seal
01 Primary piston assembly
02 Primary seal
03 Cup
04 Circlip
05 Cup retainer
06 Pressure cup
07 Reservoir seal
08 Secondary piston assembly
09 O-ring
10 Piston guide
11 Non return valve
12 Check valve seal
13 Assembly brake booster with TMC
