B. DISC ASSEMBLY

Type: Pre damper X (D) type BAF 737

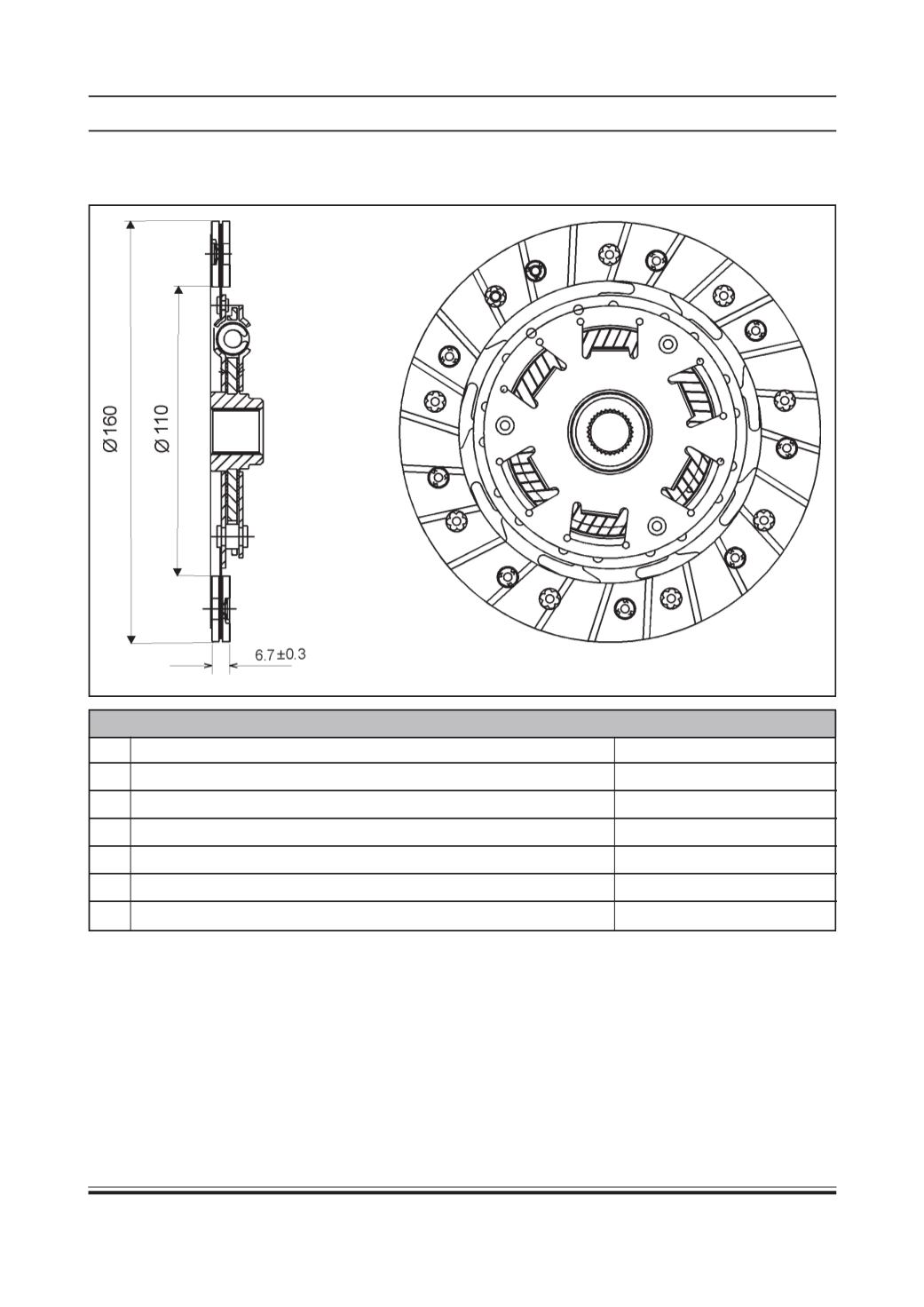

Clutch Disc Specifications

1 Outside diameter

160 mm.

2 Inside diameter

110 mm.

3 Thickness of clutch disc with new lining under 320 kg. load

6.7± 0.3 mm.

4 Flatness of each lining surface of clutch disc

0.4 mm throughout.

5 Maximum permissible imbalance of clutch disc

15 gm-cm.

6 Cushioning of clutch disc

0.75 +/- 0.15

7 Total friction area (both sides)

212
