1174 / 1428
DRIVETRAIN
13

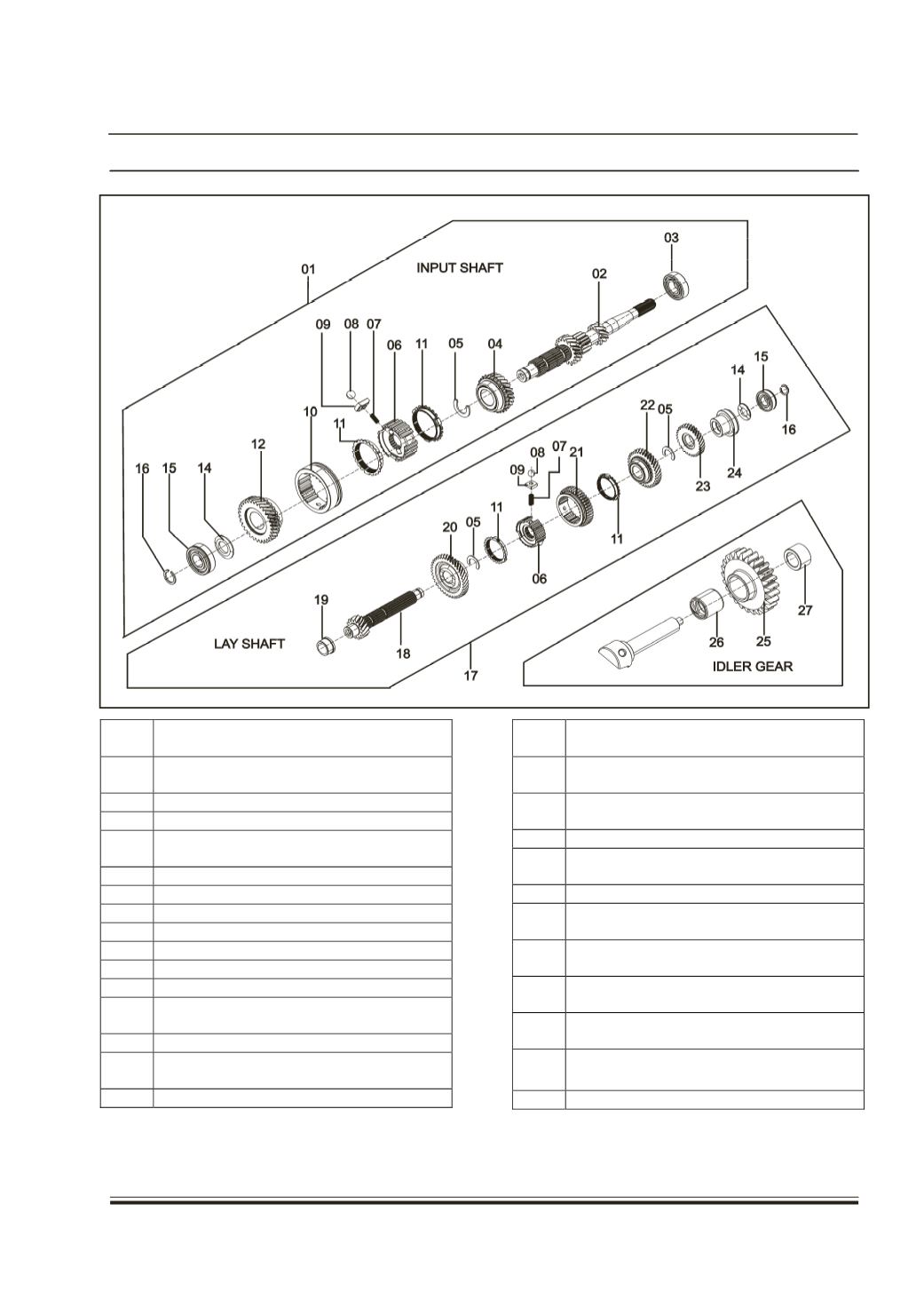

B. INPUT SHAFT AND LAY SHAFT
SR
NO.
DESCRIPTION
01
Assembly input shaft complete - gear
ratios: 3.45/1.9
02
Input shaft
03
Ball bearing
04
Sub assembly 3rd gear input shaft (ratio
29/23)
05
Circlip (thick 2.05)
06
Engaging gear
07
Spring (synchro)
08
Ball 5.556dia
09
Carrier
10
Shifter sleeve (3rd/4th speed)
11
Synchro cone
12
Sub assembly 4th gear input shaft (gear
ratio: 31/26)
14
Spacer input shaft
15
Deep groove ball bearing with snap ring
groove
16
Snap ring (2.15 thick)
SR
NO.
DESCRIPTION
17
Assembly lay shaft complete - gear
ratios: 3.45/1.941
18
Lay shaft 4 speed LT MT GFD ratio: 4.5
(63/14)
19
Cylindrical roller bearing -inner race
20
Sub assembly 1st gear (laser weld
version) soft stage
21
Shifter sleeve (1st/2nd speed)
22
Sub assembly 2nd gear (laser weld
version) soft stage
23
3rd gear lay shaft gear ratio: 1.26
(29/23)
24
4th gear lay shaft; gear ratios 0.838
(26/31)
25
Reverse idler gear (subassembly rev.
Idler gear with
26
Bimetallic bush (subassembly rev. Idler
gear with bime)
27
Spacer (reverse idler gear shaft)
