- Remove the cir clip and thermal coil (Do not reuse a

cir clip)

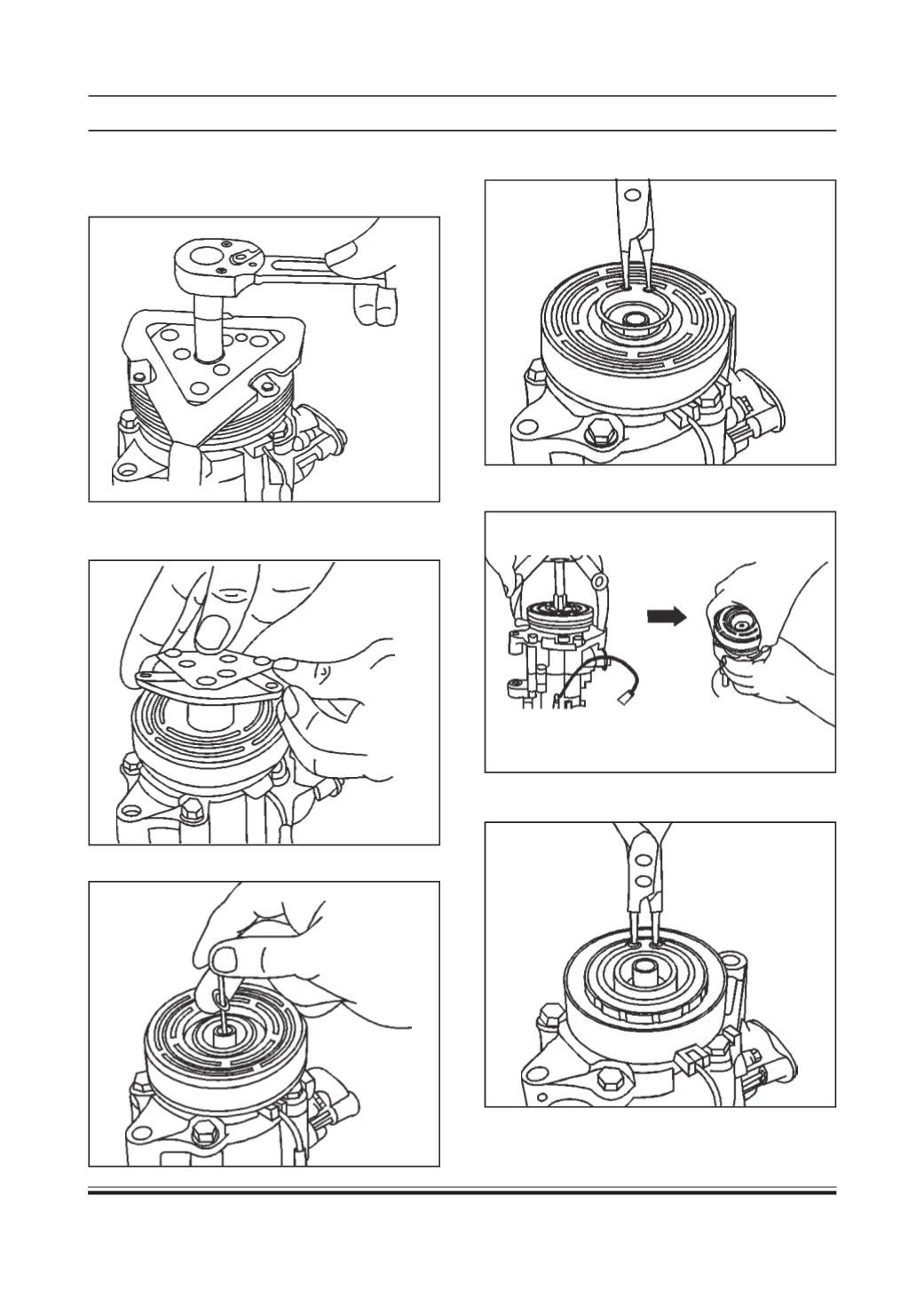

COMPRESSOR CLUTCH DISASSEMBLY

- Remove the armature bolt. (Do not reuse a bolt)

- Remove the armature (Insert shim-pin to prevent from

falling)

- Remove the shim

- Remove the cir clip (Do not reuse a cir clip)

- Remove the clutch pulley.
