SERVICE DETAILS FOR STARTER MOTOR
1. GENERAL DESCRIPTION
The COMSTAR and LTVS Starter Motors are 4-Pole Permanent Magnet Epicyclic Gear Reduction Starter.
3. CUSTOMER FITMENT
•
The Starter is flange mounted location for maintaining the Pinion-Ring Gear centre distance with two mounting
hole.
•
Starter being earth return system, ensure proper earthing of flange mounting and keep the fixing bolt properly
tightened.
•
The battery terminal is M8 x 1.25 and solenoid terminal is M5 x 0.8.

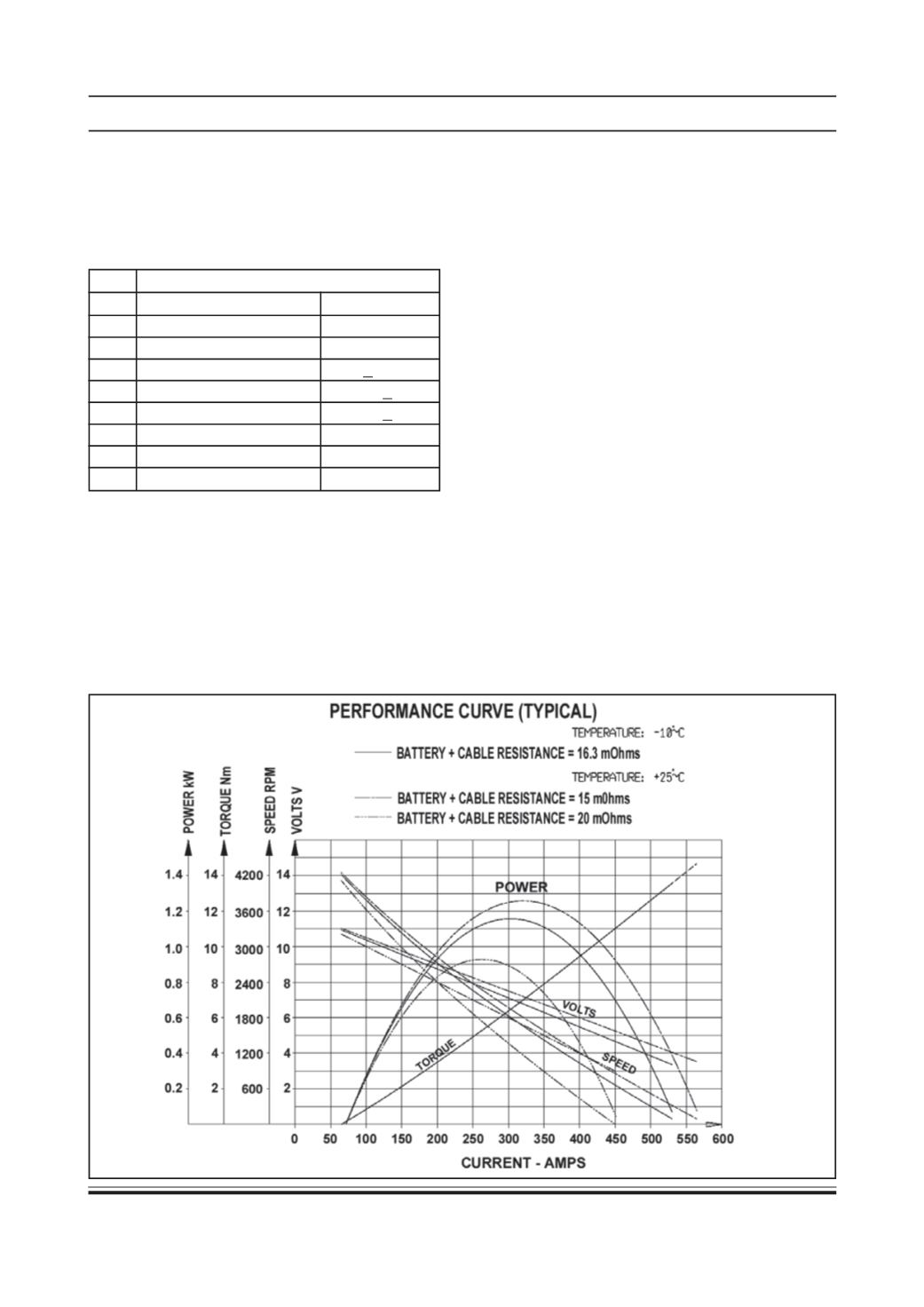

4. TYPICAL PERFORMANCE CURVE
2. PINION DETAILS
No. PINION DETAILS
1.
No. of Teeth
9
2.
Module
2.1167
3.
PressureAngle
12°
4.
Outer Diameter
25.5 + 0.2 Max
5.
Root Diameter
17.55 + 0.15
6.
Dimension over roller
28.65 + 0.05
7.
Correction Factor
0.708
8.
Surface Hardness
57- 65 HRC
9.
Material
Steel
