NANO

544

BRAKE SYSTEM

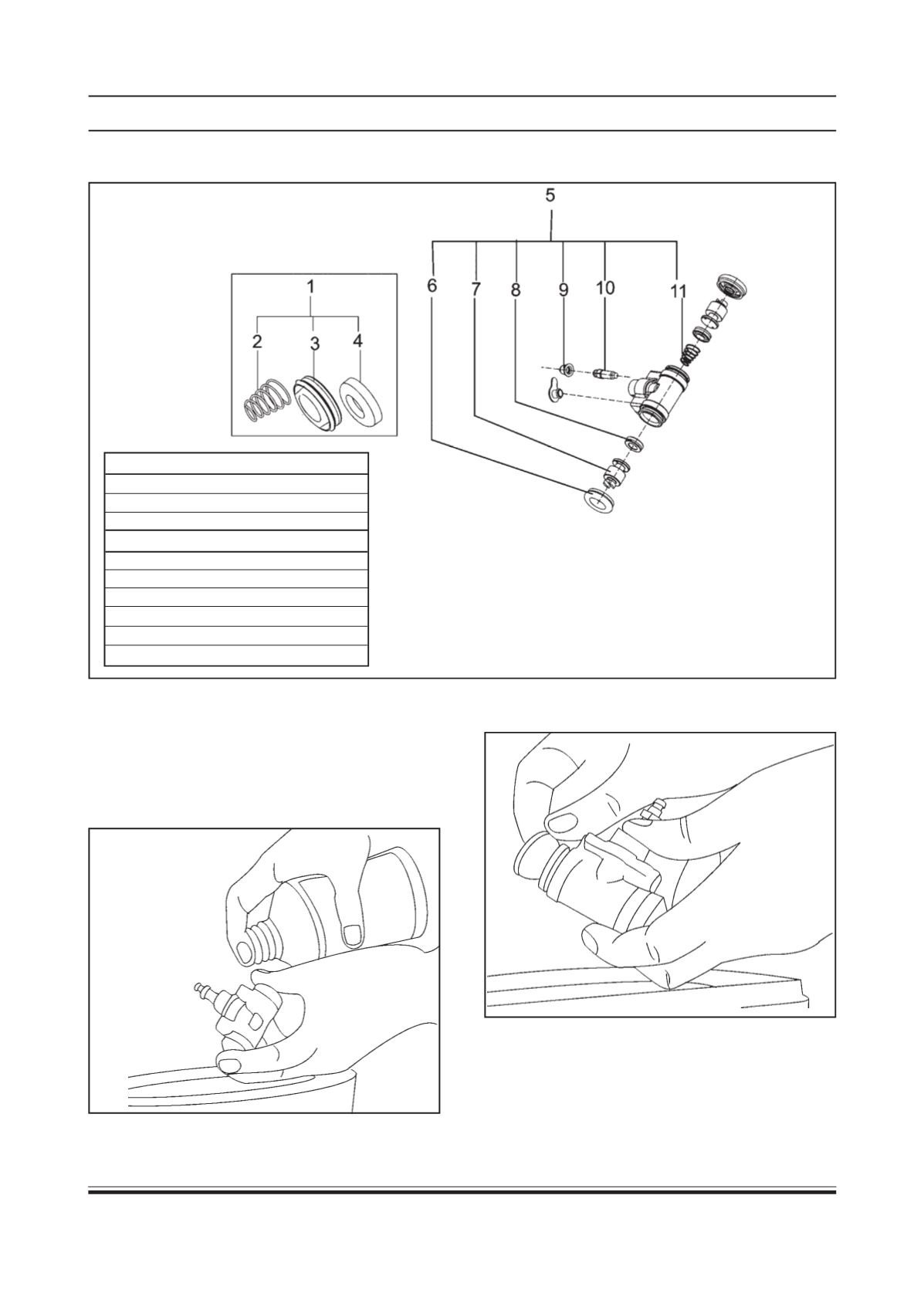

OVERHAULING OF WHEEL CYLINDER ASSEMBLY.

Disassembly

1. Clean the wheel cylinder assembly from out side

with fresh brake fluid.

2. Remove wheel cylinder boot. (3 or 10)

NOTE:

While overhaulingwheel cylinder assembly, refer above

exploded view for better understanding of components.

1 Wheel Cylinder Minor Kit

2 Spring

3 Boot

4 Seal

5 Wheel Cylinder Major Kit

6 Boot

7 Piston

8 Seal

9 Bleeder cap

10 Bleeder screw

11 Spring
