Main Menu:

This is the main form of the application. To perform any functions click the respective button. (F)

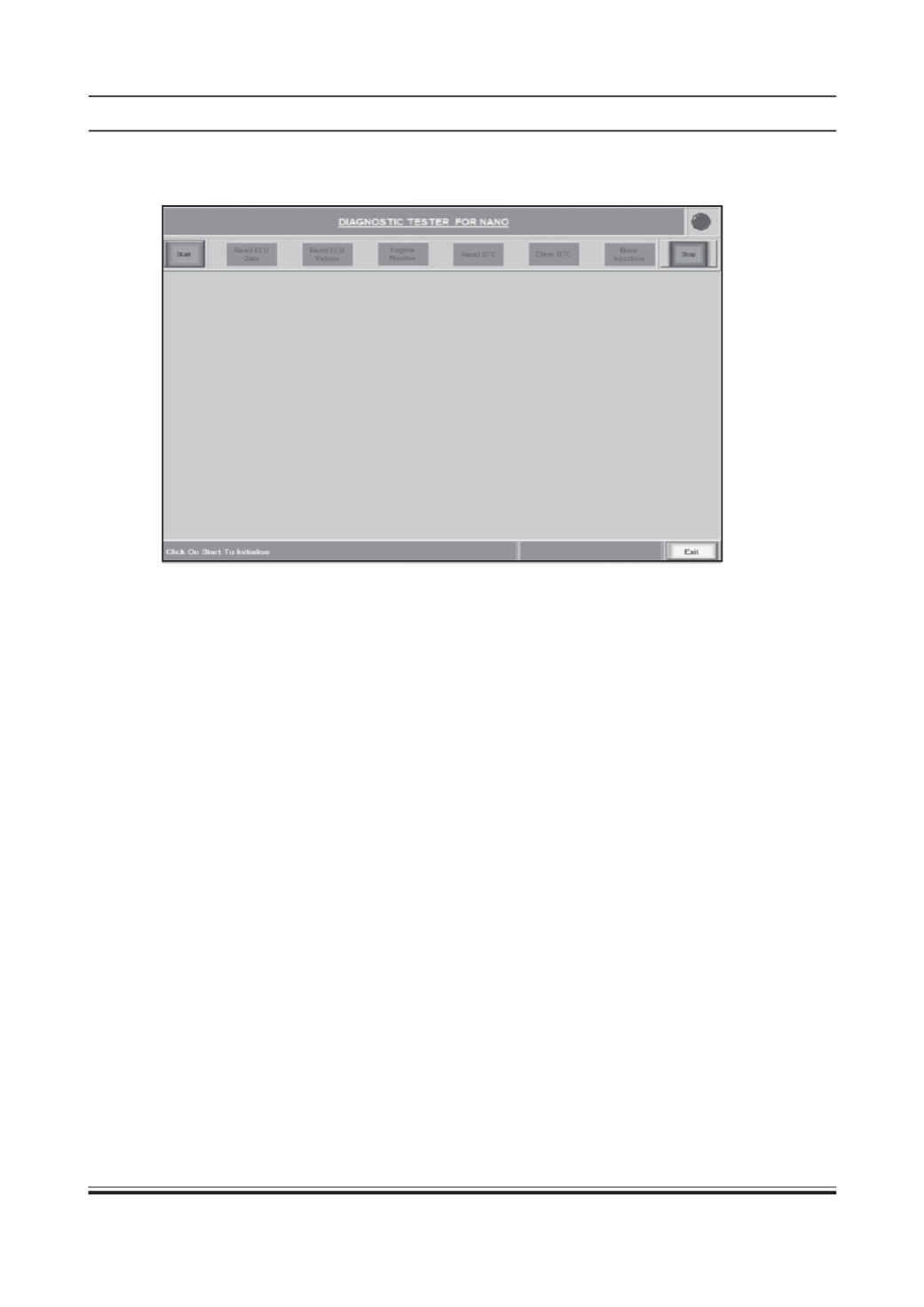

To start the communication between the ECU and the Tester press the ‘START’ button as shown in fig below. This

initializes the ECU and enables the communicator, which is required for further execution of the commands.

If initialization doesn’t happen please click on ‘Start’ again to reinitialize. If still the tester doesn’t initialize refer

troubleshooting at the end of this manual. After the initialization user can execute the Diagnostic functions using

main toolbar.

1. Read ECU Data

2. Read ECU Values

3. Engine Monitor

4. ReadDTC

5. Clear DTC

6. More Functions

• Write ECU

• ECU Reset

• IO Control / Actuator Test

Some additional features which makes the tool more intelligent and user friendly are listed below.

• Freeze frame data

• Instantaneous fuel consumption

• Average fuel consumption in last 5 key On to key Off Cycles.

• Instantaneous vehicle speed.

• Average vehicle speed in last 5 key On to key Off Cycles.

• Fault Tree (Flow Chart)

• History Faults

• Good bad values.
