ENGINE 273 MPFI

•

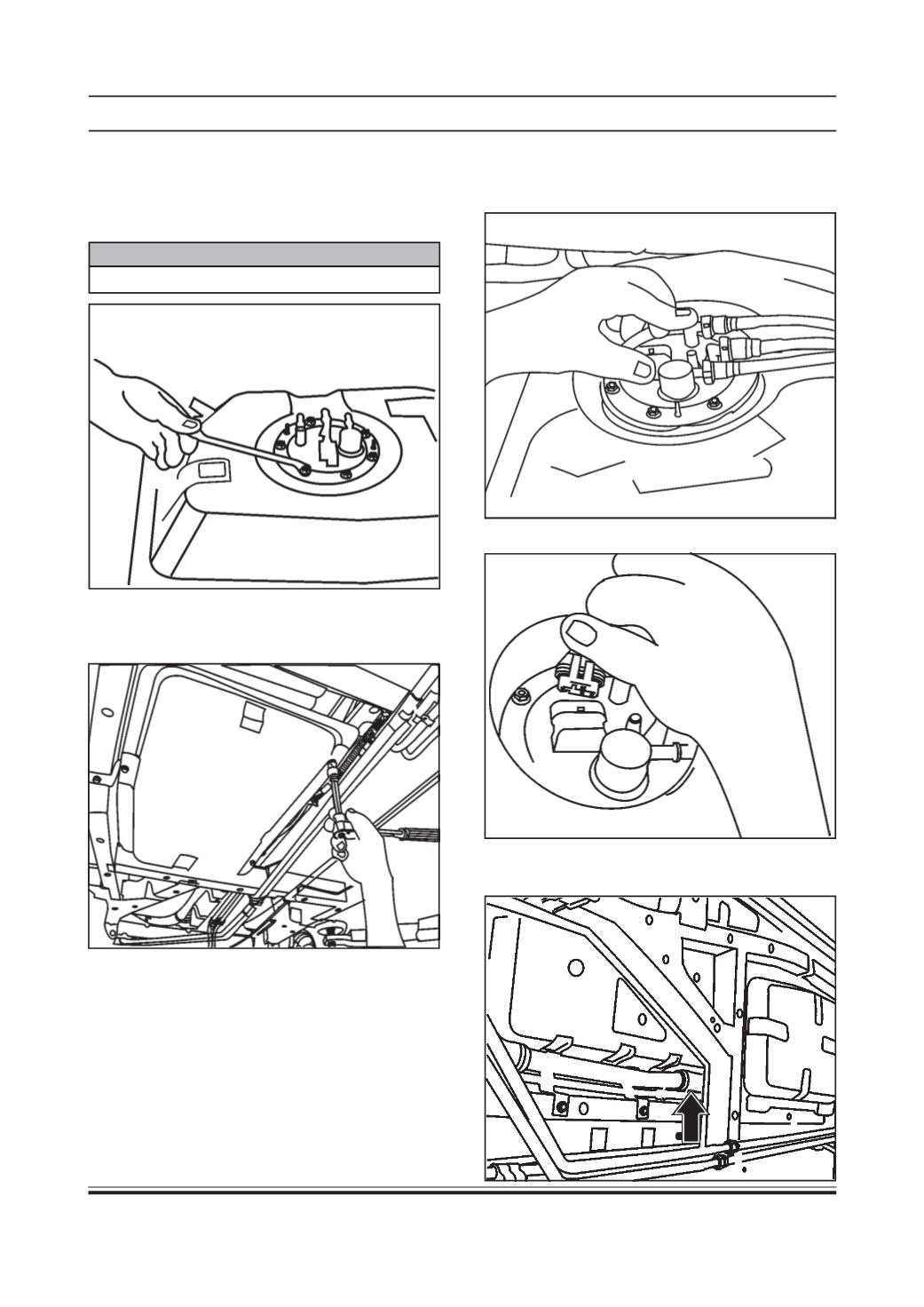

Connect the clamp between filler, breather hose

pipe & middle metal pipe as shown in fig.

•

Assemble fuel tank on the vehicle. Tighten the fuel

tank mounting screw to tightening torque of 2.2

kgm.

•

Connect the three fuel lines of fuel module i.e. Fuel

feed Line, Fuel return Line, Fuel vapour line as

shown in fig.

•

Connect electrical connector of fuel module.

Assembly:

NOTE

Replace fuel module gasket, if found damage.

•

Assemble fuel module to fuel tank. Tighten the fuel

module mounting bolts to tightening torque 0.3 +

0.1 kgm.
