STEERING
1
1.1 GENERAL INFORMATION
1.1.1 SPECIFICATIONS
TYPE
Column mounted Electrical power assisted, Manual Rack and Pinion
steering with Non collapsible fixed column
STEERING WHEEL
3 Spoke & 360 mm Dia.
STEERING WHEEL TURN
3.32
STEERING RATIO
15 : 1

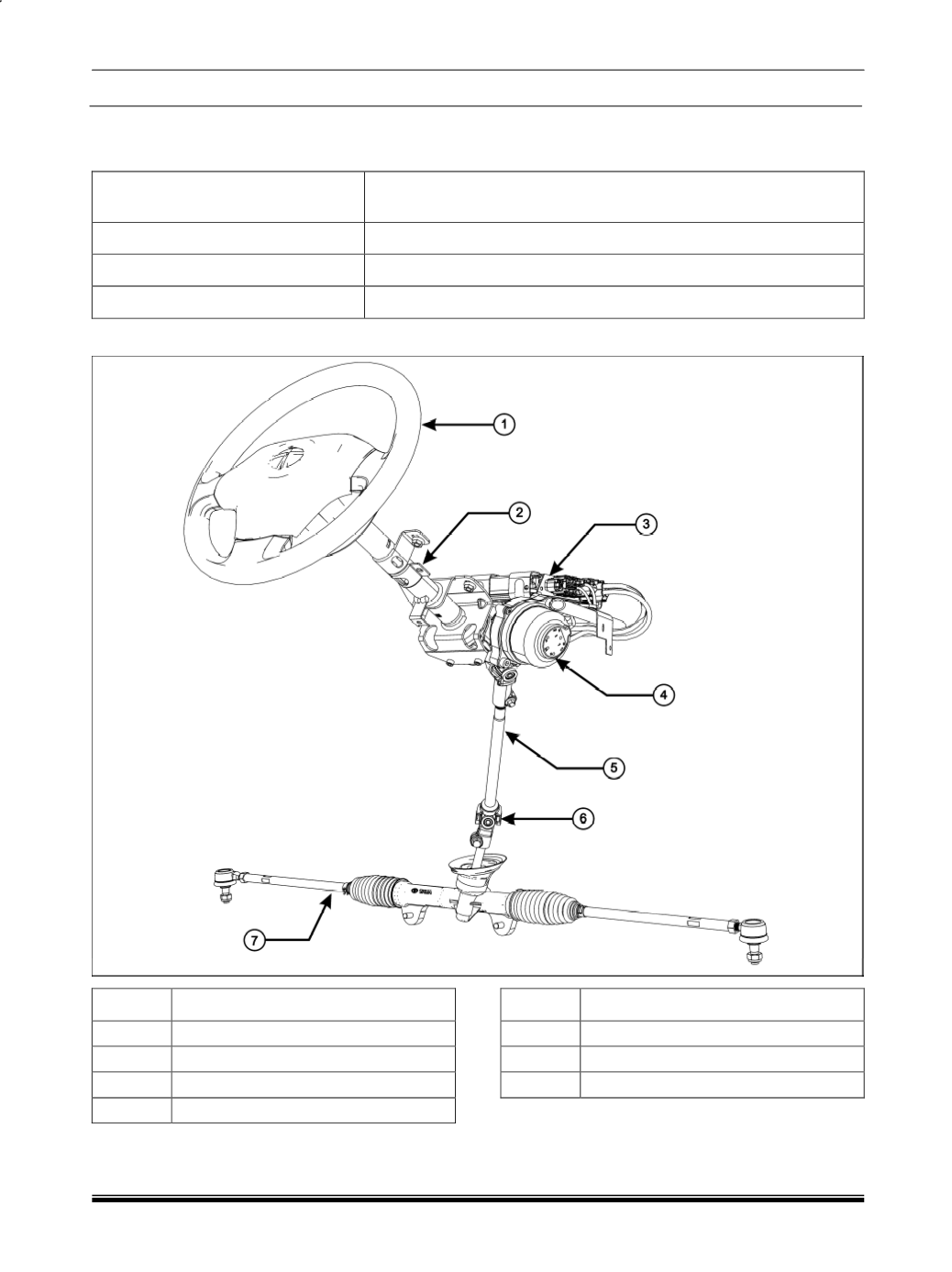

1.1.2 SYSTEM LAYOUT
Sr. No.
DESCRIPTION
1
Steering wheel
2
Fixed Steering column
3
ECU
4
Servo Motor Unit
Sr. No.
DESCRIPTION
5
Intermediate shaft
6
Universal Joint
7
Rack and pinion assembly.
