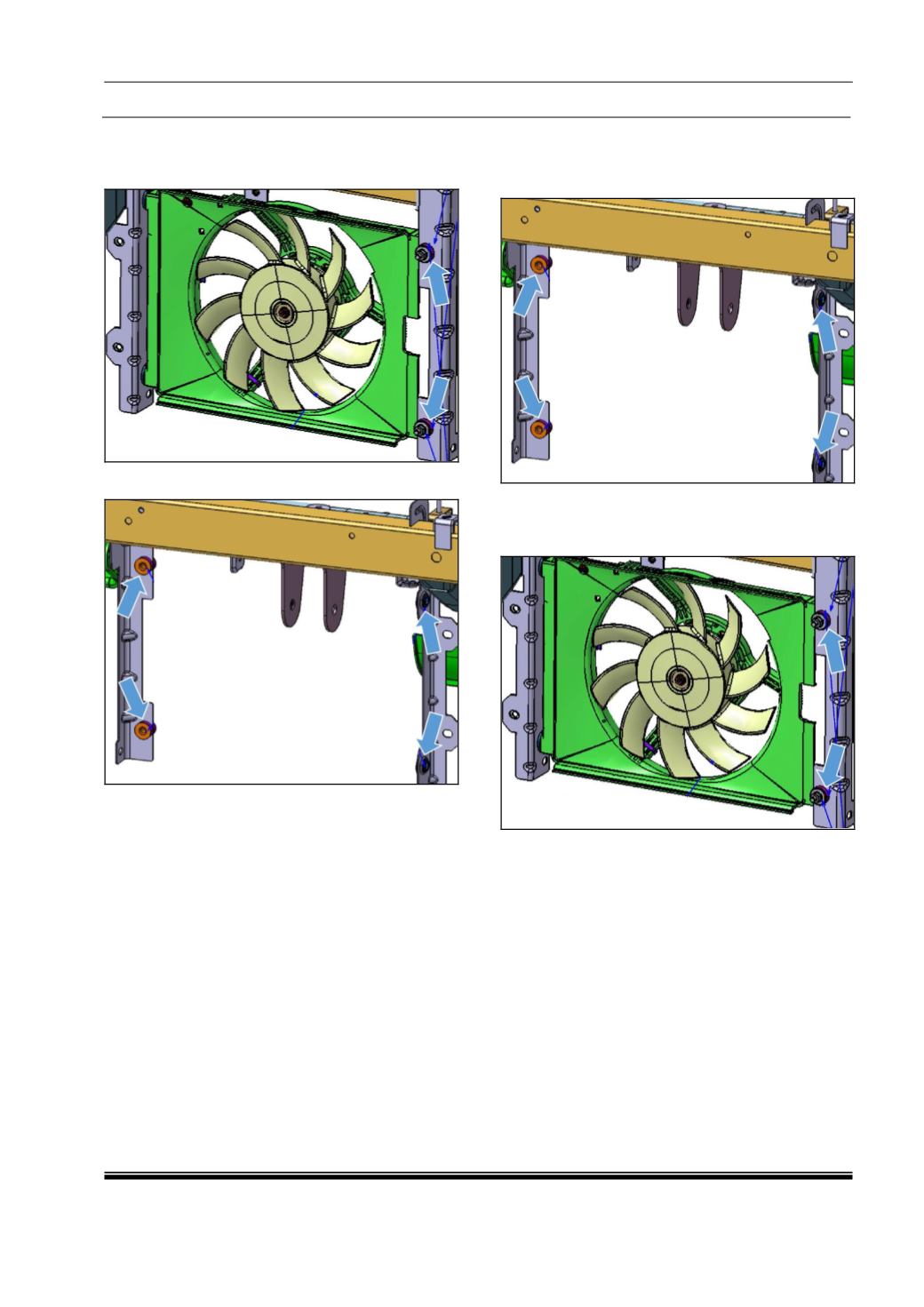

6. Remove the exhaust fan bracket bolt, nut

(Quantity 2 each) and washers (Quantity 4)

form grommet and take out the exhaust fan.

7. Remove all 4 grommet form welded bracket.

Installation:

1. Fit all 4 grommet on welded bracket (do not

reuse the grommet).

2. Fit exhaust fan bracket bolt and nut (Quantity 2

each) with washer (Quantity 4) in grommet and

tighten it as per specified torque. (5. ± 1 Nm).
