TRANSAXLE (NANO AMT)
75

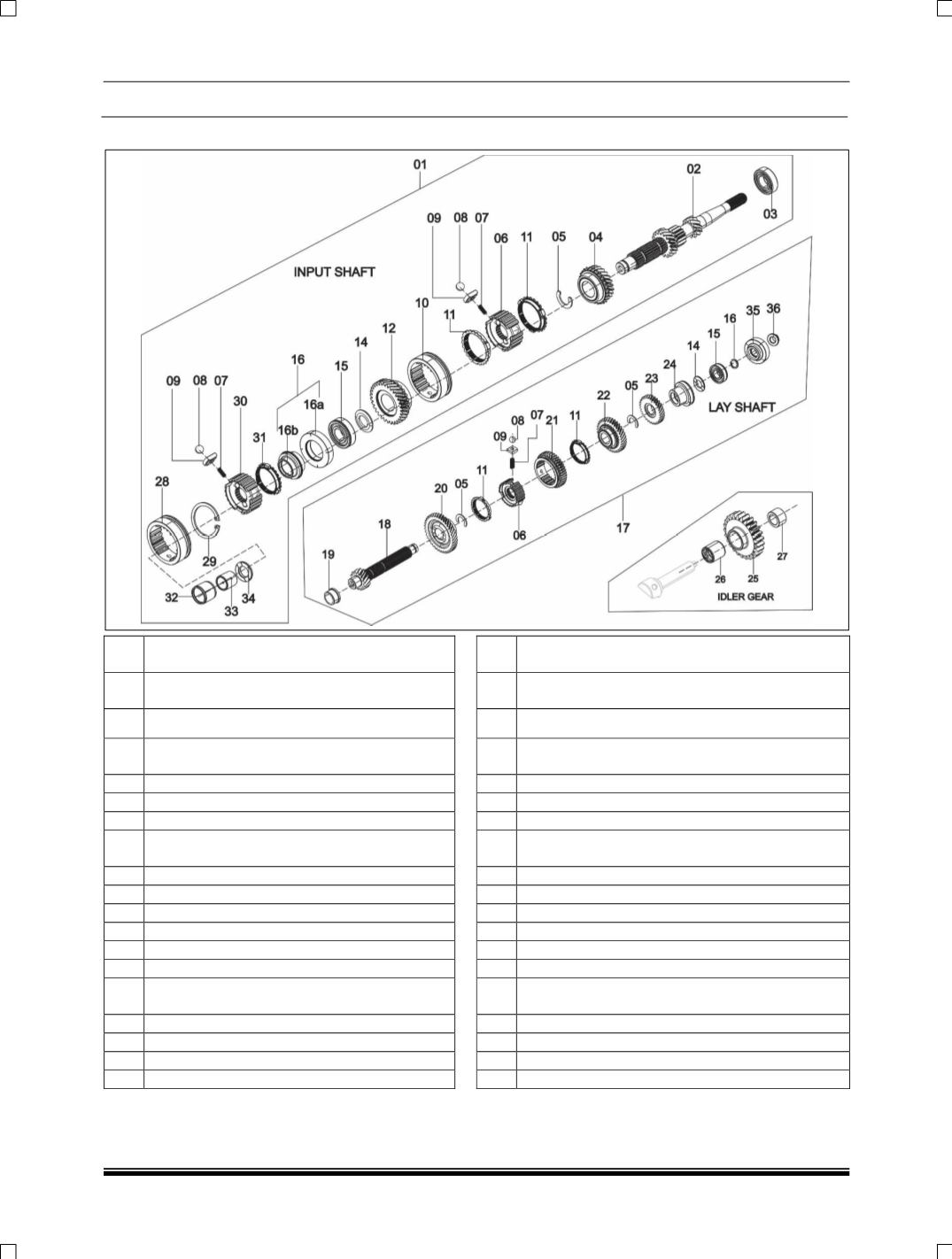

B. INPUT SHAFT AND LAY SHAFT:
SL
NO
DESCRIPTION
SL
NO
DESCRIPTION
01 ASSEMBLY INPUT SHAFT
20 SUB ASSY 1ST GEAR (LASER WELD
VERSION)
02 INPUT SHAFT
21 SHIFTER SLEEVE (1ST/2ND SPEED)
03 BALL BEARING (INPUT SHAFT FRONT
END)
22 SUB ASSY 2ND GEAR
04 SUB ASSY 3RD GEAR INPUT SHAFT
23 3RD GEAR LAY SHAFT
05 CIRCLIP
24 4TH GEAR LAYSHAFT
06 ENGAGING GEAR
25 REVERSE IDLER GEAR
07 SPRING (SYNCHRO)
26 BIMETALIC BUSH (SUBASSY REVERSE.
IDLER GEAR WITH BIME
08 BALL 5.556DIA
27 SPACER (REVERSE IDLER GEAR SHAFT)
09 CARRIER
28 SHIFTER SLEEVE 5TH SPEED
10 SHIFTER SLEEVE (3RD/4TH SPEED)
29 INTERNAL CIRCLIP
11 SYNCRO CONE;1ST/2ND 3RD/4TH
30 ENGAGING GEAR 5TH GEAR LAY SHAFT
12 SUB ASSY 4TH GEAR INPUT SHAF
31 SYNCHRO CONE; 5TH GEAR
14 SPACER INPUT SHAFT
32 NEEDLE CAGE (4
TH
& 5
TH
GEAR)
15 DEEP GROOVE BALL BEARING WITH
SNAP RING GROOVE
33 BUSH (4TH AND 5 TH SPEED INPUT
SHAFT)
16 SUB ASSY 5TH GEAR I/P SHAFT
34 SPACER (INPUT SHAFT)
17 ASSY LAY SHAFT
35 5TH GEAR LAY SHAFT
18 LAYSHAFT FINAL DRIVE
36 LOCK NUT (LAYSHAFT / INPUT SHAFT)
19 CYL.ROLLER BEARING-INNER RACE
