HVAC
Installation
1. Tighten two screws of condenser fan motor.
2. Install condenser fan wheel on shroud by fixing the
circlip.
3. Assemble condenser shroud, fan and motor with
condenser assembly.
4. Install condenser assembly on vehicle. (Refer
condenser assembly installation procedure)
4. Remove two screws of condenser fan motor
5. Take out condenser fan motor.

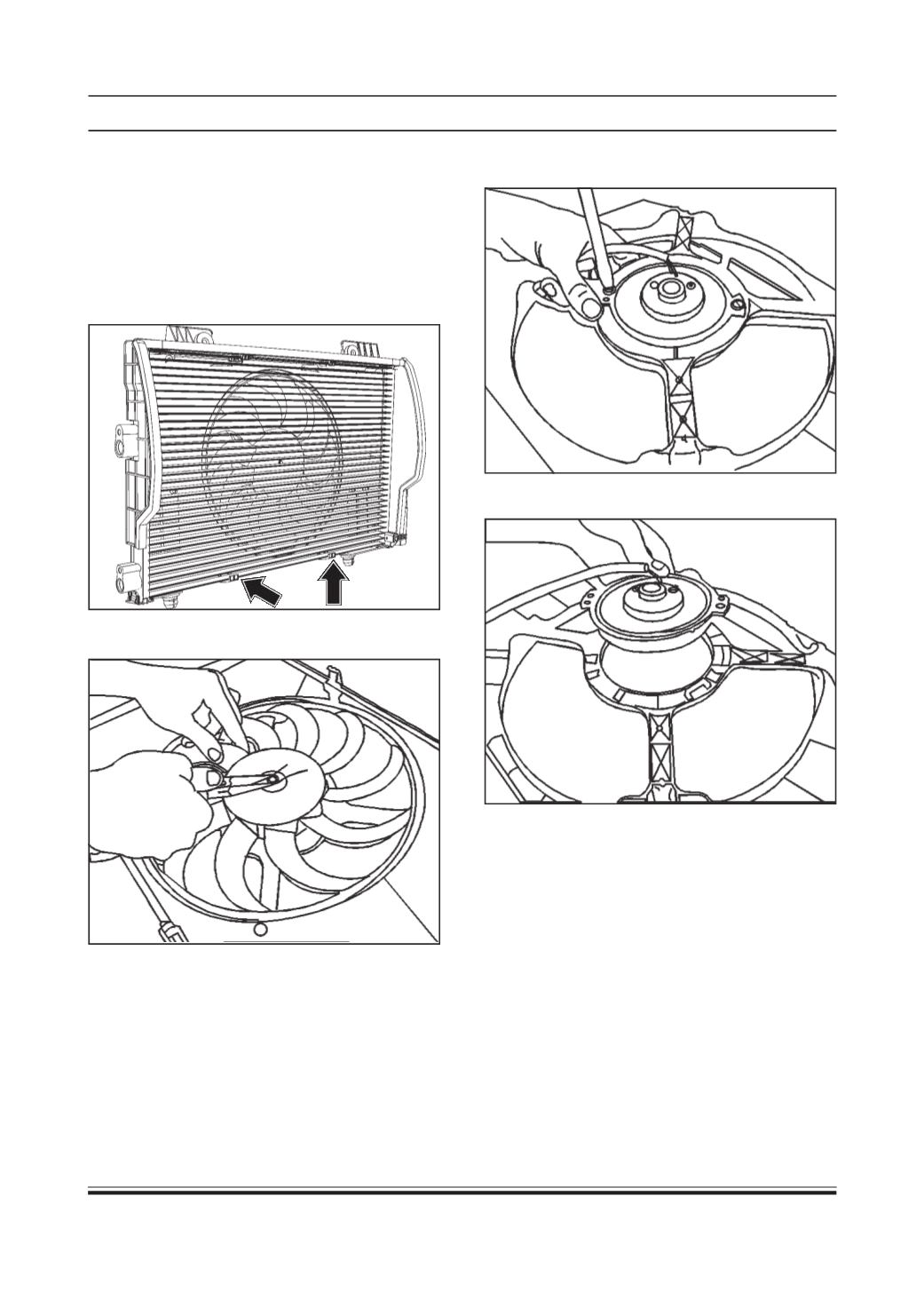

CONDENSER FAN AND CONDENSER
MOTOR
Removal
1. Remove condenser assembly from vehicle.
(Refer Condenser assembly removal procedure)
2. Dismantle condenser assembly from condenser
shroud by prying out shroud.
3. Remove the circlip and take out condenser fan.
