4.1.1 GENERAL INFORMATION
TECHNICAL SPECIFICATION

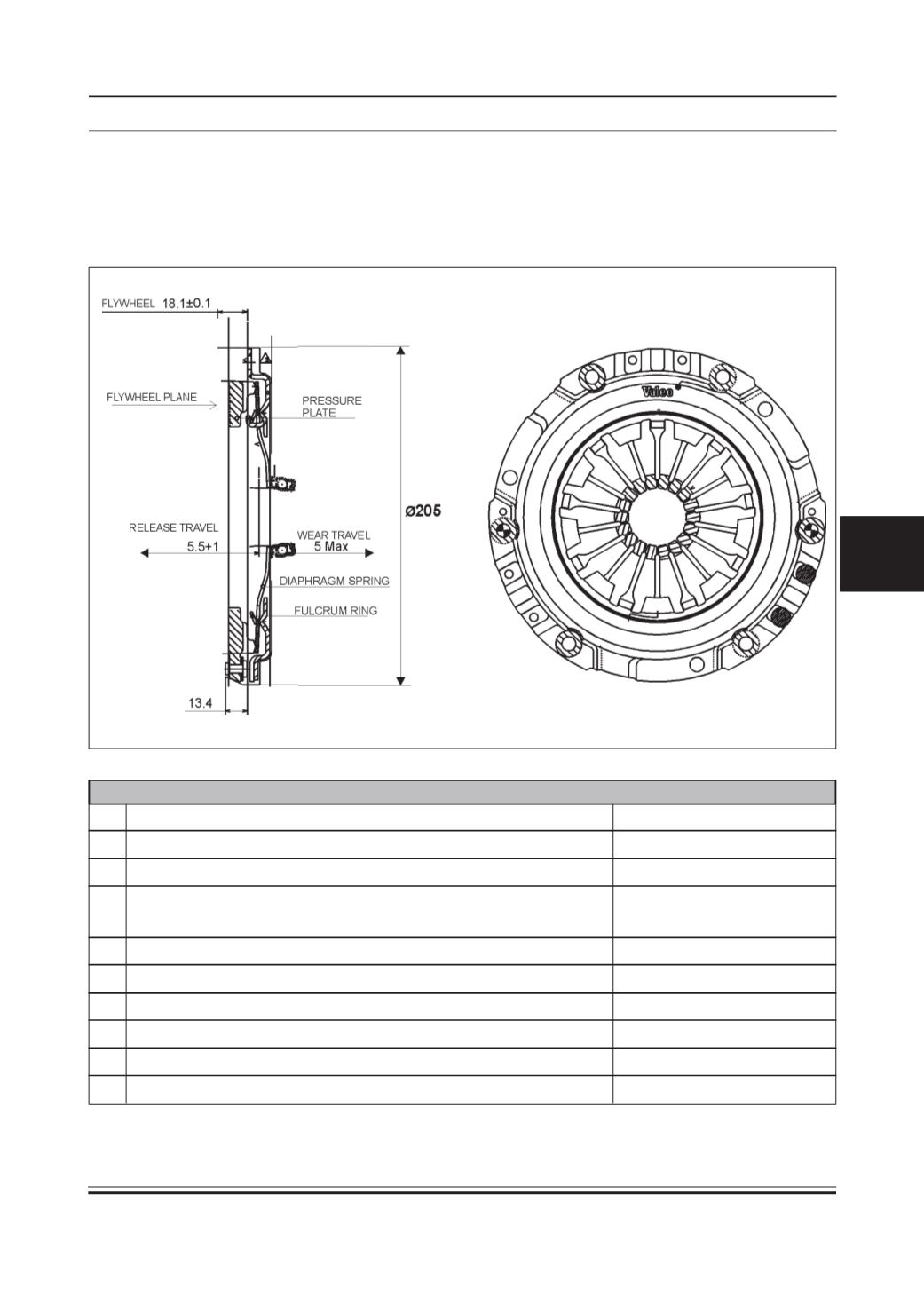

A. Clutch Pressure Plate
Type: Single Disc, Dry Friction, Diaphragm spring type
Clutch Pressure Plate
1. Maximum height of pressure plate housing frommounting face
18.1 +/- 0.1 mm.
2. Height of diaphragm spring (finger) from cover mounting surface
13.4 ± 1.1 mm.
3. Maximum permissible imbalance of pressure plate assembly
150 gm-mm.
4. Maximum permissible face run out of release bearing
0.6 mm. Max. @ 44 mm dia.
contact surface of diaphragm
5. Clamp load (minimum on unloading curve)
175 kg.
6. Maximum release load (new clutch)
60 +/- 5 kg.
7. Release travel
5.5 +1mm.
8. Maximumwear travel
5 mm.
9. Minimum pressure plate lift for release travel of 5.5 mm
1.4 mm.
10. Maximum disc wear value
14 mm Max.
