ENGINE 273 MPFI

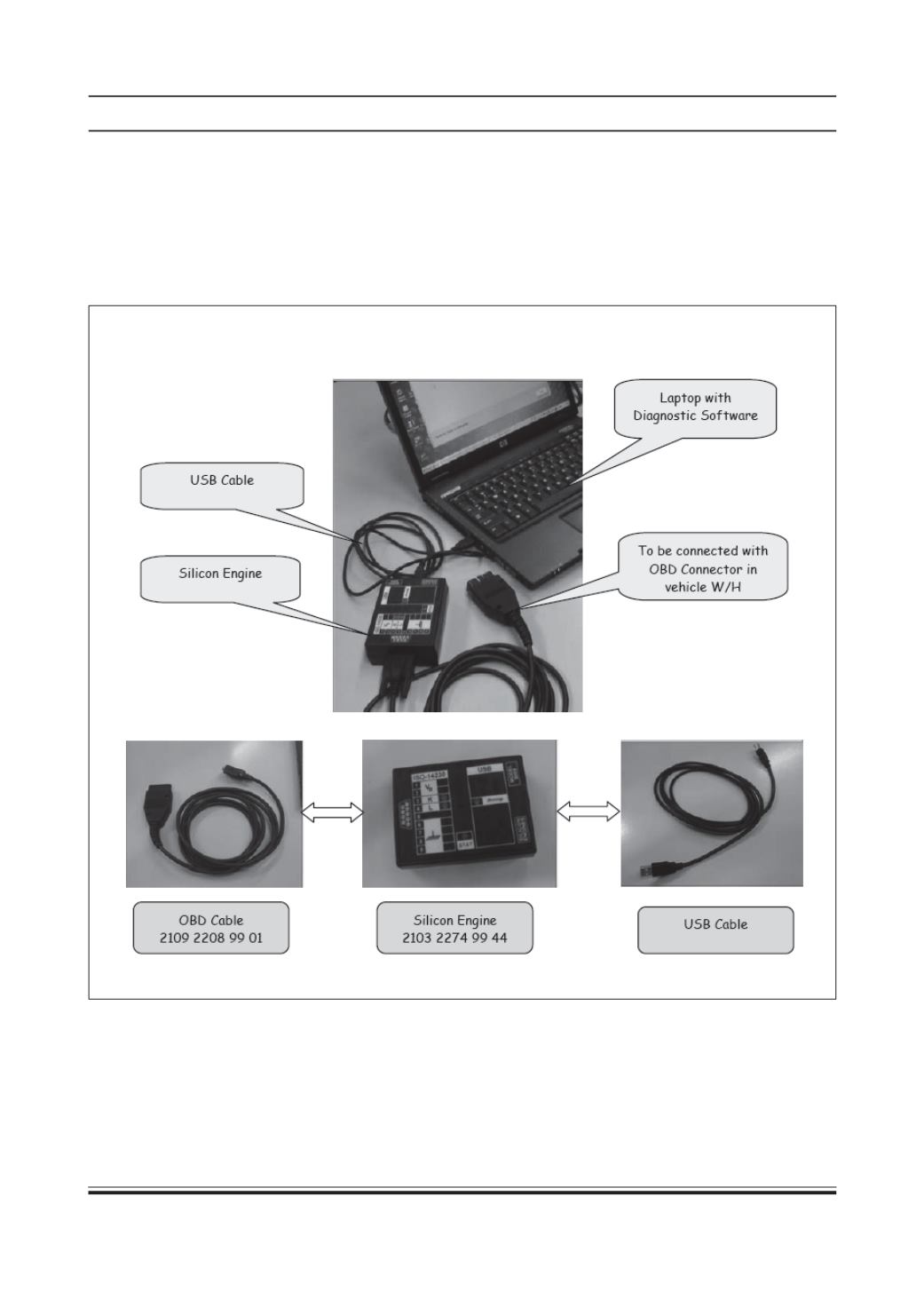

Connection Details:
Required Power Supply:
Power Supply for the Laptop/Desktop
The Interface Unit does not require any external power supply. It works on vehicle battery provided through the
OBD cable.
Connect the RS232 / USB Cable to the Laptop/Desktop COM Port.
The OBD cable is connected to the Diagnostic connector of the wiring harness.
