ENGINE COOLING COMPONENTS

16

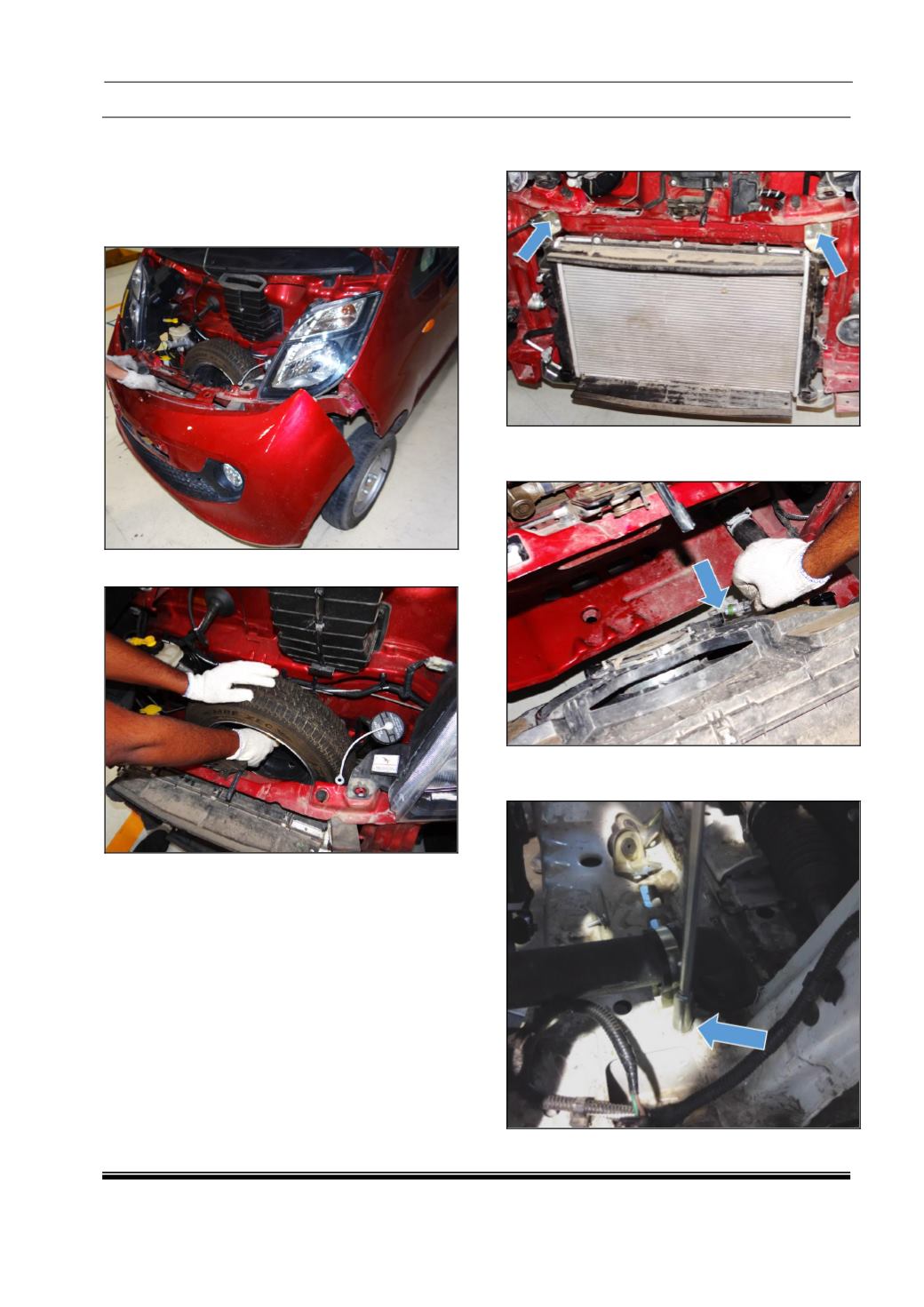

4.0 RADIATOR FAN REMOVAL AND RE-

FITMENT PROCEDURE:-

Removal:

1. Remove the front bumper and bumper clips

as instructed in earlier procedure.

2. Remove the spare wheel.

3. Remove the radiator top mounting bracket

bolts.

4. Remove the radiator fan wiring harness

connector.

5. Remove the RH side hose mounting clamp

nut.
