ENGINE 273 MPFI
147
ENGINE
•

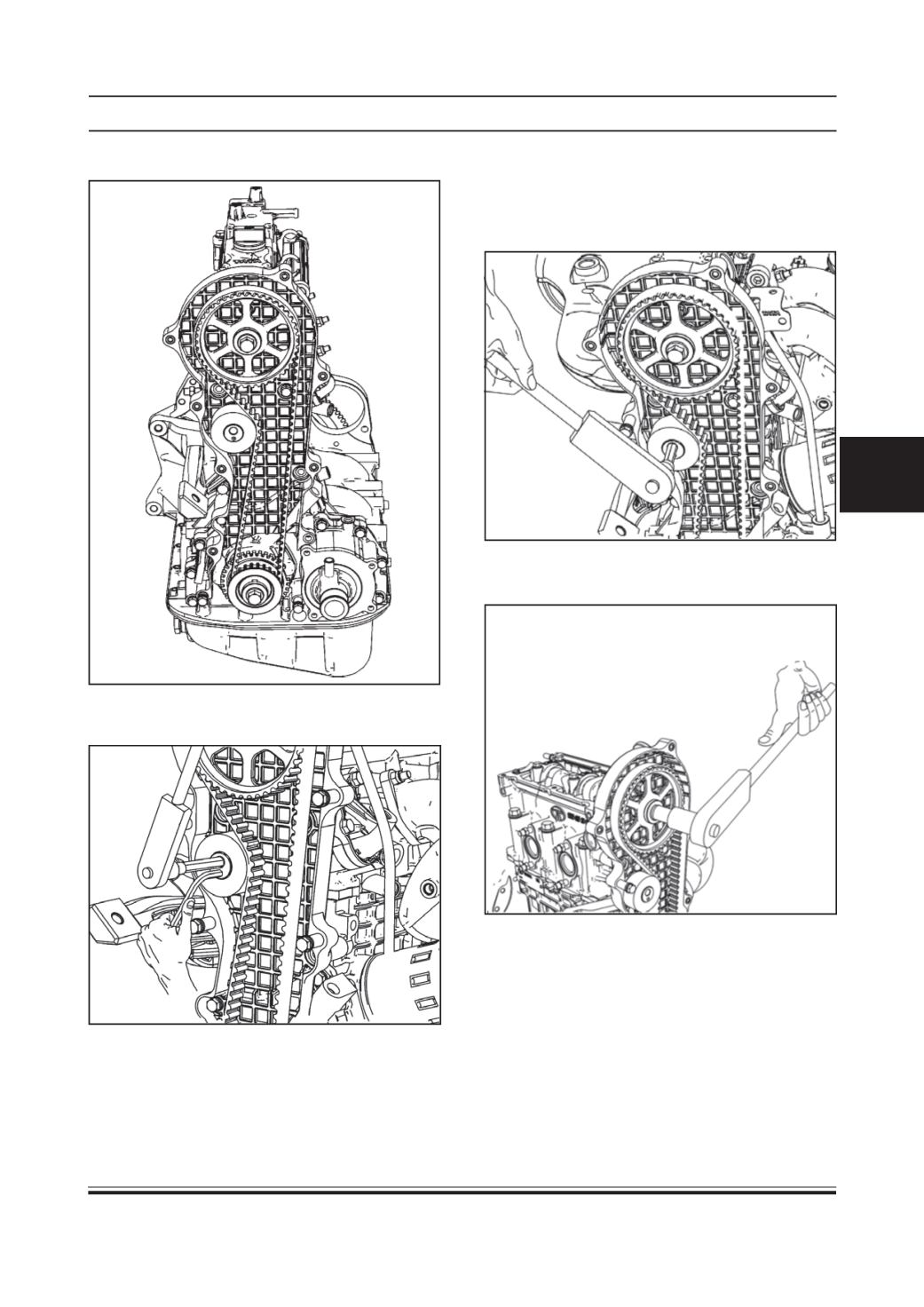

Fit the timing belt in the proper sequence.
•
Adjust the timing belt tension by rotating the
tensioner clockwise using allen key.
•
Tighten the tensioner mounting bolt to the specified
torque. Check timing belt tension. It should be
between 65 - 75 Hz for new belt on longest span.
Note:
Timing belt should not be retensioned.
•
Tighten the camshaft gear bolt with the specified
torque.
