DRIVETRAIN
16

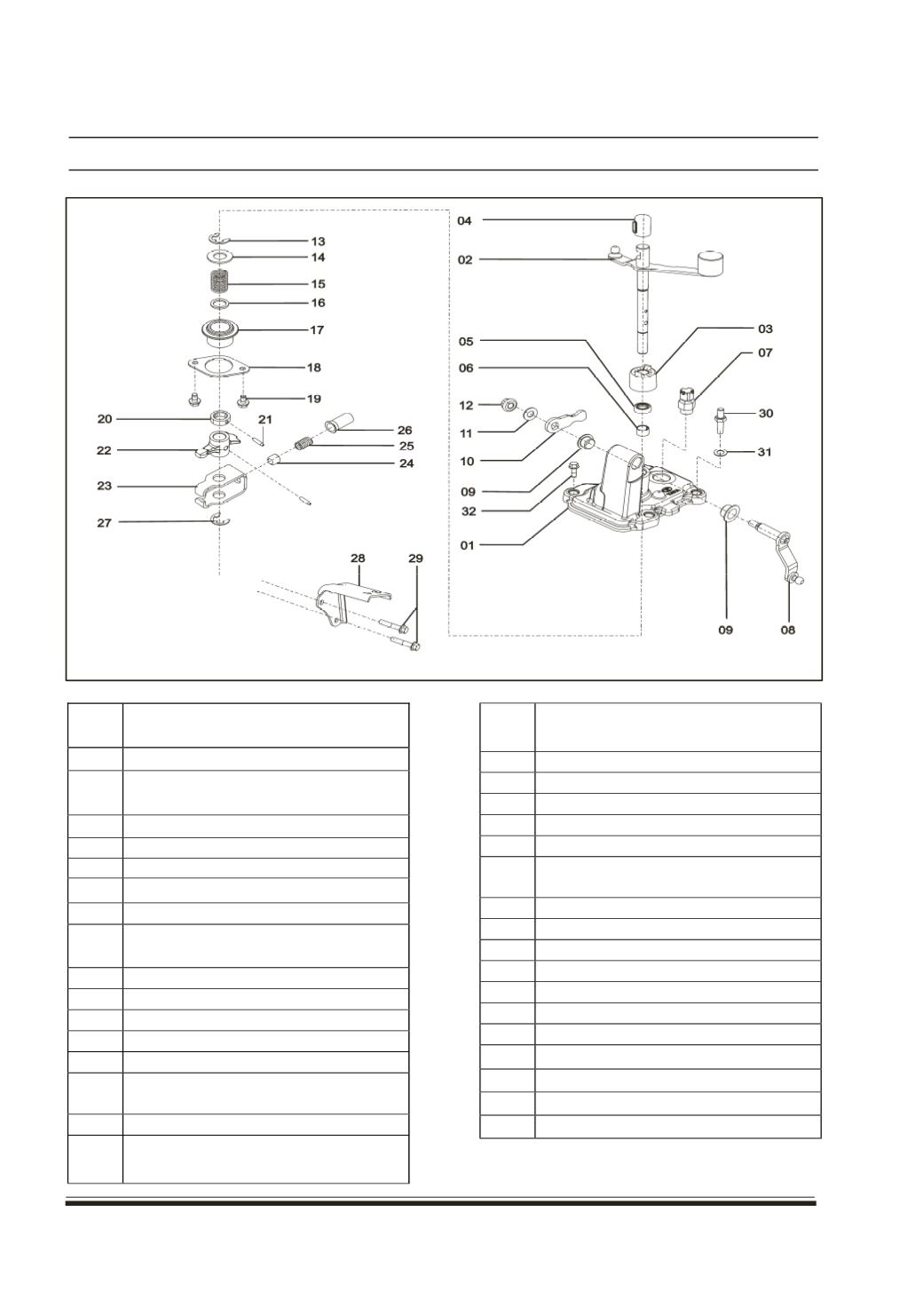

E. TOP COVERASSEMBLY
SR
NO.
DESCRIPTION
01 Top cover housing MT 3.3 thick
02
Assy. Selector shifter shaft (assy. Top
cover)
03 Dust cap
04 Bellow selector shifter shaft
05 Oil seal (selector shifter shaft)
06 Bush (selector shifter shaft)
07 Assembly breather
08
Assembly selector crank lever (
assembly top cover complete
09 Bush (assembly top cover complete)
10 Selector plate (assembly top cover
11 Bright washer 8.4
12 Hexagonal flange nut am8
13 Circlip 12x1.3
14
Upper spacer (assembly top cover
complete)
15 Selection spring (assembly top cover
16
Lower spacer (assembly top cover
complete)
SR
NO.
DESCRIPTION
17 Selection bush (assembly top cover
18 Holding plate (assembly top cover
19 Hexagonal flange screw M6X12
20 Spacer
21 Spiral pin 4 X 24
22
Selector shifter finger (assembly
interlock piece)
23 Interlock piece (assembly interlock
24 Central detent
25 Spring outer ( central detent )
26 Barrel (central detent)
27 Spiral pin (6X28)
28 Bracket catcon mounting on gear box
2 Hex fl bolt M8X40
29 Pillar bolt (for top cover mounting)
30 Spring washer B8
31 Hexagonal flange bolt M8X25
32 Hexagonal flange bolt M8X40
