DRIVETRAIN
12
2.
OVERHAULING

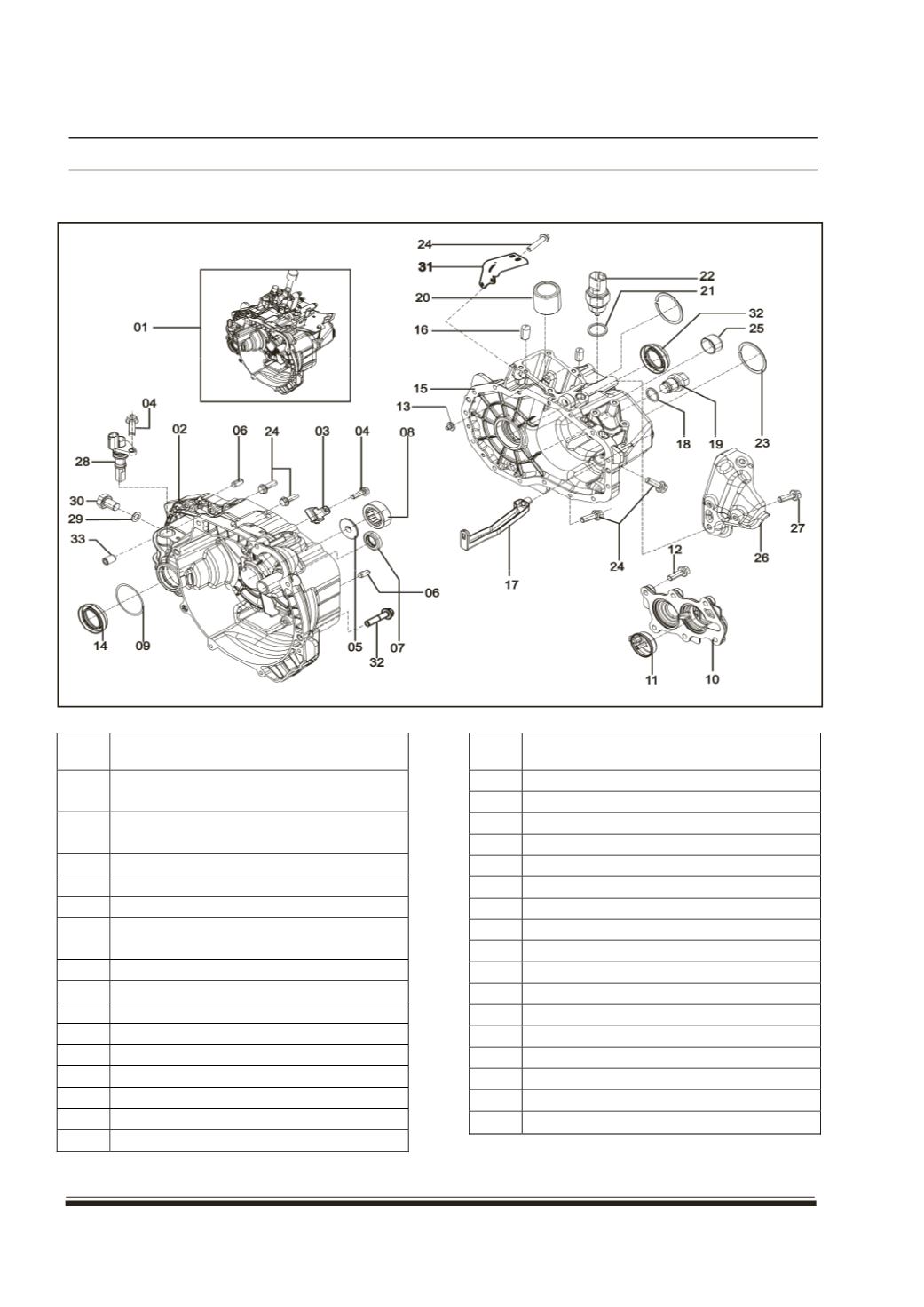

(EXPLOADED VIEWS)
A. TRANSAXLE HOUSING
SR
NO.
DESCRIPTION
01
Assembly TA59 4sp MT ratio4.5
gasoline9.7cr&bifuel
02
Front half housing 3.3 thick assembly
TA59 lt pe
03
Oil collector front half
04
Hexagonal flange screw M6X16
05
Oil collector (front half)
06
Cyl.pin (housing front half to housing
rear half)
07
Oil seal input shaft
08
Cylindrical roller bearing -outer race
09
Shim (assembly diff.) 0.05 thick
10
Rear cover (3.3 thick).
11
Oil collector (rear cover)
12
Hexagonal flange bolt M8X25
14
Pin (interlock)
15
Oil seal drive shaft
16
Rear half housing MT 3.3 thick assy.
SR
NO.
DESCRIPTION
17
Cylinder pin 6M6X12
18
Oil channel (rear half)
19
Magnetic drain plug
20
Needle bearing
21
Sealing washer
22
Reverse lamp switch
23
Snap ring
24
Hexagonal flange bolt m8x40
25
Cap shifter shaft
26
Assembly B mounting bracket
27
Hexagonal flange screw M10X25
28
Vehicle speed sensor
29
Sealing washer 8X14
30
Hexagonal screw M8X1X12
31
Bracket catcon mounting on gear box
32
Hexagonal flange bolt M8X45
33
Set screw M8x12
