NOTE :

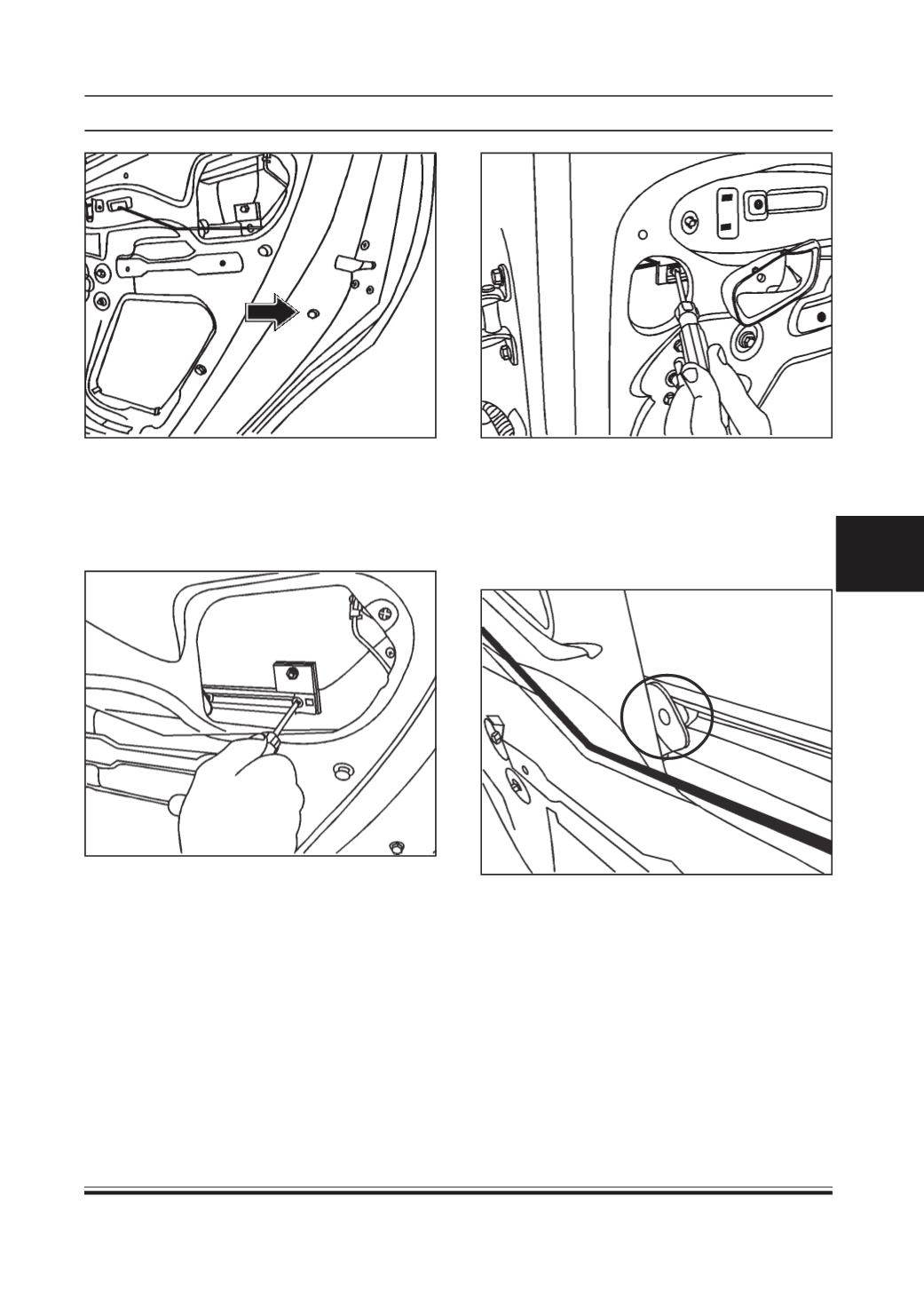

Adjust the window glass such that two screws securing
window glass to glass clip can be accessible.
7. Remove two screws and take out the window glass
carefully.
Installation
1. Carefully insert and slide the glass inside glass
run mould (GRM) to ensure its free movement.
2. Insert the glass clip into the window winding
mechanism such that glass clip can slide over
window winding mechanism.
3. Assemble window glass with glass clip by
tightening two screws.
4. Tighten two bolts of guide channel.
5. Tighten two screws and fix corner outer trim.
6. Fit outer weather strip.
7. Tighten two screws and fix corner inner trim.
8. Fit inner weather strip.
9. Fit door pad.
