STEERING
15
1.3. OVERHAULING

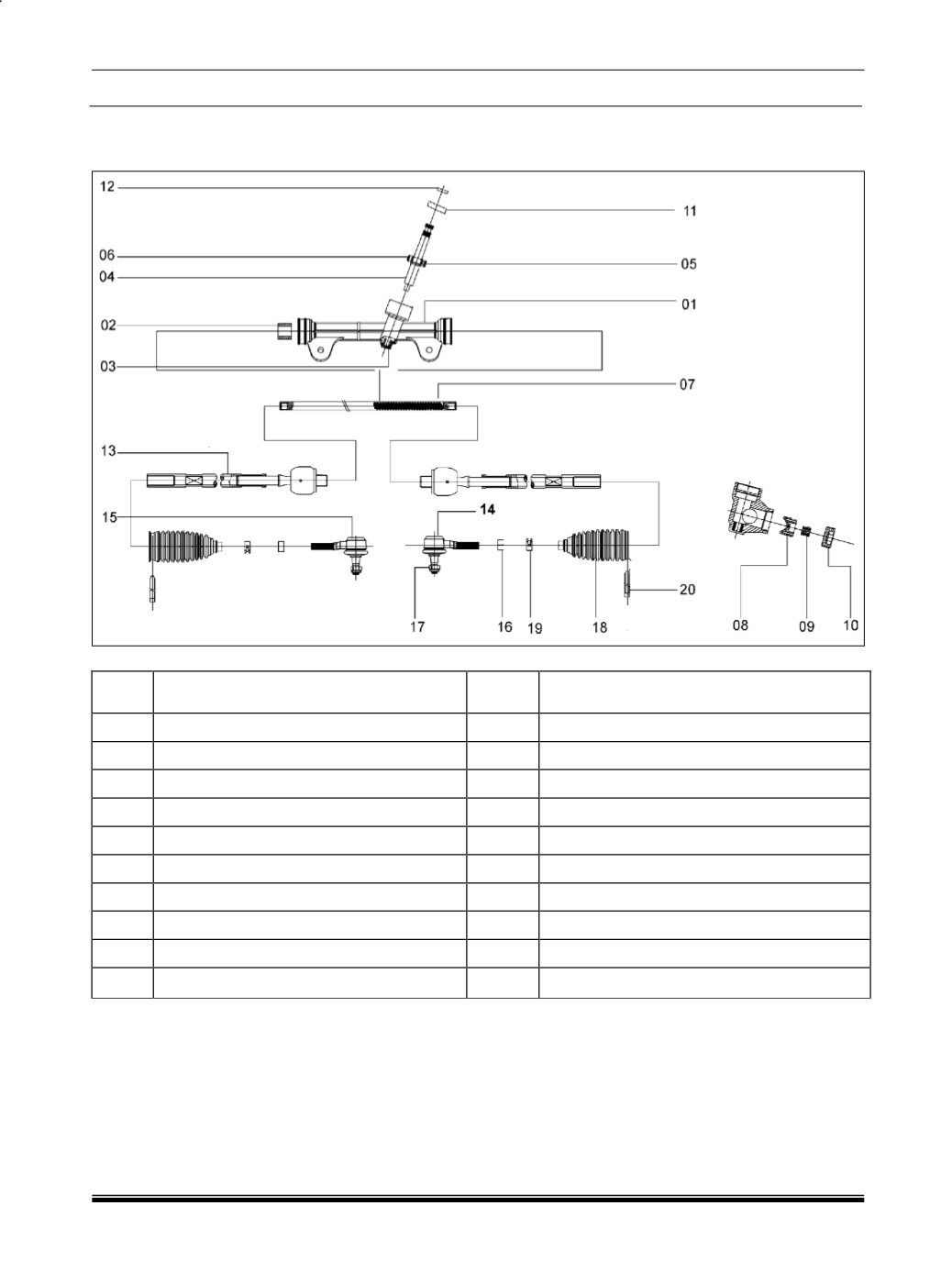

1.3.1. OVERHAULINGOF STEERING RACKAND PINIONASSEMBLY
Sr. No.
Description
Sr. No.
Description
01
Steering gear housing
11
Pinion cover
02
Steering rack bush
12
Oil seal
03
Bottom pinion bush
13
Inner ball joint assembly
04
Pinion
14
Outer ball joint assembly RH
05
Bearing
15
Outer ball joint assembly LH
06
Retainer ring
16
Lock nut
07
Steering rack tube
17
Nyloc nut
08
Yoke
18
Bellow
09
Yoke spring
19
Bellow clip
10
Yoke cover
20
Bellow strap
NOTE:
1. RPS assembly already removed from vehicle.
(Refer RPS assembly removal procedure)
2. Refer exploded view of Steering Rack and Pinion
Assembly while
overhauling procedure.
