STEERING
10
CAUTION:

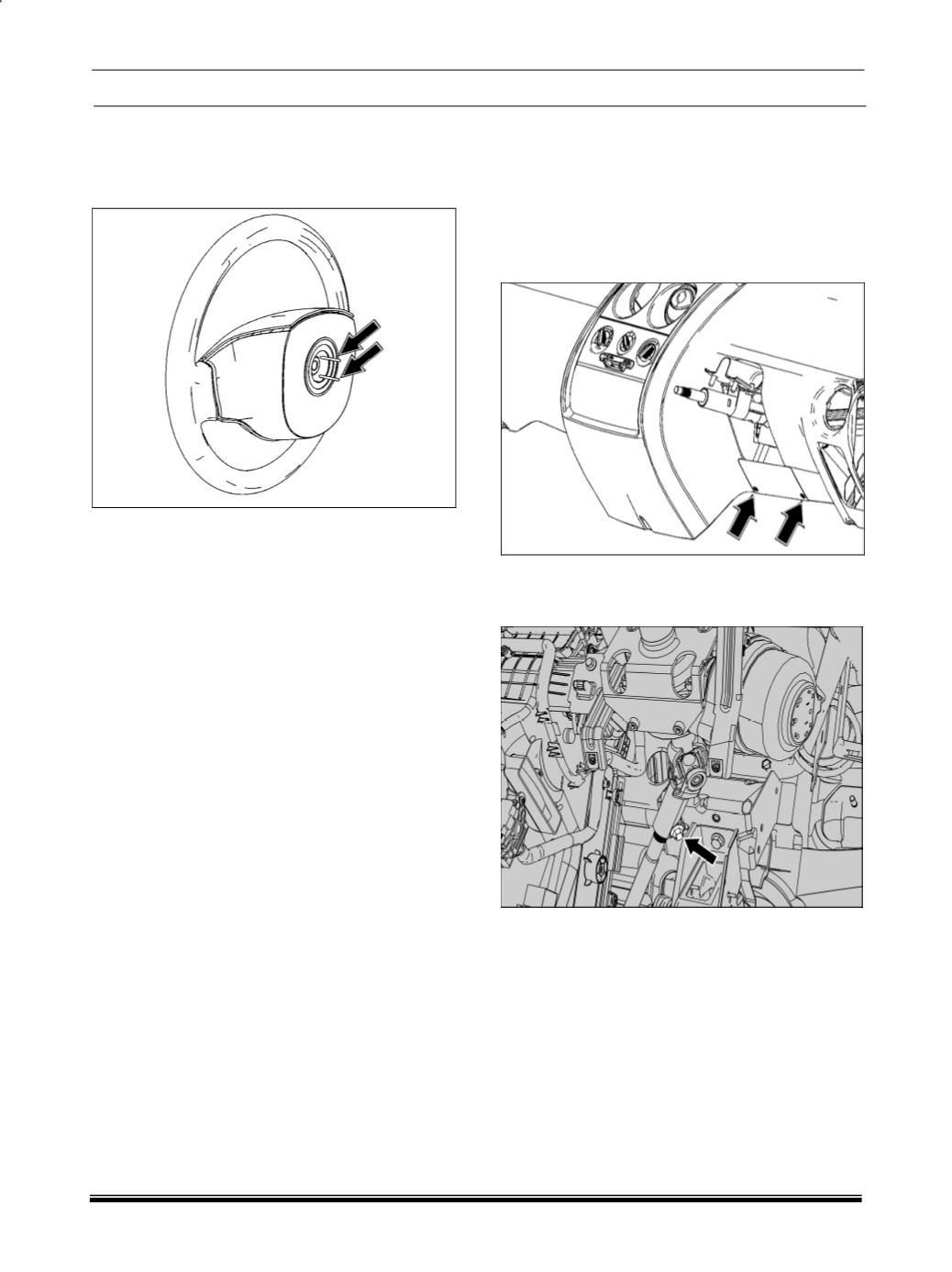

Care should be taken such that self cancellation lugs
do not get damaged (self cancellation lugs are shown
in below figurewith arrows).
INSPECTION:
Check for any damage to self cancellation lugs, if
found, replace complete steering wheel
INSTALLATION:
1. Align the marks made on the steering wheel and
the shaft. Install steering wheel on steering shaft
2. Tighten the steering wheel nut to the specified
torque.
Tightening torque (Steering wheel nut) = 4 -5 Kg-m
3. Fit horn pad (Press fit type).
4. Connect battery.
1.2.3.2 STEERING COLUMN REMOVAL
1. Disconnect the connection of battery.
2. Remove steering wheel (
Refer Steering wheel
removal procedure).
3. Remove combi switch assembly (
Refer Electrical
section
).
)
4. Remove two screw of nacelle bottom cover.
5. Loosen the universal joint bolt ((intermediate
shaft side) between steering column & intermedi-
ate shaft.
