BRAKE SYSTEM

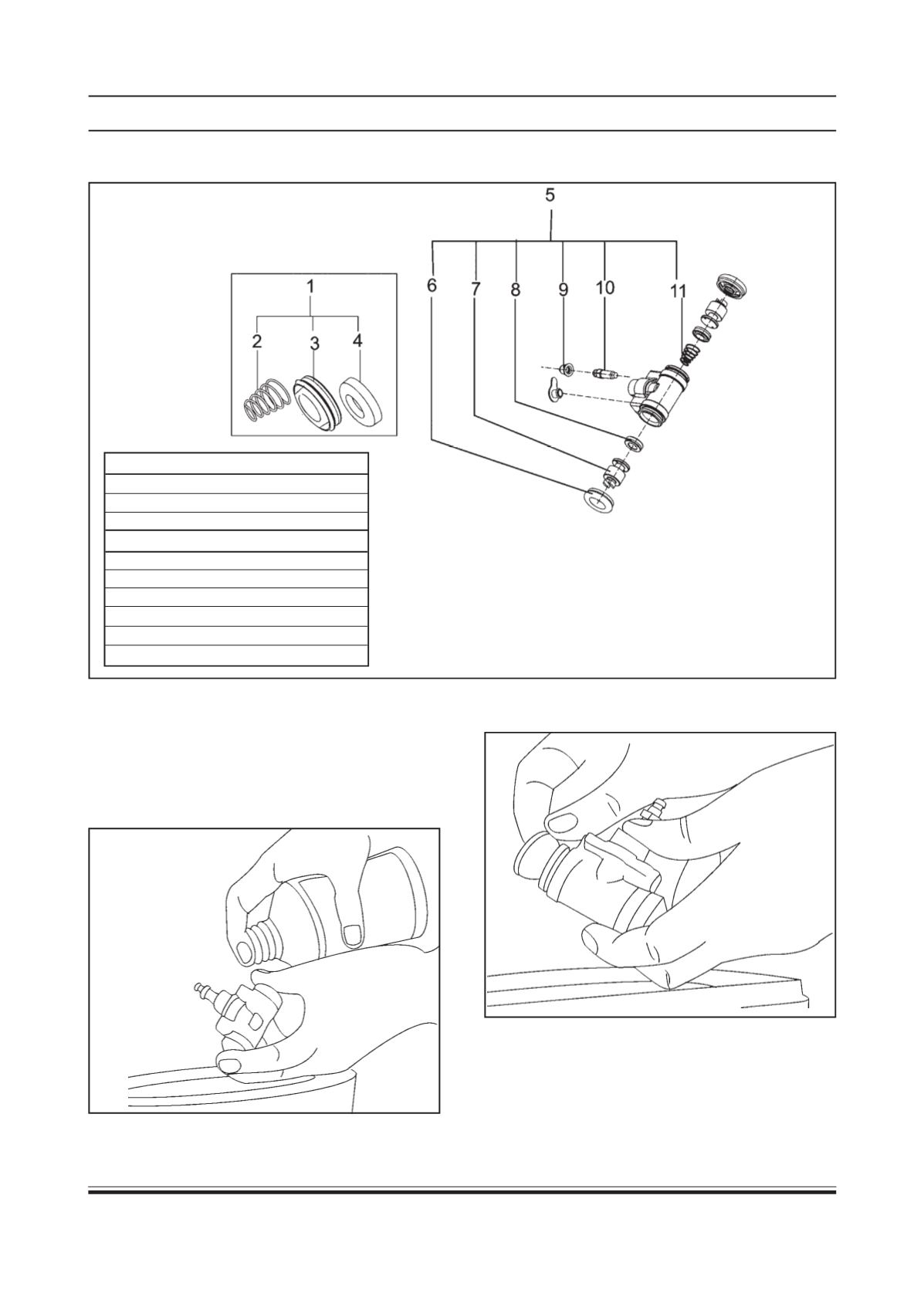

OVERHAULING OF WHEEL CYLINDER ASSEMBLY.
Disassembly
1. Clean the wheel cylinder assembly from out side
with fresh brake fluid.
2. Remove wheel cylinder boot. (3 or 10)
NOTE:
While overhaulingwheel cylinder assembly, refer above
exploded view for better understanding of components.
1 Wheel Cylinder Minor Kit
2 Spring
3 Boot
4 Seal
5 Wheel Cylinder Major Kit
6 Boot
7 Piston
8 Seal
9 Bleeder cap
10 Bleeder screw
11 Spring
