NANO ePAS

522

BRAKE SYSTEM

FRONT BRAKE SHOES

Removal :

1. Removewheel(s). (Refer wheel removal procedure/

Wheels and tires group)

2. Remove front brake drum. (Refer Front BrakeDrum

removal procedure)

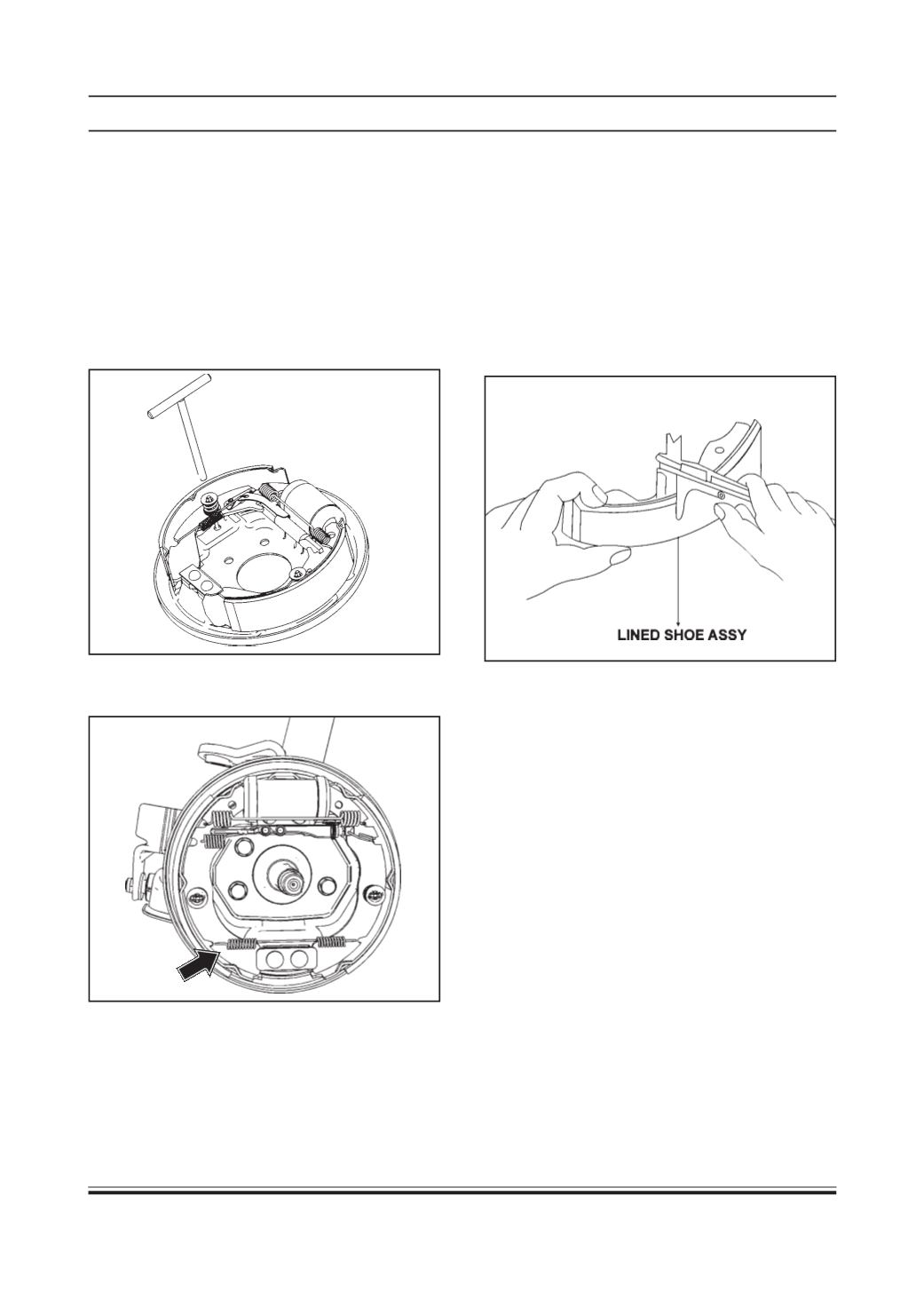

3. Push brake shoe pin with the help of special tool

(Part No. 2834 5890 42 01) and turn the shoe pin

to remove from shoe hold down spring.

4. Remove lower shoe return spring and take out

brake shoe assembly.

CAUTION:

Ensure that, edges of brake shoes do not damage

wheel cylinder dust covers.

Inspection :

1. Inspect all parts for wear or damage. Use a wire

brush to remove any corrosion, take care not to

damage wheel cylinder covers.

2. Check condition of return springs and renew if

necessary.

3. Check brake linings as shown in figure and

replace brake shoes if found below specified.

(Refer MAINTENANCE, INSPECTION AND

ADJUSTMENT for brake shoe service limit)
