BRAKE SYSTEM
493
BRAKES

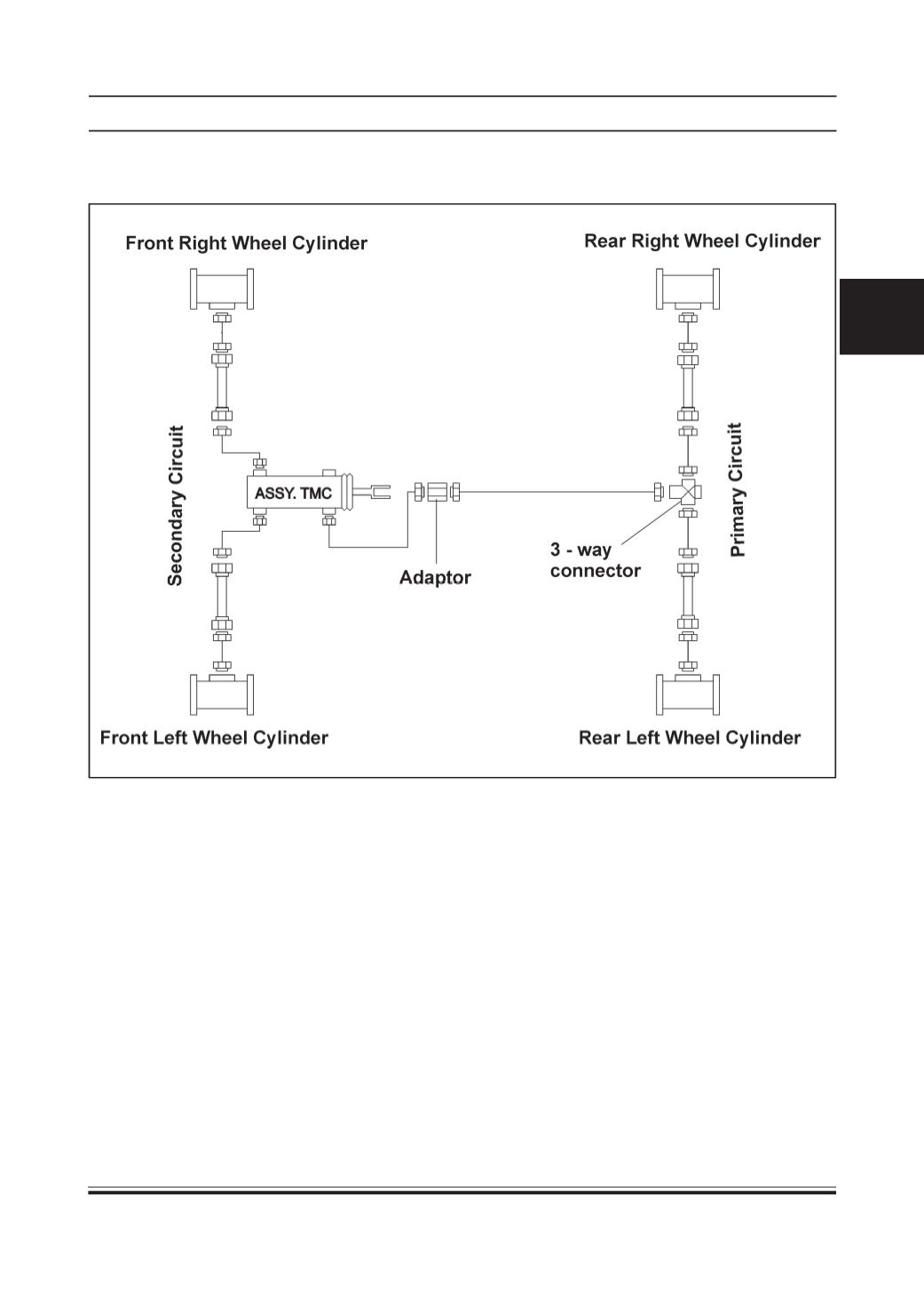

SCHEMATIC OF BRAKE HYDRAULIC CIRCUIT
a.) Non VacuumBooster
Operation:
When the brake pedal is depressed, hydraulic pressure
is developed in TandemMaster Cylinder (TMC), which
is used to actuate the brake drum assembly (two in
front and two in rear).
The brake pipes are connected from TMC to each
wheel cylinder. They make two independent circuits.
The primary circuit connects rear left and rear right
brakes through a 3-way connector whereas the
secondary circuit connects the front right and front
left brakes.
