SUSPENSION SYSTEM
457
SUSPENSION
COIL SPRING
NOTE:
Refer Exploded view of Rear Suspension
Componentsfor removal and installation process.
Removal
1. Remove wheel(s) (Refer wheel removal procedure/
Wheels and Tires group)
2. Raise the vehicle on two post lift.

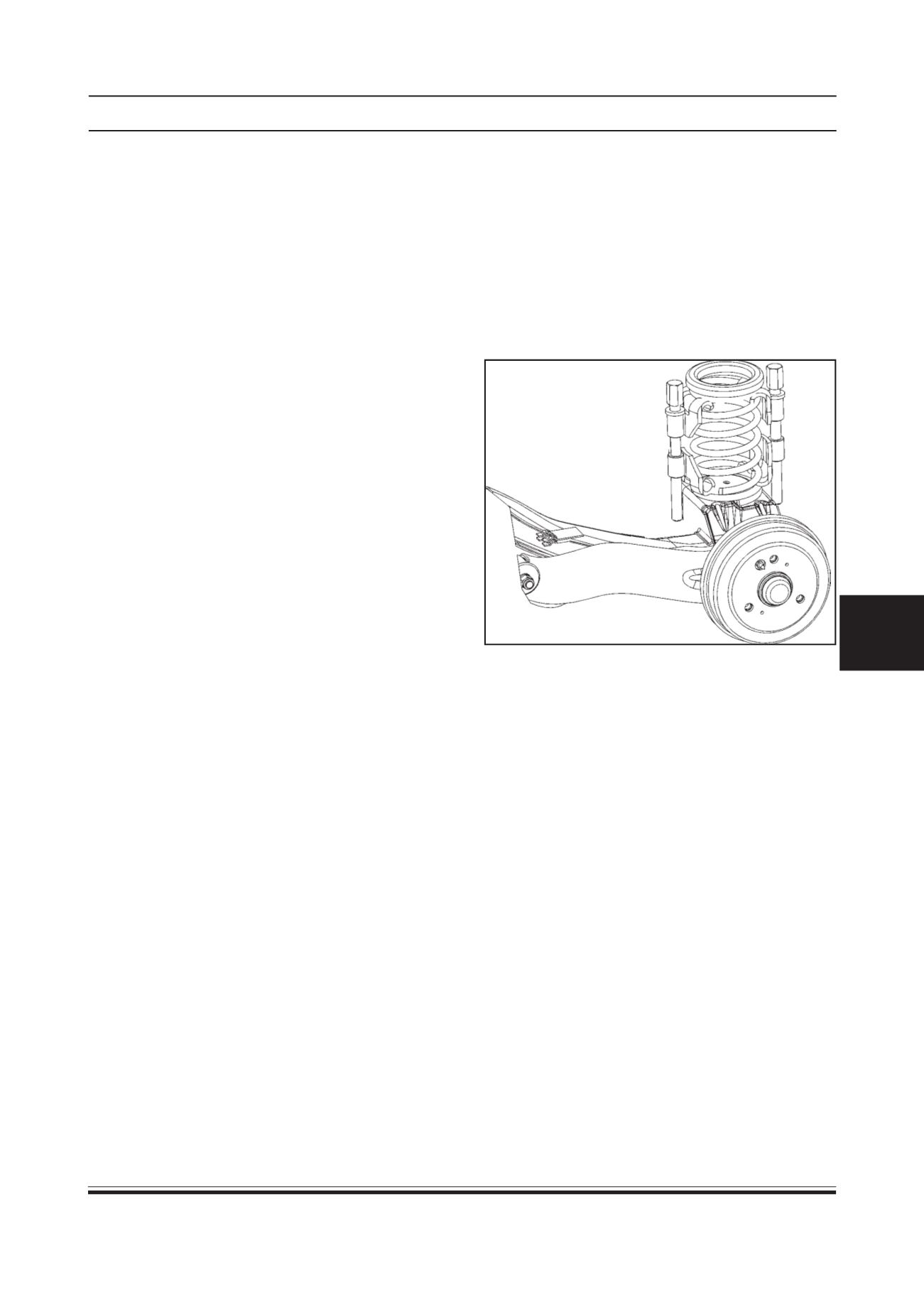

3. Remove coil spring using coil spring compressor
(Part No. 283458903203).
Inspection
1. Inspect coil spring for cracks, free length,
deformation or damage. Replace if found defective.
1. Align the shock absorber (05) and tighten shock
absorber - upper mounting bolt (11) to specified
torque.
TIGHTENING TORQUE FOR SHOCK ABSORBER UPPER
MOUNTING BOLT = 3.5 - 4 kg-m
2. Lift the support up (by lowering hoist) in such a
way that shock absorber - lower mounting bolt aligns
with semi trailing arm frame.
3. Hand tighten shock absorber lower mounting bolt.
4. Remove the support and tighten shock absorber -
lower mounting bolt (07) to specified torque in non-
loaded condition.
TIGHTENING TORQUE FOR SHOCK ABSORBER LOWER
MOUNTING BOLT = 3.5 - 4 kg-m
5. Mount wheel(s) and tighten wheel bolts to specified
torque.
TIGHTENING TORQUE FOR WHEEL BOLTS = 8 - 8.3 Kg-m
