DRIVETRAIN
4.2.2 OVERHAUL

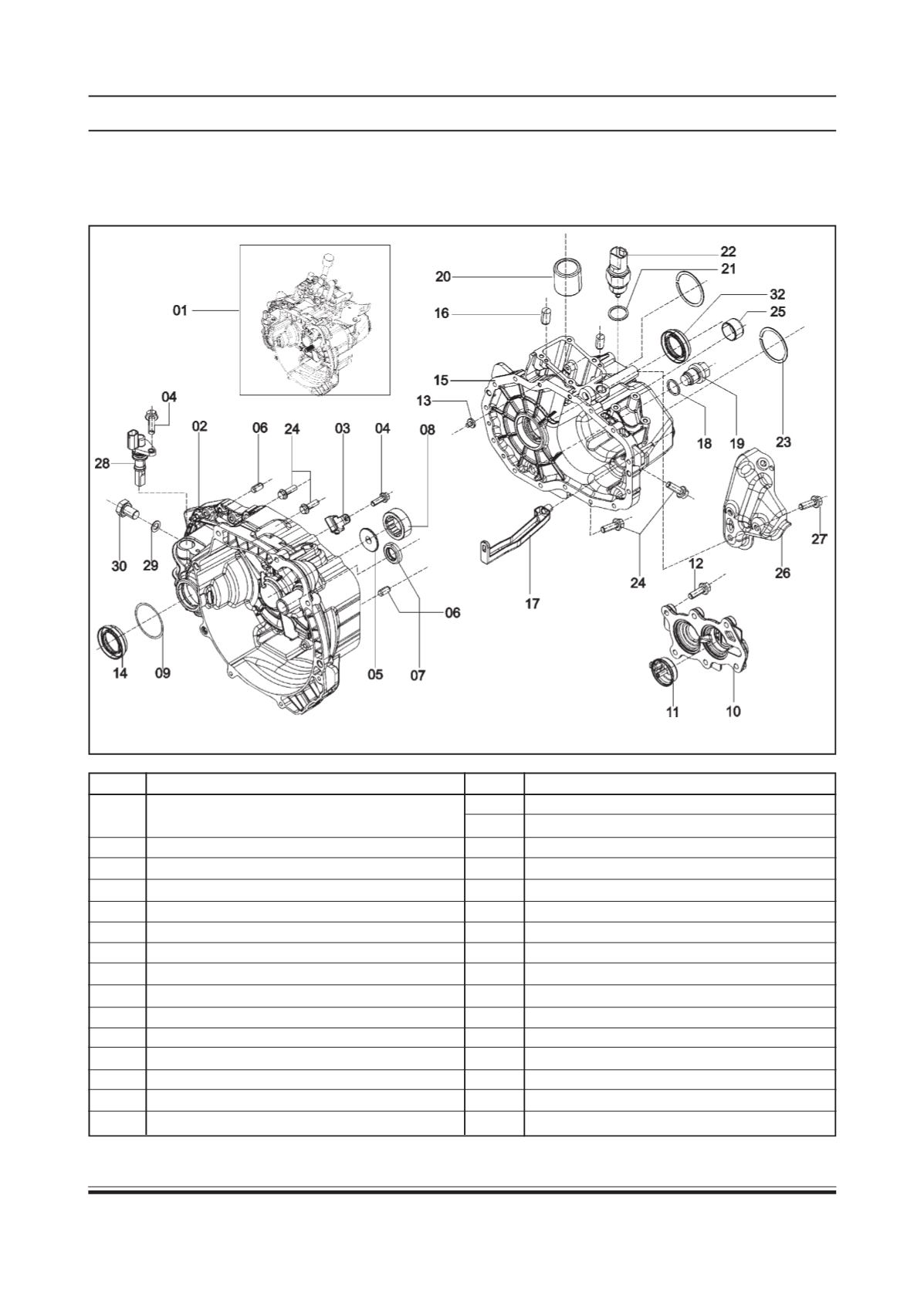

EXPLOADED VIEWS
A. TRANSAXLE HOUSING
SR NO. DESCRIPTION
01 ASSEMBLY TA59 PETROL
(Consists of all parts in the illustration)
02 FRONT HALF HOUSING
03 OIL COLLECTOR FRONT HALF
04 HEX FL SCREWM6X12 TS17130-8.8- SS8451-8C
05 CYL. ROLLER BEARING-OUTER RACE (LAY SHAFT)
06 CYL. PIN (HSG. FRT. HALF TO HSG. REAR HALF)
07 OIL SEAL INPUT SHAFT
08 OIL COLLECTOR
09 SHIM - DIFFERENTIAL (SELECTIVE)
10 REAR COVER (3.3 THK.)
11 OIL COLLECTOR (REAR COVER)
12 HEX FL BOLT M8X25 TS17130-8.8- SS8451S2-Y
13 PIN (INTERLOCK)
14 & 32 OIL SEAL - DRIVE SHAFT
15 HOUSING REAR HALF
SR NO. DESCRIPTION
16 CYL PIN 6m6X12 IS 2393
17 OIL CHANNEL (REAR HALF)
18 SEALING WASHER 16X20 IS3175 CU
19 MAGNETIC DRAIN PLUG
20 NEEDLE BEARING
21 SEALING WASHER 18X22 IS3175 AL
22 REVERSE LAMP SWITCH
23 SNAP RING
24 HEX FL BOLTM8X40 TS17130-8.8-SS8451- 8C
25 CAP SHIFTER SHAFT
26 ASSEMBLY B MOUNTING BRACKET
27 HEX FL SCR M10X25 TS17130-8.8-SS8451S2-Y
28 VEHICLE SPEED SENSOR OFFER
29 HEX FL SCR M6X12 TS17130-8.8-SS8451- 8C
30 SEALING WASHER 8X14 IS3175 CU
31 HEX SCREW M8X1X12 IS13725 8.8 SS8451-8C
